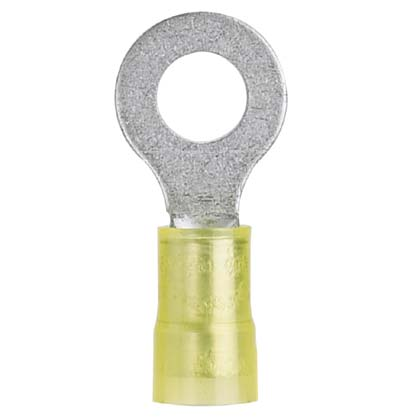

Pan-Term® PN10-14R-D Ring Terminal, Yellow, Nylon, 10-12 AWG, 1/4" Stud, PK500

RING TERM #12-10 1/4STUD

PANPN1014RD PN10-14R-D 74983800353
0.59 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Term® PN10-14R-D Ring Terminal, Yellow, Nylon, 10-12 AWG, 1/4" Stud, PK500-1
  • Country of Origin: Mexico
  • Material: Copper
  • Max. Operating Temperature: 105 °C, 221 °F
  • Overall Length: 1.21 in, 30.7 mm
  • Tongue Thickness: 0.04 in, 1 mm
  • Tongue Width: 0.52 in, 13.2 mm
  • Type: Ring Terminal
  • Width: 0.52 in, 13.2 mm
The PN10-14R-D Pan-Term® Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
QTY
  • Product Description
  • Features
  • Specifications
The PN10-14R-D Pan-Term® Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
  • Standards and Certifications
    • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-157)
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Barrel Type : Grip Sleeve
    • Maximum Wire Size (AWG) : 10
    • Tongue Thickness (mm) : 1
    • Stud Hole Size (mm) : 6
    • Overall Width (mm) : 13.2
    • Sub Brand : Pan-Term®
    • Maximum Operating Temperature (°F) : 221
    • Overall Width (In.) : 0.52
    • Maximum Metric Conductor Size (mm²) : 6
    • Stud Size : 1/4"
    • Minimum Wire Size (AWG) : #12
    • Maximum Copper Conductor Size (AWG) : 10
    • Tongue Width (mm) : 13.2
    • Stud Hole Size (In.) : 1/4
    • Maximum Wire Insulation Diameter (In.) : 0.225
    • Maximum Wire Insulation Diameter (mm) : 5.7
    • Color Code : Yellow
    • Maximum Voltage (V) : 600
    • Maximum Operating Temperature (°C) : 105
    • Overall Length (In.) : 1.21
    • Tongue Thickness (In.) : 0.04
    • Product Type : Ring Terminal
    • Flammability Rating : UL94-HB
    • Minimum Copper Conductor Size (AWG) : #12
    • Tongue Width (In.) : 0.52
    • Insulation Material : Nylon
    • For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
    • Wire Strip Length (In.) : 9/32
    • Overall Length (mm) : 30.7
    • Maximum Voltage (kV) : 0.6
    • Wire Strip Length (mm) : 7.1
    • Minimum Metric Conductor Size (mm²) : 4
    • Finish/Coating : Tin-Plated
    • Base Material : Copper
    • Packaging Type : Box
  • Packaging Details
    • UPC : 07498380035
    • GTIN Package : 00074983800353
    • Standard Package Volume Ft3 : 0.0641
    • Standard Package Weight Pounds : 3.0500
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 8.1
    • Std Package Length MM : 205.74
    • Std Package Width In : 4.4
    • Std Package Width MM : 111.76
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 500
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983800353
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 500.0000
    • Pallet Quantity : 200,000
    • Pallet Volume : 0.000000
    • Pallet Weight : 1,220.0000
    • RoHS Compliant : Compliant
