Pan-Term® P8-10R-Q Ring Terminal

RING TERM #8 #10STUD

PANP810RQ P8-10R-Q 74983870783
2.50 / EA
http://schema.org/OutOfStock

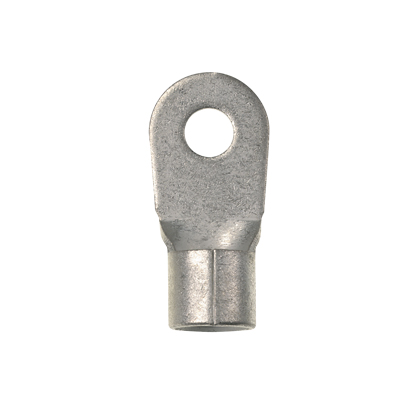

Mayer-DDS-Pan-Term® P8-10R-Q Ring Terminal-1
  • Country of Origin: Mexico
  • Material: Copper
  • Max. Operating Temperature: 150 °C, 302 °F
  • Outer Diameter: 0.27 in, 6.8 mm
  • Overall Length: 1.14 in, 29 mm
  • Tongue Length: 0.91 in, 23.1 mm
  • Tongue Thickness: 0.04 in, 1 mm
  • Tongue Width: 0.47 in, 11.9 mm
  • Type: Ring Terminal
  • Width: 0.47 in, 11.9 mm
Ring terminal, large wire, 8 AWG, #10 stud size, non-insulated, standard package.
QTY
  • Product Description
  • Features
  • Specifications
Ring terminal, large wire, 8 AWG, #10 stud size, non-insulated, standard package.
  • Prop 65
    • No
  • Standards and Certifications
    • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
  • Packaging Details
    • UPC : 07498387078
    • GTIN Package : 00074983870783
    • Standard Package Volume Ft3 : 0.0040
    • Standard Package Weight Pounds : 0.2200
    • Std Package Height In : 1.75
    • Std Package Height MM : 44.45
    • Std Package Length In : 3.6
    • Std Package Length MM : 91.44
    • Std Package Width In : 1.8
    • Std Package Width MM : 45.72
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 25
    • GTIN Carton : 50074983870788
    • Standard Carton Volume Ft3 : 0.0398
    • Standard Carton Weight Pounds : 2.2000
    • Std Carton Height In : 3.6
    • Std Carton Height MM : 91.44
    • Std Carton Length In : 9.55
    • Std Carton Length MM : 242.57
    • Std Carton Width In : 3.85
    • Std Carton Width MM : 97.79
    • Std Ctn Qty : 250
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983870783
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 125.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Tongue Thickness (In.) : 0.04
    • Overall Length (mm) : 29
    • Inside Diameter (mm) : 4.8
    • Overall Width (In.) : 0.47
    • Maximum Wire Size (AWG) : 8
    • Seam Type : Brazed
    • Stud Hole Size (mm) : 5
    • Outer Diameter (mm) : 6.8
    • Maximum Operating Temperature (°F) : 302
    • Product Type : Ring Terminal
    • Maximum Voltage (V) : 2000
    • Sub Brand : Pan-Term®
    • Tongue Thickness (mm) : 1
    • Overall Length (In.) : 1.14
    • Tongue Length (In.) : 0.91
    • Stud Hole Size (In.) : #10
    • Tongue Width (mm) : 11.9
    • Barrel Type : Standard
    • Stud Size : #10
    • Tongue Width (In.) : 0.47
    • Base Material : Copper
    • Finish/Coating : Tin-Plated
    • Wire Strip Length (In.) : 3/8
    • Insulation Material : Non-Insulated
    • Maximum Copper Conductor Size (AWG) : 8
    • Overall Width (mm) : 11.9
    • Maximum Operating Temperature (°C) : 150
    • Wire Strip Length (mm) : 9.5
    • Packaging Type : Bottle
    • Inside Diameter (In.) : 0.19
    • Tongue Length (mm) : 23.1
    • For Use With : CT-1701, CT-2600 (CD-2600-P8)
    • Minimum Wire Size (AWG) : #8
    • Minimum Copper Conductor Size (AWG) : #8
    • Outer Diameter (In.) : 0.27
