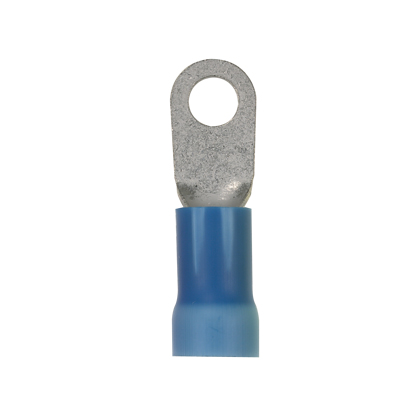

Pan-Term® PV6-38R-X Loose Piece Ring Terminal

RING TERM #6 3/8STUD

PANPV638RX PV6-38R-X 74983124442
5.69 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Term® PV6-38R-X Loose Piece Ring Terminal-1
  • Barrel Length: 0.72 in, 18.2 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Max. Operating Temperature: 105 °C, 221 °F
  • Outer Diameter: 0.34 in, 8.6 mm
  • Overall Length: 1.74 in, 44.1 mm
  • Tongue Length: 1.02 in, 25.9 mm
  • Tongue Thickness: 0.05 in, 1.1 mm
  • Tongue Width: 0.62 in, 15.7 mm
  • Type: Ring Terminal
  • Width: 0.62 in, 15.7 mm
Ring Terminal, large wire, 6 AWG, 3/8" stud size, vinyl insulated, standard package.
QTY
  • Product Description
  • Features
  • Specifications
Ring Terminal, large wire, 6 AWG, 3/8" stud size, vinyl insulated, standard package.
  • Prop 65
    • No
  • Standards and Certifications
    • Standards Met: cULus Listed 587H E52164
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Overall Width (In.) : 0.62
    • Packaging Type : Bottle
    • Overall Width (mm) : 15.7
    • Product Type : Ring Terminal
    • Barrel Length (In.) : 0.72
    • Outer Diameter (mm) : 8.6
    • Overall Length (In.) : 1.74
    • Outer Diameter (In.) : 0.34
    • Stud Hole Size (mm) : 10
    • Insulation Diameter (In.) : 0.34
    • Base Material : Copper
    • Finish/Coating : Tin-Plated
    • Tongue Width (In.) : 0.62
    • Tongue Thickness (mm) : 1.1
    • Flammability Rating : UL94V-0
    • Sub Brand : Pan-Term®
    • Minimum Copper Conductor Size (AWG) : #6
    • Maximum Wire Insulation Diameter (mm) : 8.6
    • Maximum Wire Insulation Diameter (In.) : 0.34
    • Maximum Voltage (V) : 600
    • Color Code : Blue
    • Barrel Type : Funnel Entry
    • Maximum Voltage (kV) : 0.6
    • Wire Strip Length (mm) : 11.1
    • Insulation Diameter (mm) : 8.6
    • Wire Strip Length (In.) : 7/16
    • Stud Size : 3/8"
    • Stud Hole Size (In.) : 3/8
    • Overall Length (mm) : 44.1
    • Barrel Length (mm) : 18.2
    • For Use With : CT-720 (CD-720PV8-2); CT-2600 (CD-2600-PV6)
    • Tongue Length (mm) : 25.9
    • Minimum Wire Size (AWG) : #6
    • Tongue Thickness (In.) : 0.05
    • Tongue Length (In.) : 1.02
    • Maximum Copper Conductor Size (AWG) : 6
    • Maximum Operating Temperature (°F) : 221
    • Maximum Operating Temperature (°C) : 105
    • Insulation Material : Vinyl
    • Maximum Wire Size (AWG) : 6
    • Tongue Width (mm) : 15.7
  • Packaging Details
    • UPC : 07498312444
    • GTIN Package : 00074983124442
    • Standard Package Volume Ft3 : 0.0075
    • Standard Package Weight Pounds : 0.1350
    • Std Package Height In : 1.8
    • Std Package Height MM : 45.72
    • Std Package Length In : 3.6
    • Std Package Length MM : 91.44
    • Std Package Width In : 1.8
    • Std Package Width MM : 45.72
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • GTIN Carton : 50074983124447
    • Standard Carton Volume Ft3 : 0.0747
    • Standard Carton Weight Pounds : 1.3500
    • Std Carton Height In : 3.7
    • Std Carton Height MM : 93.98
    • Std Carton Length In : 9.5
    • Std Carton Length MM : 241.3
    • Std Carton Width In : 3.95
    • Std Carton Width MM : 100.33
    • Std Ctn Qty : 100
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983124442
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 50.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
