Pan-Term® PNF18-10R-C Ring Terminal

RING TERM #22-18 #10STUD

PANPNF1810RC PNF18-10R-C 74983513192
1.96 / EA
http://schema.org/OutOfStock

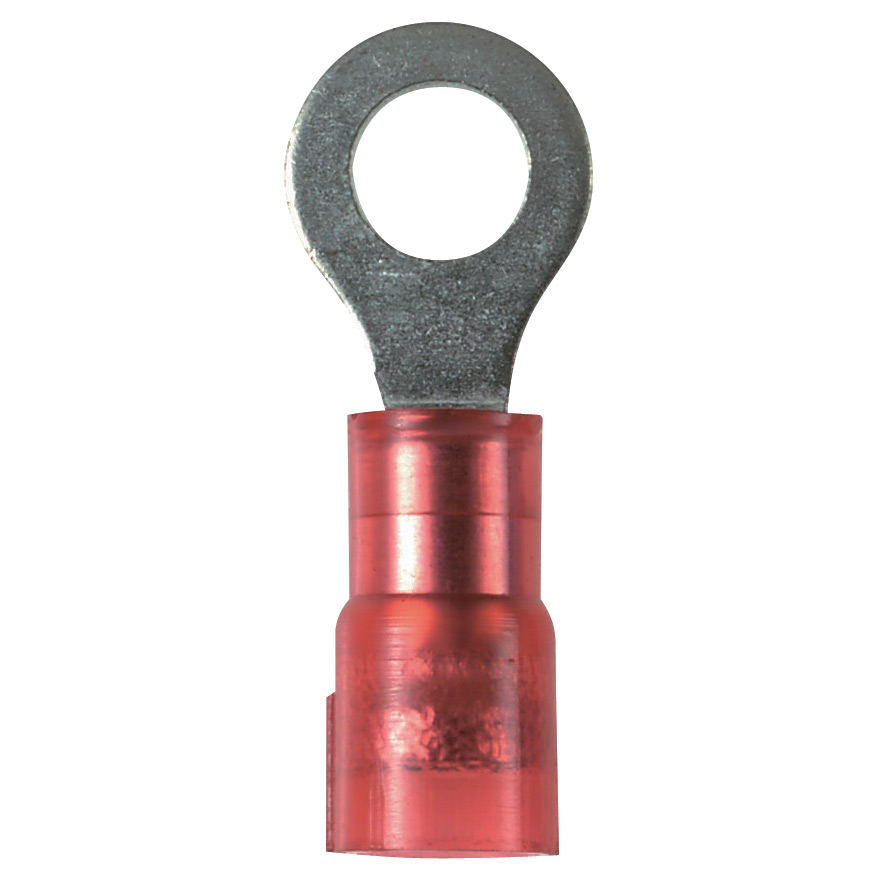

Mayer-DDS-Pan-Term® PNF18-10R-C Ring Terminal-1
  • Barrel Length: 0.43 in, 10.9 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Max. Operating Temperature: 105 °C, 221 °F
  • Min. Operating Temperature: 105 °C
  • Outer Diameter: 0.25 in, 6.4 mm
  • Overall Length: 0.86 in, 22.1 mm
  • Tongue Length: 0.43 in, 10.9 mm
  • Tongue Thickness: 0.03 in, 0.8 mm
  • Tongue Width: 0.32 in, 8.1 mm
  • Type: Ring Terminal
  • Width: 0.32 in, 8.1 mm
Ring Terminal, 22 – 18 AWG, #10 stud size, funnel entry, nylon insulated, standard package.
QTY
  • Product Description
  • Features
  • Specifications
Ring Terminal, 22 – 18 AWG, #10 stud size, funnel entry, nylon insulated, standard package.
  • Prop 65
    • No
  • Standards and Certifications
    • Standards Met: UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-103)
  • Packaging Details
    • UPC : 07498351319
    • GTIN Package : 00074983513192
    • Standard Package Volume Ft3 : 0.0074
    • Standard Package Weight Pounds : 0.4600
    • Std Package Height In : 1.75
    • Std Package Height MM : 44.45
    • Std Package Length In : 3.6
    • Std Package Length MM : 91.44
    • Std Package Width In : 1.75
    • Std Package Width MM : 44.45
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 100
    • GTIN Carton : 50074983513197
    • Standard Carton Volume Ft3 : 0.0368
    • Standard Carton Weight Pounds : 2.3000
    • Std Carton Height In : 3.65
    • Std Carton Height MM : 92.71
    • Std Carton Length In : 9.3
    • Std Carton Length MM : 236.22
    • Std Carton Width In : 2.7
    • Std Carton Width MM : 68.58
    • Std Ctn Qty : 500
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983513192
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : Y
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 100.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Overall Width (In.) : 0.32
    • Maximum Wire Size (AWG) : 18
    • CSA Temperature Rating (°C) : 221
    • Overall Length (mm) : 22.1
    • Tongue Length (mm) : 10.9
    • Tongue Thickness (mm) : 0.8
    • Minimum Wire Size (AWG) : #22
    • Minimum Wire Insulation Diameter (In.) : 0.14
    • Packaging Type : Bottle
    • Minimum Wire Insulation Diameter (mm) : 3.5
    • Finish/Coating : Tin-Plated
    • Stud Hole Size (In.) : #10
    • Tongue Width (mm) : 8.1
    • Tongue Width (In.) : 0.32
    • Overall Length (In.) : 0.86
    • Maximum Voltage (V) : 1000
    • Maximum Copper Conductor Size (AWG) : 18
    • Barrel Length (In.) : 0.43
    • Wire Strip Length (In.) : 7/32
    • Outer Diameter (In.) : 0.25
    • Insulation Material : Nylon
    • Insulation Diameter (In.) : 0.2
    • Insulation Diameter (mm) : 5.1
    • Maximum Wire Insulation Diameter (mm) : 3.5
    • Barrel Type : Grip Sleeve
    • Tongue Length (In.) : 0.43
    • Stud Size : #10
    • Maximum Operating Temperature (°C) : 105
    • Flammability Rating : UL94V-2/UL94-HB
    • Color Code : Red
    • Minimum Copper Conductor Size (AWG) : #22
    • For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
    • Stud Hole Size (mm) : 5
    • Outer Diameter (mm) : 6.4
    • Base Material : Copper
    • Barrel Length (mm) : 10.9
    • Sub Brand : Pan-Term®
    • Product Type : Ring Terminal
    • Maximum Operating Temperature (°F) : 221
    • Wire Strip Length (mm) : 5.6
    • Maximum Voltage (kV) : 1
    • Maximum Wire Insulation Diameter (In.) : 0.14
    • Minimum Operating Temperature (°C) : 105
    • Tongue Thickness (In.) : 0.03
    • Overall Width (mm) : 8.1
