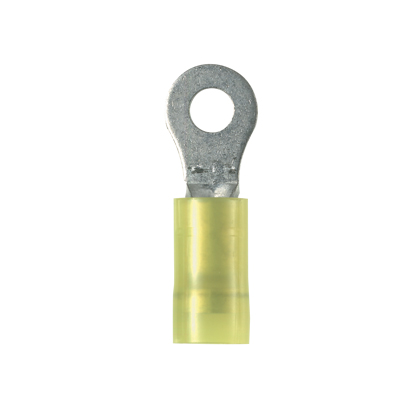

Pan-Term® PNF10-10R-L Loose Piece Ring Terminal

Name: Pan-Term® PNF10-10R-L Loose Piece Ring Terminal
Brand: PANDUIT
SKU: PANPNF1010RL
Price: 2.30 USD
Availability: OutOfStock

RING TERM #12-10 #10STUD

PANPNF1010RL PNF10-10R-L 74983513338

2.30 / EA

http://schema.org/OutOfStock

Ring Terminal, 12 – 10 AWG, #10 stud size, funnel entry, nylon insulated, standard package.

QTY

Ring Terminal, 12 – 10 AWG, #10 stud size, funnel entry, nylon insulated, standard package.

Standards Met: UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-112)

Any Reason Not to Sell : N
Product Segment : IEI
Minimum Wire Insulation Diameter (mm) : 5.7
Maximum Wire Size (AWG) : 10
Tongue Width (mm) : 5.8
Maximum Copper Conductor Size (AWG) : 10
Wire Strip Length (In.) : 9/32
Packaging Type : Bottle
Insulation Diameter (In.) : 0.23
Maximum Wire Insulation Diameter (mm) : 3.7
Insulation Material : Nylon
For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Maximum Voltage (V) : 1000
Product Type : Ring Terminal
Tongue Width (In.) : 0.23
Overall Width (mm) : 9.7
Color Code : Yellow
Stud Hole Size (mm) : 5
Minimum Copper Conductor Size (AWG) : #12
Finish/Coating : Tin-Plated
Minimum Wire Insulation Diameter (In.) : 0.23
Overall Length (In.) : 1.06
Flammability Rating : UL94V-2/UL94-HB
Overall Length (mm) : 26.9
Stud Size : #10
Wire Strip Length (mm) : 7.1
CSA Temperature Rating (°C) : 221
Base Material : Copper
Maximum Wire Insulation Diameter (In.) : 0.15
Insulation Diameter (mm) : 5.7
Sub Brand : Pan-Term®
Overall Width (In.) : 0.38
Stud Hole Size (In.) : #10
Minimum Wire Size (AWG) : #12
Barrel Type : Grip Sleeve
