Reel Smart™ PV10-56RB-2K Ring Terminal, Yellow, Vinyl, 10-12 AWG, 5/16" Stud

RINGTERM VYL 12 10AWG 5/16STU

PANPV1056RB2K PV10-56RB-2K 74983803637
0.48 / EA
http://schema.org/OutOfStock

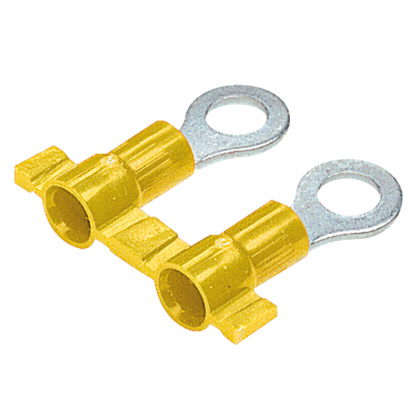

Mayer-DDS-Reel Smart™ PV10-56RB-2K Ring Terminal, Yellow, Vinyl, 10-12 AWG, 5/16" Stud-1
  • Country of Origin: Mexico
  • Material: Copper
  • Max. Operating Temperature: 105 °C, 221 °F
  • Overall Length: 1.2 in, 30.5 mm
  • Tongue Thickness: 0.03 in, 0.8 mm
  • Tongue Width: 0.52 in, 13.2 mm
  • Type: Ring Terminal
  • Width: 0.52 in, 13.2 mm
The PV10-56RB-2K Reel Smart™ Terminal is a continuously molded and vinyl fully insulated ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
QTY
  • Product Description
  • Features
  • Specifications
The PV10-56RB-2K Reel Smart™ Terminal is a continuously molded and vinyl fully insulated ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
  • Standards and Certifications
    • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
  • Packaging Details
    • UPC : 07498380363
    • GTIN Package : 00074983803637
    • Standard Package Volume Ft3 : 0.9208
    • Standard Package Weight Pounds : 12.6000
    • Std Package Height In : 2.4
    • Std Package Height MM : 60.96
    • Std Package Length In : 26.1
    • Std Package Length MM : 662.94
    • Std Package Width In : 25.4
    • Std Package Width MM : 645.16
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 2000
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983803637
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 2,000.0000
    • Pallet Quantity : 32,000
    • Pallet Volume : 0.000000
    • Pallet Weight : 201.6000
    • RoHS Compliant : Compliant
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Sub Brand : Reel Smart™
    • Minimum Copper Conductor Size (AWG) : #12
    • Flammability Rating : UL94V-0
    • Insulation Material : Vinyl
    • Color Code : Yellow
    • Maximum Copper Conductor Size (AWG) : 10
    • Wire Strip Length (mm) : 8.7
    • Base Material : Copper
    • Maximum Wire Size (AWG) : 10
    • Stud Hole Size (mm) : 8
    • Overall Length (In.) : 1.2
    • Maximum Operating Temperature (°F) : 221
    • Stud Hole Size (In.) : 5/16
    • Maximum Voltage (kV) : 0.6
    • Overall Width (mm) : 13.2
    • Product Type : Ring Terminal
    • Minimum Wire Size (AWG) : #12
    • Stud Size : 5/16"
    • Tongue Width (mm) : 13.2
    • Maximum Wire Insulation Diameter (mm) : 5.8
    • Maximum Metric Conductor Size (mm²) : 6
    • Maximum Wire Insulation Diameter (In.) : 0.23
    • Tongue Width (In.) : 0.52
    • Barrel Type : Funnel Entry
    • Minimum Metric Conductor Size (mm²) : 4
    • Finish/Coating : Tin-Plated
    • Maximum Operating Temperature (°C) : 105
    • Wire Strip Length (In.) : 11/32
    • Overall Width (In.) : 0.52
    • Tongue Thickness (In.) : 0.03
    • Tongue Thickness (mm) : 0.8
    • For Use With : Crimp press with CA9 (CD9-3B) or CA-800EZ (CD-800-3) applicator
    • Overall Length (mm) : 30.5
    • Maximum Voltage (V) : 600
