3M™ Scotchlok™ Ring Vinyl Insulated, 50/bottle, MV10-10RX, standard-style ring tongue fits around the stud, 500/Case

RING #10 STUD VINYL INSULATED

MMMMV1010RX MV10-10RX 51128587584
1.23 / Each
http://schema.org/OutOfStock

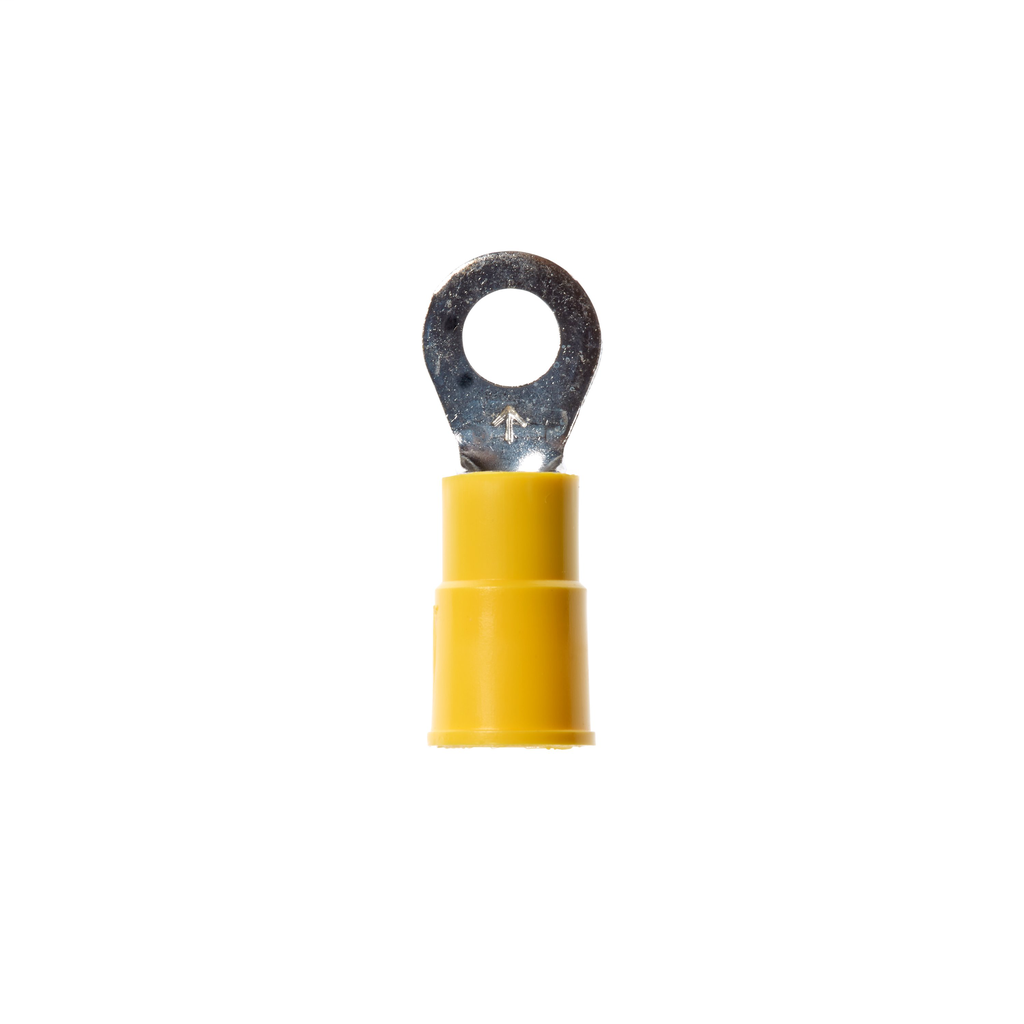

Mayer-DDS-3M™ Scotchlok™ Ring Vinyl Insulated, 50/bottle, MV10-10RX, standard-style ring tongue fits around the stud, 500/Case-1
  • Country of Origin: USA
  • Max. Operating Temperature: 105.0 °C
  • Overall Length: 1.03 in, 26.16 mm
  • Width: 0.38 in, 9.65 mm

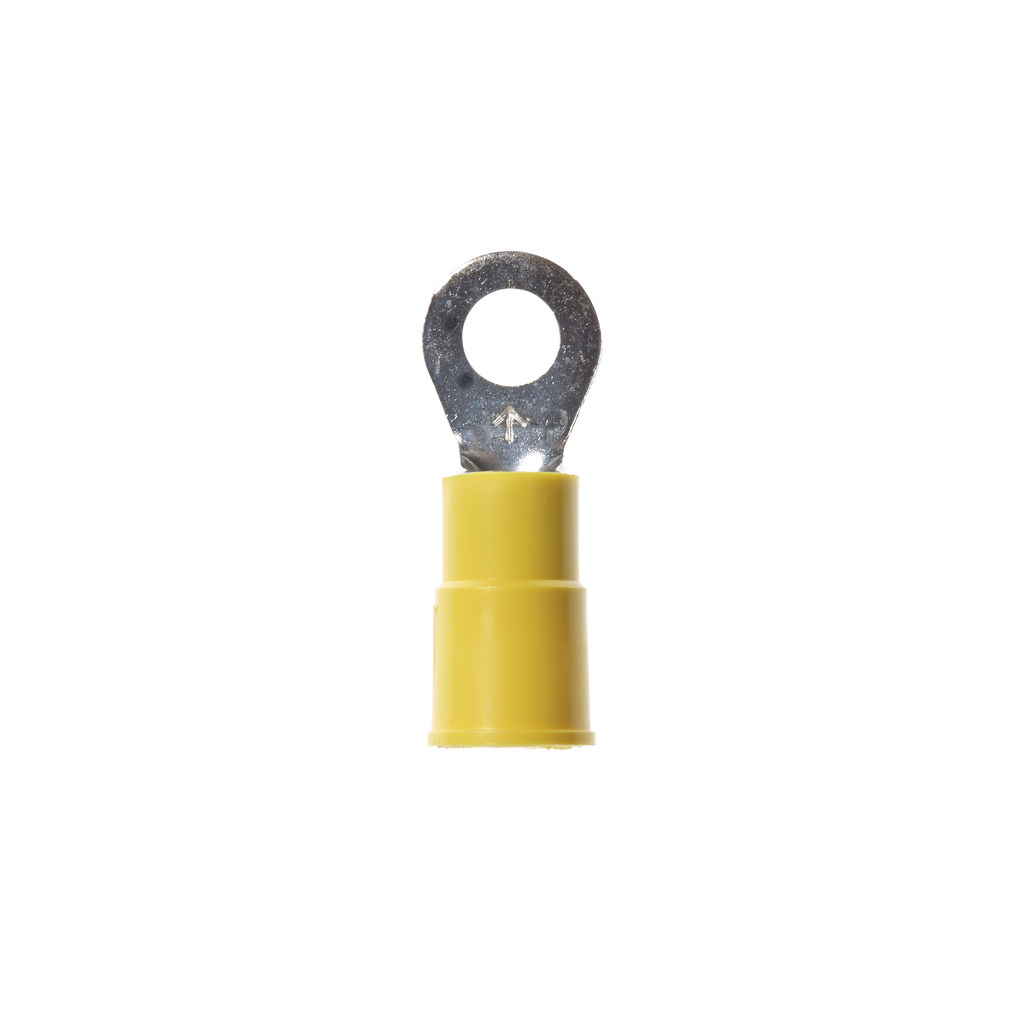

When your job depends on a secure fit, you'll want the 3M Scotchlok Color-Coded Ring Tongue Terminal. This reliable, electrolytic copper terminal has a tin-plated, corrosion-resistant finish and a brazed-seam barrel with vinyl insulation. The yellow terminal can withstand temperatures of -40 to 221 degrees F (-40 to 105 degrees C).
QTY
  • Product Description
  • Features
  • Specifications
When your job depends on a secure fit, you'll want the 3M Scotchlok Color-Coded Ring Tongue Terminal. This reliable, electrolytic copper terminal has a tin-plated, corrosion-resistant finish and a brazed-seam barrel with vinyl insulation. The yellow terminal can withstand temperatures of -40 to 221 degrees F (-40 to 105 degrees C).
  • Features
    • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
    • Standard-style ring tongue fits around the stud
    • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
    • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
    • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
    • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Specifications
    • Country of Origin : United States
    • RDS URL (Regulatory Data Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xm82en8mxMv70k17zHvu9lxtD7xt1evSSSSSS-
    • AIS URL (Article Information Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xm82en8mxMv70k17zHvu9lxtD7xtBevSSSSSS-
    • ETIM Class 8.0 : EC001052
    • Insulation Material : Vinyl
    • Maximum Conductor Size (Imperial) : 10 AWG
    • Maximum Conductor Size (Metric) : 5.26
    • Minimum Conductor Size (Imperial) : 12 AWG
    • Minimum Conductor Size (Metric) : 3.31 mm²
    • Connection Width (Imperial) : 0.19 in
    • Connection Width (Metric) : 4.826 mm
    • Maximum Operating Temperature (Celsius) : 105.0 Degree
    • Overall Length (Imperial) : 1.03 in
    • Overall Length (Metric) : 26.16 mm
    • Overall Width (Imperial) : 0.38 in
    • Overall Width (Metric) : 9.65 mm
    • Product Color : Yellow
    • Terminal Type : Ring
