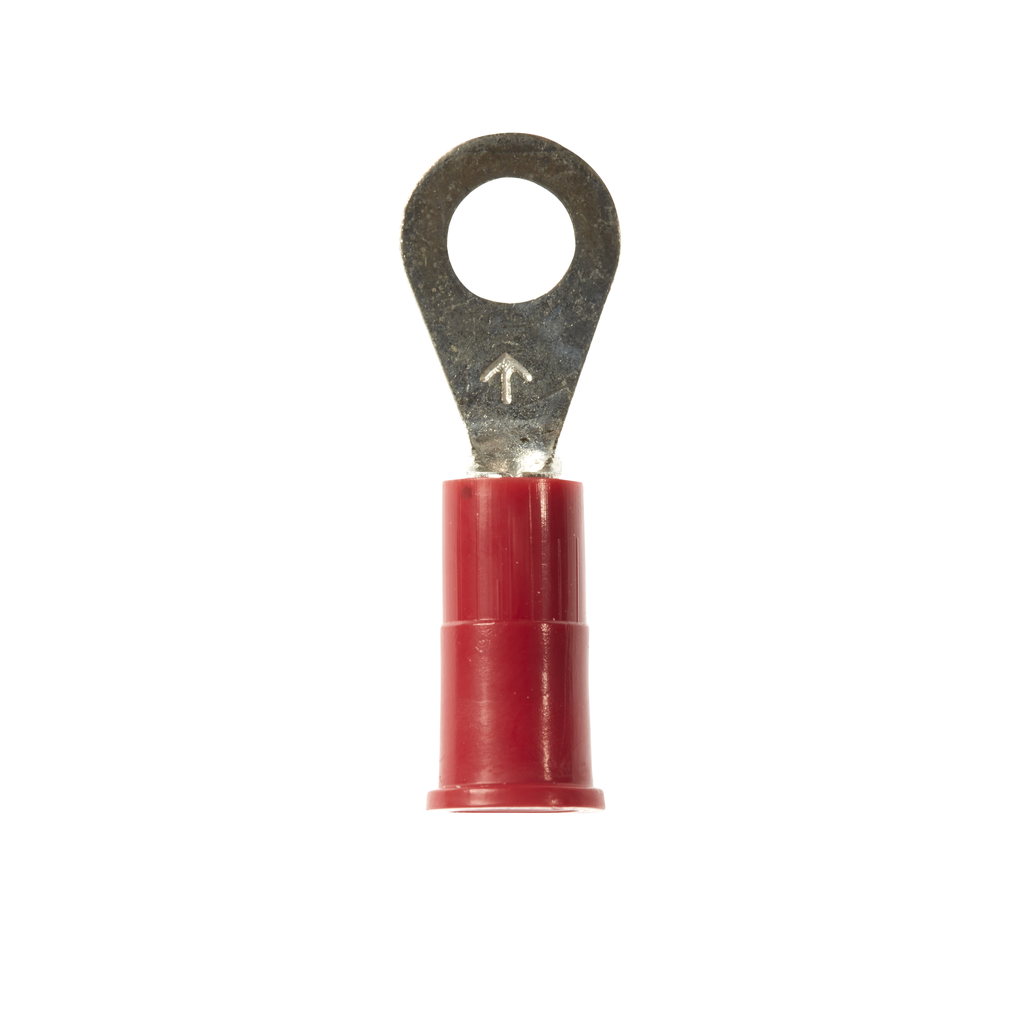

3M™ Scotchlok™ Color-Coded Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

• Features
• Red vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
• Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
• Standard-style ring tongue fits around the stud
• Stud size #8
• Accommodates wire sizes 22 to 18 AWG

• Packaging
• Package Length : 1.62500 in
• Package Height : 4.37500 in
• Package Weight : 0.3961 LBS
• Specifications
• Manufacturer Catalog Number : 7100008147
• Color Family (incorporate Product Color) : Red
• Connection Width (Imperial) : 0.164 in
• Connection Width (Metric) : 4.166 mm
• Maximum Conductor Size : 18 AWG
• Minimum Conductor Size : 22 AWG
• Overall Length (Imperial) : 0.93 in
• Overall Length (Metric) : 23.622 mm
• Overall Width (Imperial) : 0.31 in
• Overall Width (Metric) : 7.874 mm
• Terminal Type : Ring
