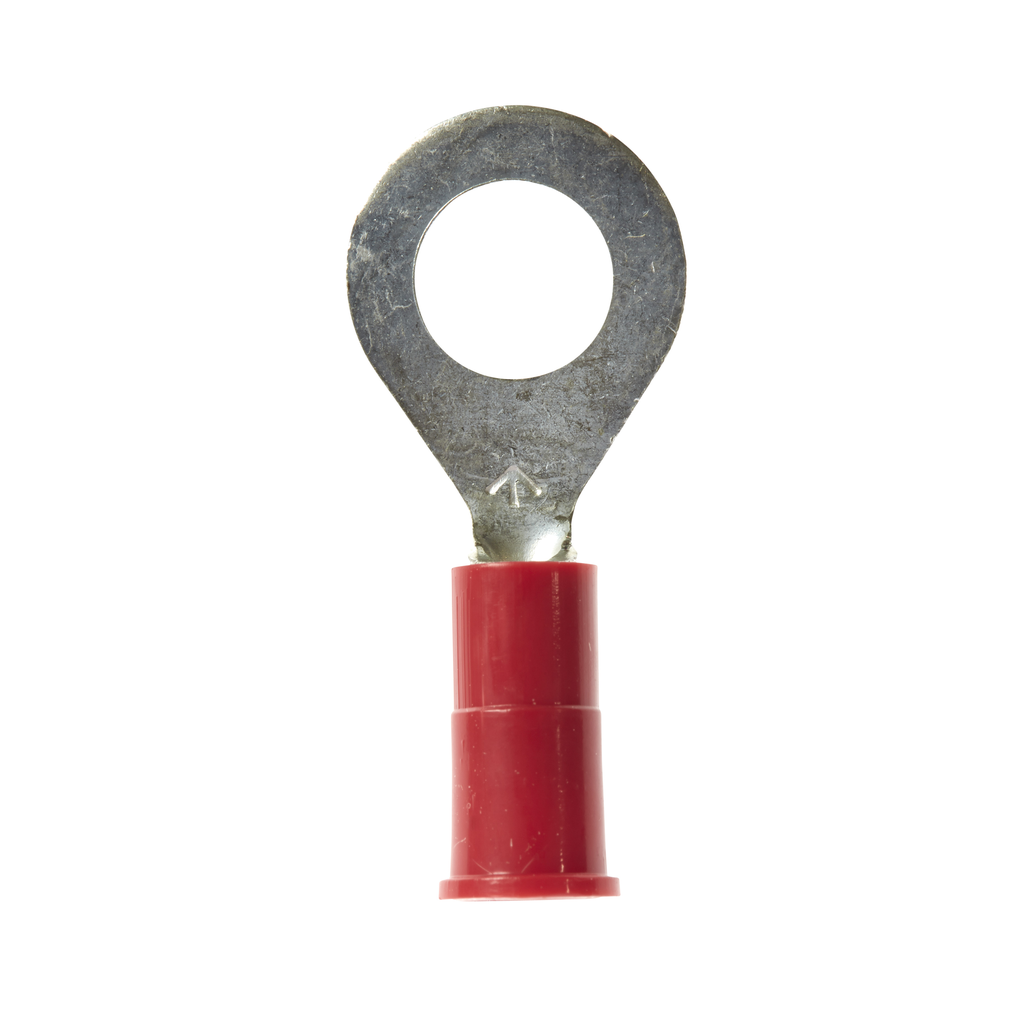

3M™ Highland™ Vinyl Insulated Ring Terminal RV18-6Q, AWG 22-18, 25/bag, 10 Bags/Case

RING VINYL INS HIGHLAND 25/BAG

MMMRV186Q RV18-6Q 51128600450
11.26 / Bag
http://schema.org/OutOfStock
Mayer-DDS-3M™ Highland™ Vinyl Insulated Ring Terminal RV18-6Q, AWG 22-18, 25/bag, 10 Bags/Case-1
  • Country of Origin: USA
  • Material: Plastic
  • Max. Operating Temperature: 105.0 °C, 221.0 °F
  • Overall Length: 0.8 in, 20.32 mm
  • Width: 0.25 in, 6.35 mm
When reliability and safety is key, go with the 3M Highland Ring Tongue Terminal. Built to last, this ring tongue is made of high-conductivity electrolytic copper with a tin-plated finish, so it won't corrode or scratch. Its vinyl-insulated, butted-seam barrel provides a great fit and stays strong in temperatures ranging from -40 to 221 degrees F (-40 to 105 degrees C).
QTY
  • Product Description
  • Features
  • Specifications
When reliability and safety is key, go with the 3M Highland Ring Tongue Terminal. Built to last, this ring tongue is made of high-conductivity electrolytic copper with a tin-plated finish, so it won't corrode or scratch. Its vinyl-insulated, butted-seam barrel provides a great fit and stays strong in temperatures ranging from -40 to 221 degrees F (-40 to 105 degrees C).
  • Features
    • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
    • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
    • Standard-style ring tongue fits around the stud
    • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
    • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
    • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Specifications
    • Country of Origin : United States
    • RDS URL (Regulatory Data Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xm821582B4v70k17zHvu9lxtD7xt1evSSSSSS-
    • AIS URL (Article Information Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xm821582B4v70k17zHvu9lxtD7xtBevSSSSSS-
    • ETIM Class 8.0 : EC001052
    • Insulation Material : Vinyl
    • Maximum Conductor Size (Imperial) : 18 AWG
    • Maximum Conductor Size (Metric) : 0.823
    • Minimum Conductor Size (Imperial) : 22 AWG
    • Minimum Conductor Size (Metric) : 0.326 mm²
    • Minimum Stud Diameter (Imperial) UOM : in
    • Minimum Stud Diameter (Metric) : 3.5 mm
    • Barrel Inside Diameter : 0.07 Inch
    • Barrel Length (Imperial) : 0.25 Inch
    • Barrel Length (Metric) : 6.35 mm
    • Barrel Style : Butted
    • Clearance (C) : 0.22 Inch
    • Dimension E : 0.67 Inch
    • Dimension E (Metric) : 17.02
    • Manufacturing Origin : USA
    • Material : Plastic
    • Maximum Insulation Outer Diameter (Imperial) : 0.145 in
    • Maximum Insulation Outer Diameter (Metric) : 3.7 mm
    • Maximum Insulation Outside Diameter : 0.145 in
    • Maximum Operating Temperature (Celsius) : 105.0 Degree
    • Maximum Operating Temperature (Fahrenheit) : 221.0 Degree
    • Maximum Recommended Voltage Rating : 600.0 V
    • Overall Length (Imperial) : 0.8 in
    • Overall Length (Metric) : 20.32 mm
    • Overall Width (Imperial) : 0.25 in
    • Overall Width (Metric) : 6.35 mm
    • Packaging : 25 per bag
    • Ring Type : Standard
    • RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
    • Stud Size : #6
    • Stud Size (Metric) : 3505.0
    • Terminal Style : Standard
    • Terminal Type : Ring
    • UL File Number : E23438
    • Units per Case : 10.0
    • Units per bag : 25
