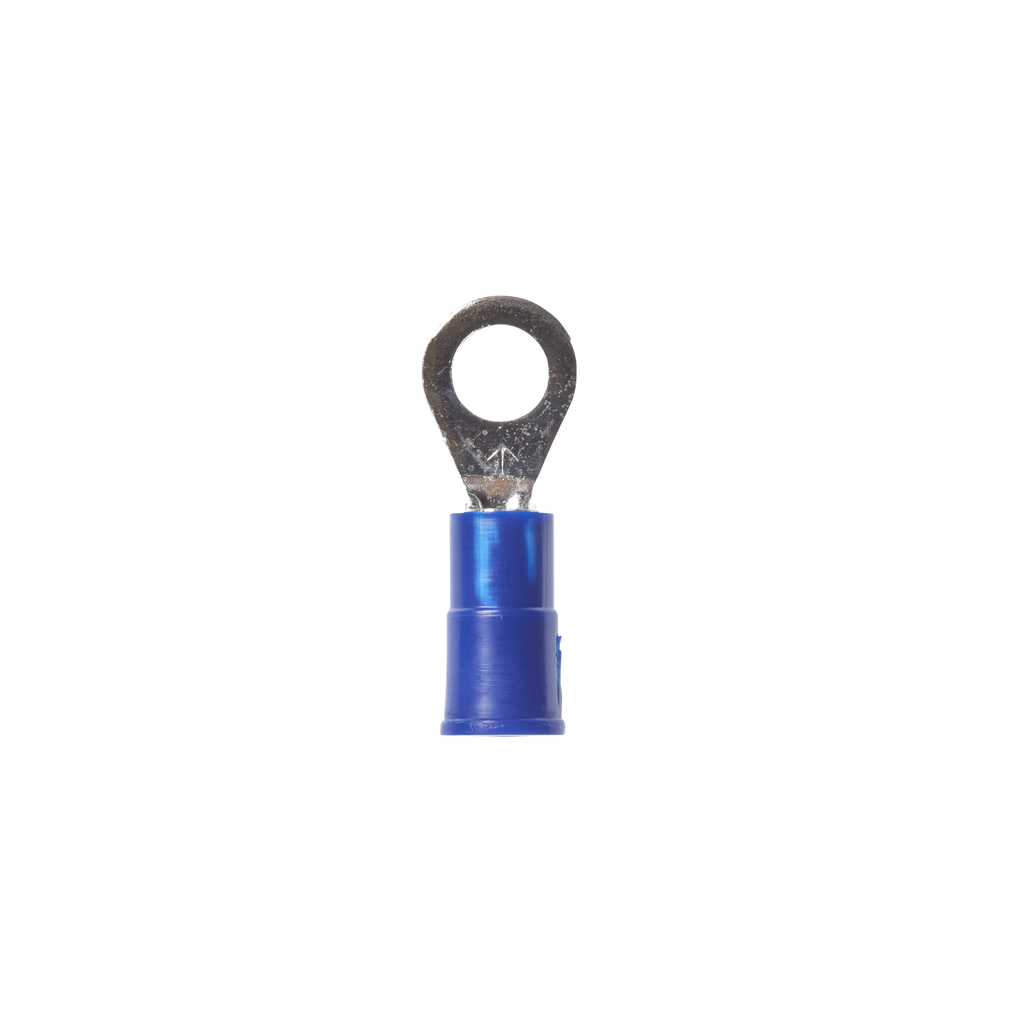

3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

• Features
• Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
• Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
• Standard-style ring tongue fits around the stud
• Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• 600V-rated for building wire and 1000V for signs, fixtures or luminaires

• Specifications
• Country of Origin : United States
• RDS URL (Regulatory Data Sheet) : https://cdmsweb.3m.com/ingredientcommunication/file/Media/kH236iLSq3g=
• Insulation Material : Vinyl
• AIS URL (Article Information Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xm82enx_Gnv70k17zHvu9lxtD7xtBevSSSSSS-
• Maximum Conductor Size (Imperial) : 14 AWG
• Maximum Conductor Size (Metric) : 2.08
• ETIM Class 8.0 : EC001052
• Minimum Conductor Size (Imperial) : 16 AWG
• Minimum Conductor Size (Metric) : 1.31 mm²
• Minimum Stud Diameter (Imperial) UOM : in
• Minimum Stud Diameter (Metric) : 5.0 mm
• Barrel Inside Diameter : 0.09 Inch
• Barrel Length (Imperial) : 0.25 Inch
• Barrel Length (Metric) : 6.35 mm
• Barrel Style : Butted
• Clearance (C) : 0.29 Inch
• Connection Type : Crimp
• Dimension E : 0.74 Inch
• Dimension E (Metric) : 18.8
• Manufacturing Origin : USA
• Material : Plastic
• Maximum Insulation Outer Diameter (Imperial) : 0.17 in
• Maximum Insulation Outer Diameter (Metric) : 3.7 mm
• Maximum Insulation Outside Diameter : 0.145 in
• Maximum Operating Temperature (Celsius) : 105.0 Degree
• Maximum Operating Temperature (Fahrenheit) : 221.0 Degree
• Maximum Recommended Voltage Rating : 600.0 V
• Overall Length (Imperial) : 0.9 in
• Overall Length (Metric) : 22.86 mm
• Overall Width (Imperial) : 0.33 in
• Overall Width (Metric) : 8.382 mm
• Packaging : 25 per bag
• Ring Type : Standard
• RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
• Stud Size : #10
• Stud Size (Metric) : 4826.0
• Stud Sizes : #10
• Terminal Style : Standard
• Terminal Type : Ring
• UL File Number : E23438
• Units per Case : 10.0
• Units per bag : 25
