Cable ends, Linergy TR cable ends, single conductor, 10mm², for un-insulated cable, medium size, 10 sets of 100

Cable ends, Linergy TR cable ends, single conductor, 10mm², for un-insulated cable, medium size, 10 sets of 100

SQDDZ5CE100 DZ5CE100 785901649021
0.66 / EA
http://schema.org/OutOfStock
Mayer-DDS-Cable ends, Linergy TR cable ends, single conductor, 10mm², for un-insulated cable, medium size, 10 sets of 100-1
  • Bezel Material: Halogen-Free Plastic
  • Country of Origin: Germany
  • Length: 18 mm
  • Warranty Length: 18 mth

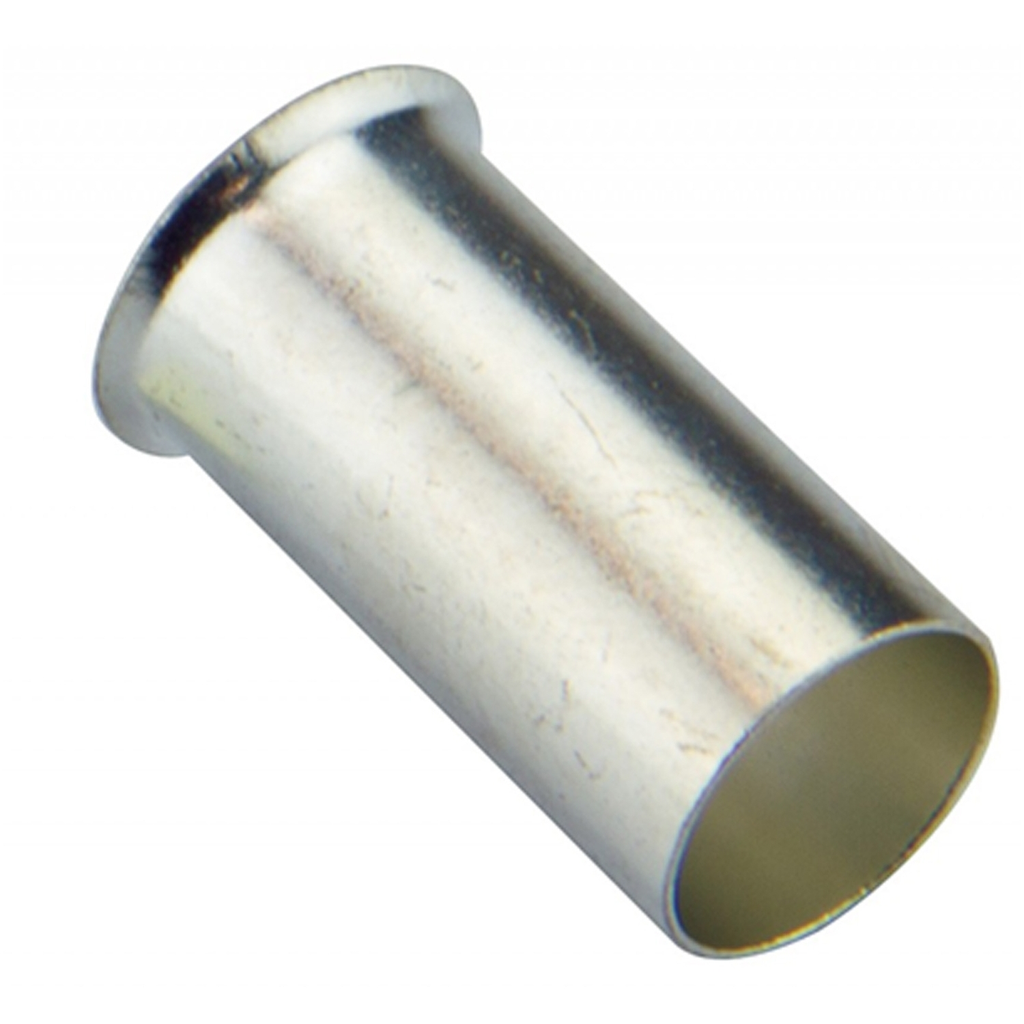

Linergy cable end un-insulated without marker tag holder. It applied to single conductor with 10 mm² cable cross section. Packing by dispenser pack and quantity per 1 set of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to DIN 46228-1 standard.
QTY
  • Product Description
  • Specifications
Linergy cable end un-insulated without marker tag holder. It applied to single conductor with 10 mm² cable cross section. Packing by dispenser pack and quantity per 1 set of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to DIN 46228-1 standard.
  • Environment
    • Ambient Air Temperature For Operation : -20-105 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2405008EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2405008EN
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant
  • Complementary
    • Tube Length : 18 mm
    • Bezel Size : Ø 5.8 mm
    • Number Of Cables : 1
    • Cable End Type : single conductor
    • Length : 18 mm
    • Awg Gauge : AWG 8
    • Bezel Material : halogen-free plastic
    • Tube Material : Copper ISO 1337
    • Additional Information : non-insulated
    • Tube Diameter : 4.5 mm
  • Specifications
    • Country of Origin : Germany
    • Length : 18 mm
    • Range Of Product : Linergy
    • Standards : DIN 46228-1
    • Product Or Component Type : cable end
    • Type Of Packing : individual bag
    • Cable Cross Section : 10-10 mm²
    • Cable End Size : medium
    • Quantity Per Set : set of 100
