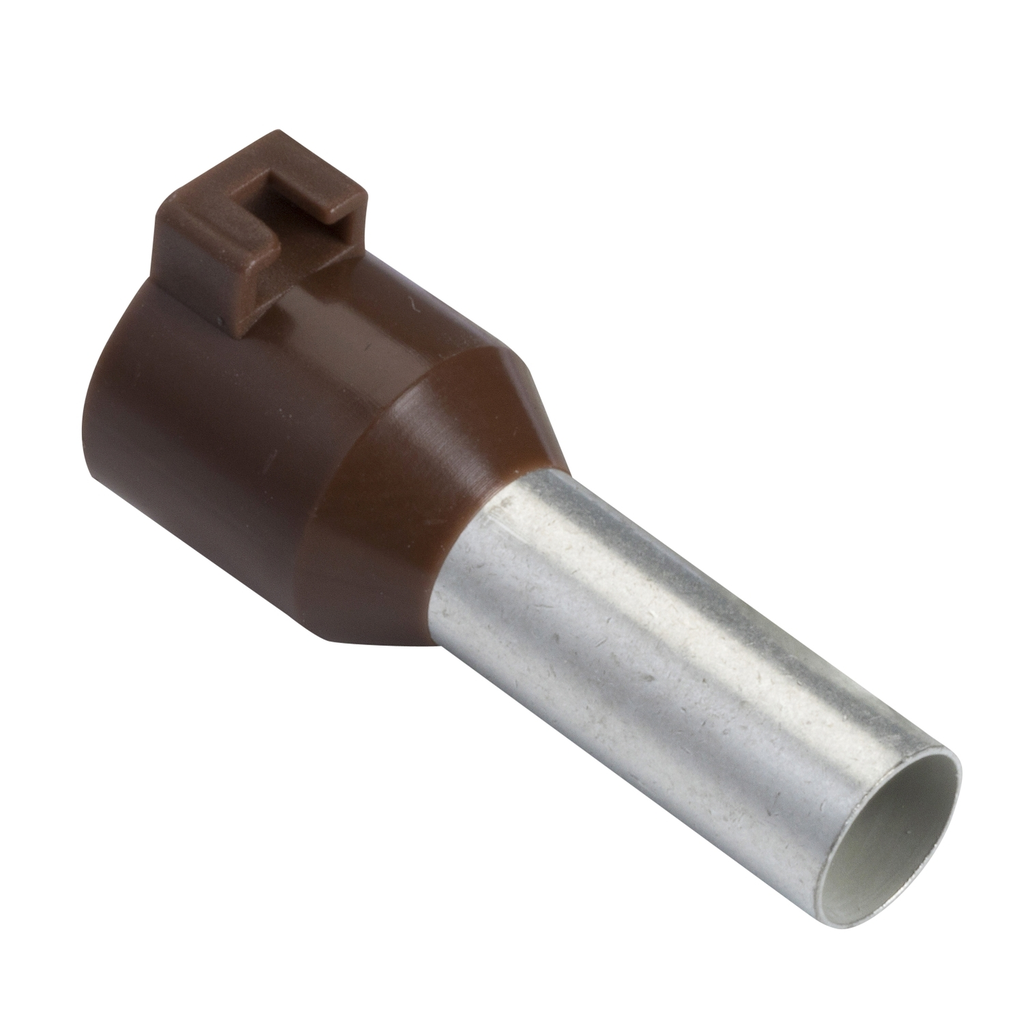

Cable end, Linergy TR cable ends, single conductor, brown, 10mm², medium size, 10 sets of 100

CABLE ENDS 100 PER BAG

SQDDZ5CA102 DZ5CA102 3389110535594
0.69 / EA
http://schema.org/OutOfStock
Mayer-DDS-Cable end, Linergy TR cable ends, single conductor, brown, 10mm², medium size, 10 sets of 100-1
  • Bezel Material: Halogen-Free Plastic
  • Length: 22 mm
  • Net Weight: 0.057 kg
  • Warranty Length: 18 mth
  • Weight: 0.057 kg
Linergy cable end insulated for clip-in marker. It applied to single conductor with 10 mm² cable cross section. It has brown surface treatment. It is medium size for additional marker tag holder. Packing by bag and quantity per set is set of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard.
QTY
  • Product Description
  • Specifications
Linergy cable end insulated for clip-in marker. It applied to single conductor with 10 mm² cable cross section. It has brown surface treatment. It is medium size for additional marker tag holder. Packing by bag and quantity per set is set of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard.
  • Environment
    • Ambient Air Temperature For Operation : -20-105 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2405008EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Circularity Profile : ENVEOLI2405008EN
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant
  • Complementary
    • Tube Length : 12 mm
    • Bezel Size : Ø 8.4 mm
    • Number Of Cables : 1
    • Cable End Type : single conductor
    • Length : 22 mm
    • Net Weight : 0.057 kg
    • Color : brown
    • Awg Gauge : AWG 8
    • Bezel Material : halogen-free plastic
    • Tube Material : Copper ISO 1337
    • Additional Information : for additional marker tag holder
    • Tube Diameter : 4.9 mm
    • Cad Overall Depth : 22 mm
  • Specifications
    • Country of Origin : Mexico
    • Length : 22 mm
    • Weight : 0.057 kg
    • Range Of Product : Linergy
    • Standards : NF C 63-023
    • Product Or Component Type : cable end
    • Type Of Packing : bag
    • Cable Cross Section : 10-10 mm²
    • Cable End Size : medium
    • Quantity Per Set : set of 100
