Cable end, Linergy TR cable ends, Single conductor, green, 0.34mm², medium size, markable, 10 sets of 100

GREEN CABLE END FOR 24 AWG WIR

SQDDZ5CA003 DZ5CA003 3389110535402
0.26 / EA
http://schema.org/OutOfStock

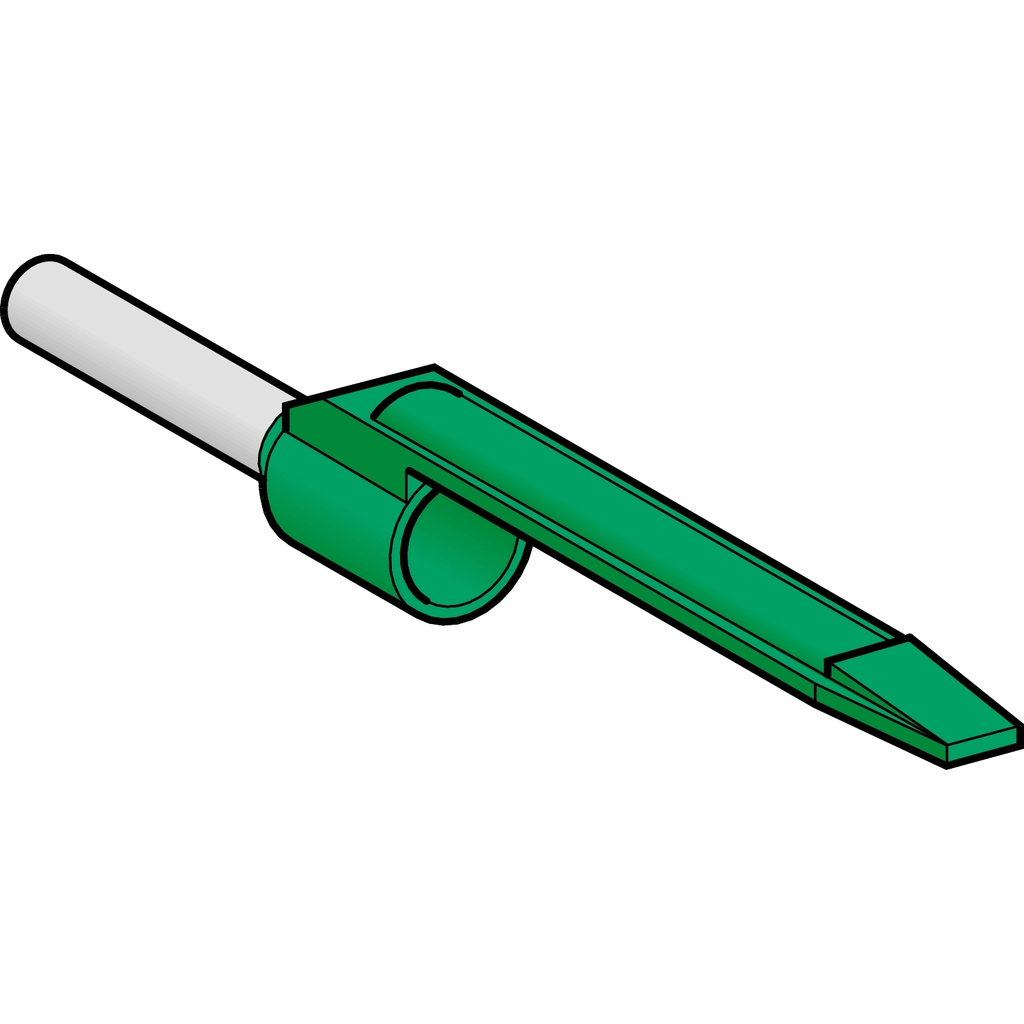

Mayer-DDS-Cable end, Linergy TR cable ends, Single conductor, green, 0.34mm², medium size, markable, 10 sets of 100-1
  • Bezel Material: Halogen-Free Plastic
  • Country of Origin: Germany
  • Length: 12 mm
  • Net Weight: 0.14 kg
  • Warranty Length: 18 mth
  • Weight: 0.14 kg
Linergy cable end insulated markable with integrated marker tag holder. It is applied to single conductor with 0.35 mm² cable cross section. It has green surface treatment. It is medium size with integrated marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard.
QTY
  • Product Description
  • Specifications
Linergy cable end insulated markable with integrated marker tag holder. It is applied to single conductor with 0.35 mm² cable cross section. It has green surface treatment. It is medium size with integrated marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard.
  • Environment
    • Ambient Air Temperature For Operation : -20-105 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2405008EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2405008EN
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant
  • Complementary
    • Tube Length : 8 mm
    • Bezel Size : Ø 2.5 mm
    • Number Of Cables : 1
    • Cable End Type : single conductor
    • Length : 12 mm
    • Net Weight : 0.14 kg
    • Color : Green
    • Awg Gauge : AWG 24
    • Bezel Material : halogen-free plastic
    • Tube Material : Copper ISO 1337
    • Additional Information : with integrated marker tag holder
    • Tube Diameter : 1.1 mm
    • Cad Overall Depth : 30 mm
  • Specifications
    • Country of Origin : Germany
    • Length : 12 mm
    • Weight : 0.14 kg
    • Range Of Product : Linergy
    • Standards : NF C 63-023
    • Product Or Component Type : cable end
    • Type Of Packing : string of bags
    • Cable Cross Section : 0.34-0.34 mm²
    • Cable End Size : medium
    • Quantity Per Set : 10 sets of 100
