Pan-Term® FSD81-12-C Single wire ferrule, Gray, 12 AWG, 12mm Pin L, PK100

FERRULE INS #12 0.79IN

PANFSD8112C FSD81-12-C 074983767458
0.32 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Term® FSD81-12-C Single wire ferrule, Gray, 12 AWG, 12mm Pin L, PK100-1
  • Country of Origin: Germany
  • Material: Copper
  • Max. Operating Temperature: 105 °C, 221 °F
  • Min. Operating Temperature: -54 °C, -60 °F
  • Overall Length: 0.79 in, 20 mm
  • Type: Covered Single Wire Ferrule

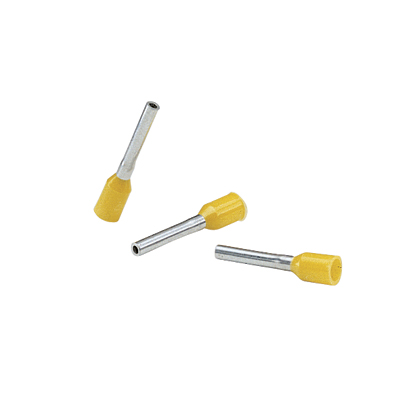

Panduit FSD81-12-C Covered Single Wire Ferrule
QTY
  • Product Description
  • Specifications
Panduit FSD81-12-C Covered Single Wire Ferrule
  • Packaging Details
    • UPC : 07498376745
    • GTIN Package : 00074983767458
    • Standard Package Volume Ft3 : 0.0896
    • Standard Package Weight Pounds : 0.1100
    • Std Package Height In : .6
    • Std Package Height MM : 15.24
    • Std Package Length In : 4.7
    • Std Package Length MM : 119.38
    • Std Package Width In : 4.15
    • Std Package Width MM : 105.41
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 100
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : DE
    • RoHS Compliant : Compliant
    • EAN : 00074983767458
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1,000
    • Pallet Quantity : 567,000
    • Pallet Weight : 623.7000
  • Specifications
    • Product Segment : IEI
    • Ferrule Type : Single Wire Standard
    • Cover Material : Polypropylene
    • Copper Conductor Size (AWG) : #12
    • Maximum Copper Conductor Size (AWG) : #12
    • Minimum Metric Conductor Size (mm²) : 4
    • Minimum Copper Conductor Size (AWG) : #12
    • Maximum Metric Conductor Size (mm²) : 4
    • UL Temperature Rating (°C) : 105
    • CSA Temperature Rating (°C) : 105
    • Flammability Rating : UL94-HB
    • Wire Strip Length (In.) : 5/8
    • Wire Strip Length (mm) : 15.9
    • Pin Length (mm) : 12
    • Pin Length (In.) : 0.47
    • Inside Diameter (In.) : 0.11
    • Inside Diameter (mm) : 2.9
    • Maximum Operating Temperature (°F) : 221
    • Maximum Operating Temperature (°C) : 105
    • Minimum Operating Temperature (°C) : -54
    • Minimum Operating Temperature (°F) : -60
    • Maximum Wire Insulation Diameter (mm) : 4.8
    • Maximum Wire Insulation Diameter (In.) : 0.19
    • Overall Length (mm) : 20
    • Overall Length (In.) : 0.79
    • Product Type : Covered Single Wire Ferrule
    • Standards Met : DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
    • Finish/Coating : Tin-Plated
    • For Use With : CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CP-992, CTFP-40, CTFP-100, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
    • Packaging Type : Bag
    • Base Material : Copper
    • Color Code : Gray
    • Sub Brand : Pan-Term®
