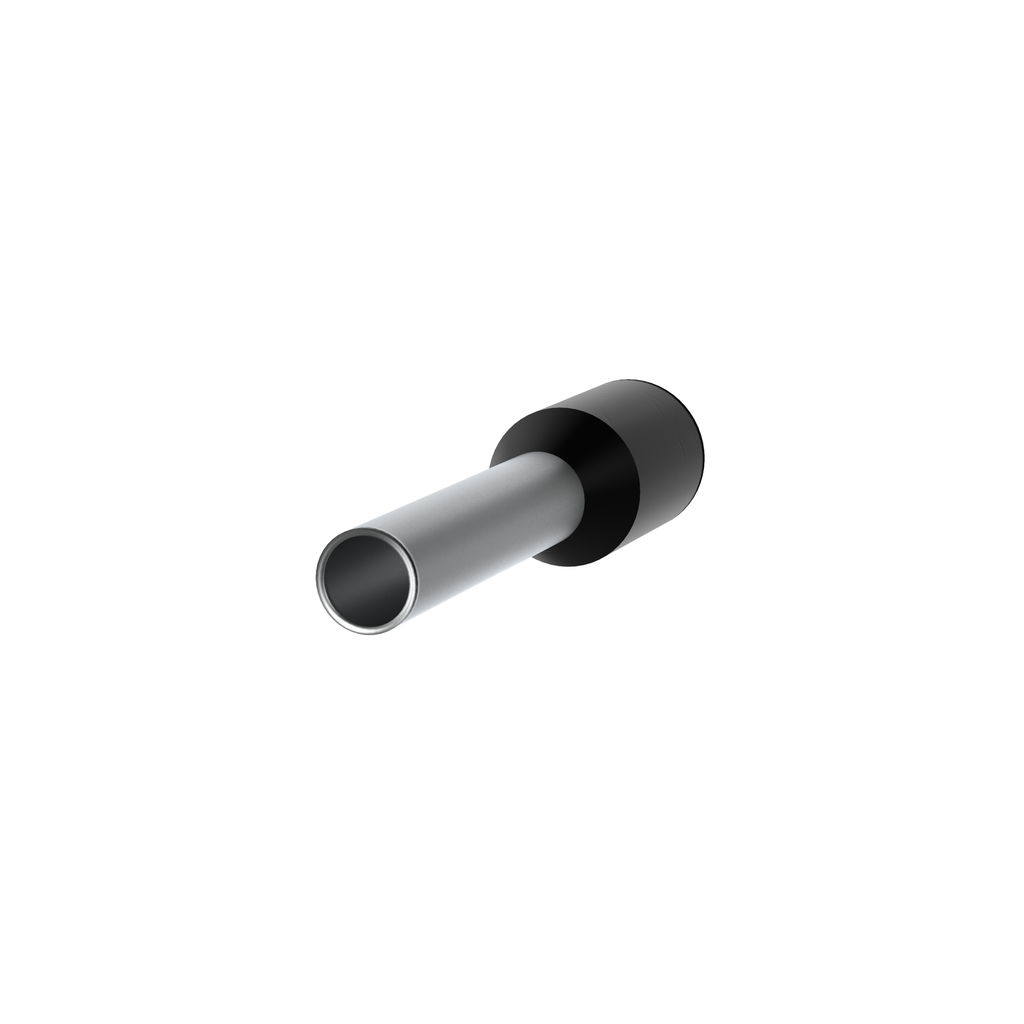

Pan-Term® FSD78-10-D Single wire ferrule, Black, 10mm Pin L, PK500

FERRULE INS #16 0.65IN

PANFSD7810D FSD78-10-D 074983762569
0.27 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Term® FSD78-10-D Single wire ferrule, Black, 10mm Pin L, PK500-1
  • Country of Origin: Germany
  • Material: Copper
  • Max. Operating Temperature: 105 °C, 221 °F
  • Min. Operating Temperature: -54 °C, -60 °F
  • Overall Length: 0.65 in, 16.5 mm
  • Type: Covered Single Wire Ferrule
Panduit FSD78-10-D Covered Single Wire Ferrule
QTY
  • Product Description
  • Specifications
Panduit FSD78-10-D Covered Single Wire Ferrule
  • Specifications
    • Product Segment : IEI
    • Ferrule Type : Single Wire Standard
    • Cover Material : Polypropylene
    • Copper Conductor Size (AWG) : #16
    • Maximum Copper Conductor Size (AWG) : #16
    • Maximum Metric Conductor Size (mm²) : 1.5
    • Minimum Copper Conductor Size (AWG) : #16
    • Minimum Metric Conductor Size (mm²) : 1.5
    • UL Temperature Rating (°C) : 105
    • CSA Temperature Rating (°C) : 105
    • Flammability Rating : UL94-HB
    • Wire Strip Length (mm) : 13.5
    • Wire Strip Length (In.) : 17/32
    • Pin Length (In.) : 0.39
    • Pin Length (mm) : 10
    • Inside Diameter (In.) : 0.07
    • Inside Diameter (mm) : 1.8
    • Maximum Operating Temperature (°C) : 105
    • Maximum Operating Temperature (°F) : 221
    • Minimum Operating Temperature (°F) : -60
    • Minimum Operating Temperature (°C) : -54
    • Maximum Wire Insulation Diameter (In.) : 0.12
    • Maximum Wire Insulation Diameter (mm) : 3
    • Overall Length (In.) : 0.65
    • Overall Length (mm) : 16.5
    • Product Type : Covered Single Wire Ferrule
    • Standards Met : DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
    • Finish/Coating : Tin-Plated
    • For Use With : CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
    • Packaging Type : Bag
    • Base Material : Copper
    • Color Code : Black
    • Sub Brand : Pan-Term®
  • Packaging Details
    • UPC : 07498376256
    • GTIN Package : 00074983762569
    • Standard Package Volume Ft3 : 0.0896
    • Standard Package Weight Pounds : 0.1500
    • Std Package Height In : 1.15
    • Std Package Height MM : 29.21
    • Std Package Length In : 4.85
    • Std Package Length MM : 123.19
    • Std Package Width In : 2.55
    • Std Package Width MM : 64.77
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 500
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : DE
    • RoHS Compliant : Compliant
    • EAN : 00074983762569
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 500
    • Pallet Quantity : 2,835,000
    • Pallet Weight : 850.5000
