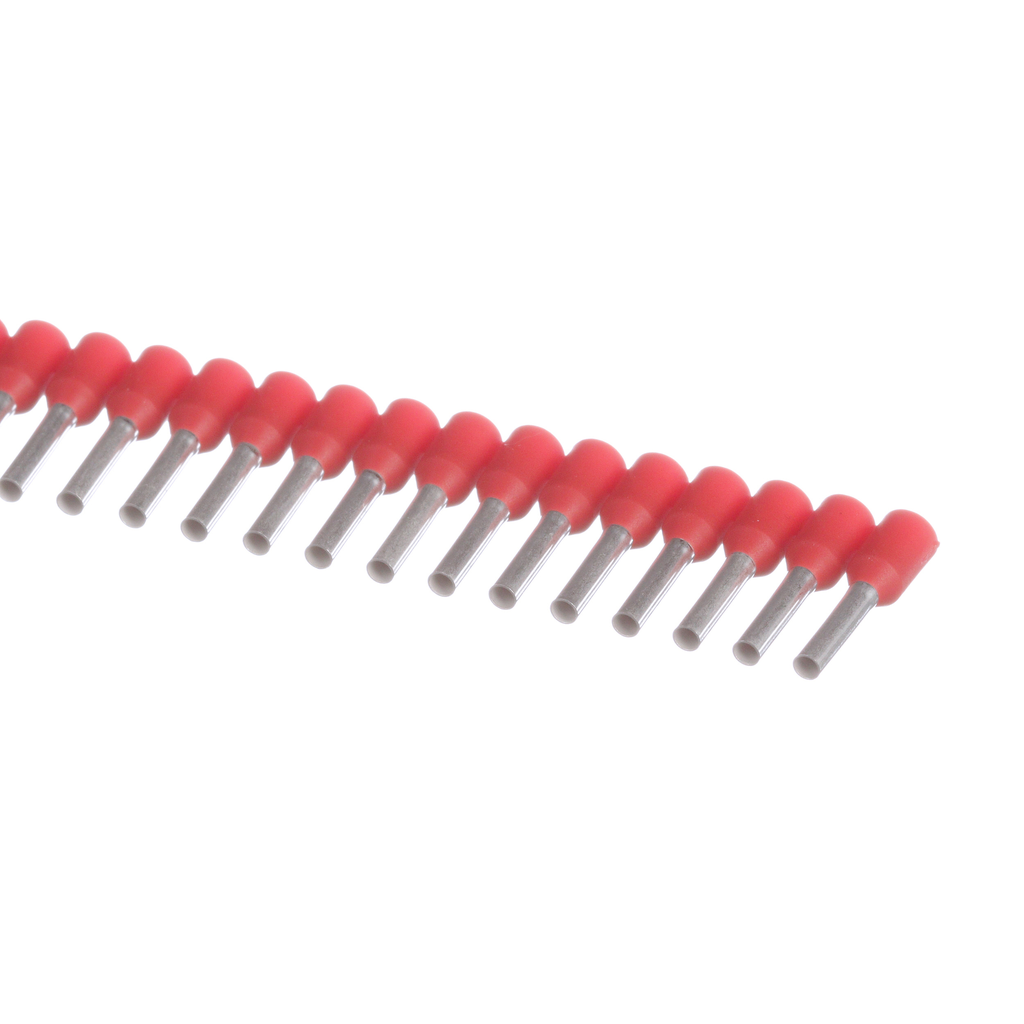

Reel Smart™ FSD77-8-K Single wire ferrule, Red, 8mm Pin L, PK1000

PANDUIT FSD77-8-K COVERED SING

PANFSD778K FSD77-8-K 074983333431
0.27 / EA
http://schema.org/OutOfStock
Mayer-DDS-Reel Smart™ FSD77-8-K Single wire ferrule, Red, 8mm Pin L, PK1000-1
  • Country of Origin: Germany
  • Material: Copper
  • Max. Operating Temperature: 105 °C, 221 °F
  • Min. Operating Temperature: -54 °C, -60 °F
  • Outer Diameter: 0.07 in, 1.8 mm
  • Overall Length: 0.57 in, 14.5 mm
  • Type: Covered Single Wire Ferrule
Panduit FSD77-8-K Covered Single Wire Ferrule
QTY
  • Product Description
  • Specifications
Panduit FSD77-8-K Covered Single Wire Ferrule
  • Packaging Details
    • UPC : 07498333343
    • GTIN Package : 00074983333431
    • Standard Package Volume Ft3 : 0.0164
    • Standard Package Weight Pounds : 0.2000
    • Std Package Height In : .8
    • Std Package Height MM : 20.32
    • Std Package Length In : 5.95
    • Std Package Length MM : 151.13
    • Std Package Width In : 5.9
    • Std Package Width MM : 149.86
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 1000
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : DE
    • RoHS Compliant : Compliant
    • EAN : 00074983333431
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1,000.0000
  • Specifications
    • Product Segment : IEI
    • Ferrule Type : Single Wire Standard
    • Cover Material : Polypropylene
    • Maximum Metric Conductor Size (mm²) : 1
    • Minimum Metric Conductor Size (mm²) : 1
    • CSA Temperature Rating (°C) : 105
    • Flammability Rating : UL94-HB
    • Wire Strip Length (mm) : 10
    • Wire Strip Length (In.) : 13/32
    • Pin Length (mm) : 8
    • Pin Length (In.) : 0.31
    • Inside Diameter (In.) : 0.06
    • Inside Diameter (mm) : 1.5
    • Maximum Operating Temperature (°C) : 105
    • Maximum Operating Temperature (°F) : 221
    • Minimum Operating Temperature (°C) : -54
    • Minimum Operating Temperature (°F) : -60
    • Maximum Wire Insulation Diameter (mm) : 3
    • Maximum Wire Insulation Diameter (In.) : 0.12
    • Outer Diameter (mm) : 1.8
    • Outer Diameter (In.) : 0.07
    • Overall Length (In.) : 0.57
    • Overall Length (mm) : 14.5
    • Product Type : Covered Single Wire Ferrule
    • Standards Met : DIN 46228, CSA C22.2 No. 291-14, UL 486F
    • Finish/Coating : Tin-Plated
    • For Use With : CP-881
    • Packaging Type : Reel
    • Base Material : Copper
    • Color Code : Red
    • Sub Brand : Reel Smart™
