Reel Smart™ FSD78-8-K Single wire ferrule, Black, 16 AWG, 8mm Pin L, PK1000

FERRULE INSUL 16AWG 8MMPIN BL

PANFSD788K FSD78-8-K 074983333448
0.00 / EA
http://schema.org/OutOfStock

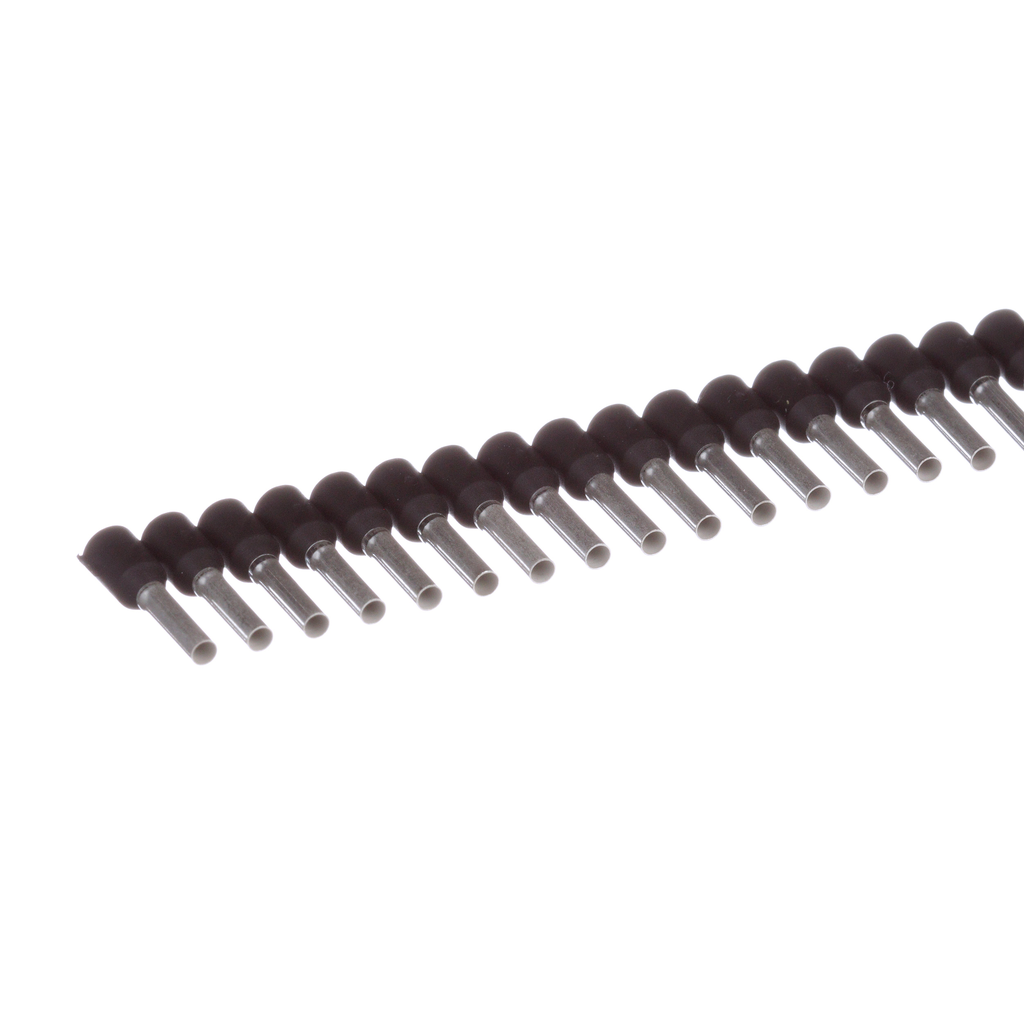

Mayer-DDS-Reel Smart™ FSD78-8-K Single wire ferrule, Black, 16 AWG, 8mm Pin L, PK1000-1
  • Country of Origin: Germany
  • Material: Copper
  • Max. Operating Temperature: 105 °C, 221 °F
  • Outer Diameter: 0.08 in, 2.1 mm
  • Overall Length: 0.57 in, 14.5 mm
  • Type: Covered Single Wire Ferrule
Insulated ferrules, single wire black DIN end sleeve on mini-reel, 16 AWG (1.5mm²), 0.31 (8.0mm) pin length.
QTY
  • Product Description
  • Specifications
Insulated ferrules, single wire black DIN end sleeve on mini-reel, 16 AWG (1.5mm²), 0.31 (8.0mm) pin length.
  • Specifications
    • Product Segment : IEI
    • Ferrule Type : Single Wire Standard
    • Cover Material : Polypropylene
    • Copper Conductor Size (AWG) : 16
    • Maximum Copper Conductor Size (AWG) : 16
    • Minimum Copper Conductor Size (AWG) : #16
    • Maximum Metric Conductor Size (mm²) : 1.5
    • CSA Temperature Rating (°C) : 105
    • Flammability Rating : UL94-HB
    • Wire Strip Length (In.) : 0.39
    • Wire Strip Length (mm) : 10
    • Pin Length (In.) : 0.31
    • Pin Length (mm) : 8
    • Inside Diameter (mm) : 1.8
    • Inside Diameter (In.) : 0.07
    • Maximum Operating Temperature (°F) : 221
    • Maximum Operating Temperature (°C) : 105
    • Maximum Wire Insulation Diameter (In.) : 0.13
    • Maximum Wire Insulation Diameter (mm) : 3.2
    • Outer Diameter (mm) : 2.1
    • Outer Diameter (In.) : 0.08
    • Overall Length (mm) : 14.5
    • Overall Length (In.) : 0.57
    • Product Type : Covered Single Wire Ferrule
    • Standards Met : DIN 46228 Part 4, CSA C22.2 No. 291-14, cULus E472545
    • Finish/Coating : Tin-Plated
    • For Use With : CP-881, APM-MRSP1516JMD
    • Packaging Type : Reel
    • Base Material : Copper
    • Color Code : Black
    • Sub Brand : Reel Smart™
  • Packaging Details
    • UPC : 07498333344
    • GTIN Package : 00074983333448
    • Standard Package Volume Ft3 : 0.0161
    • Standard Package Weight Pounds : 0.3400
    • Std Package Height In : .75
    • Std Package Height MM : 19.05
    • Std Package Length In : 6
    • Std Package Length MM : 152.4
    • Std Package Width In : 5.9
    • Std Package Width MM : 149.86
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 1000
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : DE
    • RoHS Compliant : Compliant
    • EAN : 00074983333448
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1,000.0000
