Reel Smart™ PV18-6LFB-3K Lock Fork Terminal, Red, Vinyl, 18-22 AWG, #6 Stud

FORK TERM #22-18 #6STUD

PANPV186LFB3K PV18-6LFB-3K 074983808410
0.32 / EA
http://schema.org/OutOfStock
Mayer-DDS-Reel Smart™ PV18-6LFB-3K Lock Fork Terminal, Red, Vinyl, 18-22 AWG, #6 Stud-1
  • Country of Origin: Mexico
  • Material: Copper
  • Max. Operating Temperature: 105 °C, 221 °F
  • Overall Length: 0.8 in, 20.3 mm
  • Tongue Length: 0.4 in, 10.2 mm
  • Tongue Thickness: 0.03 in, 0.8 mm
  • Tongue Width: 0.27 in, 6.9 mm
  • Type: Locking Fork Terminal
  • Width: 0.27 in, 6.9 mm

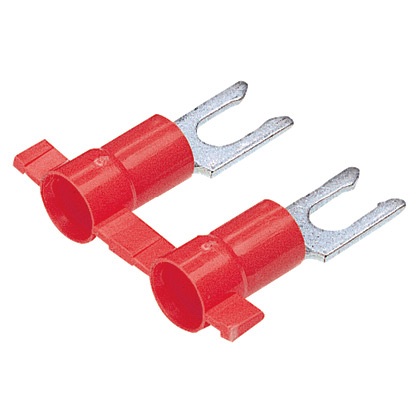

The PV18-6LFB-3K Reel Smart™ Terminal is a continuously molded and vinyl fully insulated, locking fork terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
QTY
  • Product Description
  • Features
  • Specifications
The PV18-6LFB-3K Reel Smart™ Terminal is a continuously molded and vinyl fully insulated, locking fork terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
  • Standards and Certifications
    • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Stud Size : #6
    • Minimum Copper Conductor Size (AWG STR) : #22
    • Maximum Operating Temperature (°F) : 221
    • Maximum Copper Conductor Size (AWG STR) : #18
    • Maximum Voltage (V) : 600
    • Maximum Voltage (kV) : 0.6
    • Maximum Metric Conductor Size (mm²) : 1
    • Tongue Thickness (In.) : 0.03
    • For Use With : Crimp press with CA9 (CD9-1A) or CA-800EZ (CD-800-1) applicator
    • Insulation Type : Vinyl
    • Insulation Material : Vinyl
    • Product Type : Locking Fork Terminal
    • Minimum Copper Conductor Size (AWG) : #22
    • Minimum Copper Conductor Size (AWG SOL) : #22
    • Flammability Rating : UL94V-0
    • Overall Length (In.) : 0.8
    • Base Material : Copper
    • Wire Strip Length (In.) : 1/4
    • Stud Hole Size (In.) : #6
    • Sub Brand : Reel Smart™
    • Overall Width (mm) : 6.9
    • Maximum Operating Temperature (°C) : 105
    • Minimum Wire Size (AWG) : #22
    • Minimum Metric Conductor Size (mm²) : 0.5
    • Tongue Width (In.) : 0.27
    • Tongue Width (mm) : 6.9
    • Stud Hole Size (mm) : 3.5
    • Color Code : Red
    • Maximum Wire Insulation Diameter (In.) : 0.15
    • Maximum Copper Conductor Size (AWG SOL) : #18
    • Maximum Wire Size (AWG) : 18
    • Barrel Type : Funnel Entry
    • Maximum Wire Insulation Diameter (mm) : 3.8
    • Overall Length (mm) : 20.3
    • Packaging Type : Reel
    • Maximum Copper Conductor Size (AWG) : #18
    • Fork Type : Locking Fork
    • Tongue Length (In.) : 0.4
    • Finish/Coating : Tin-Plated
    • Tongue Thickness (mm) : 0.8
    • Overall Width (In.) : 0.27
    • Wire Strip Length (mm) : 6.4
    • Seam Type : Butted
    • Tongue Length (mm) : 10.2
  • Packaging Details
    • UPC : 07498380841
    • GTIN Package : 00074983808410
    • Standard Package Volume Ft3 : 0.9208
    • Standard Package Weight Pounds : 7.8000
    • Std Package Height In : 2.4
    • Std Package Height MM : 60.96
    • Std Package Length In : 26.1
    • Std Package Length MM : 662.94
    • Std Package Width In : 25.4
    • Std Package Width MM : 645.16
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 3000
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983808410
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 3,000.0000
    • Pallet Quantity : 48,000
    • Pallet Volume : 0.000000
    • Pallet Weight : 124.8000
    • RoHS Compliant : Compliant
