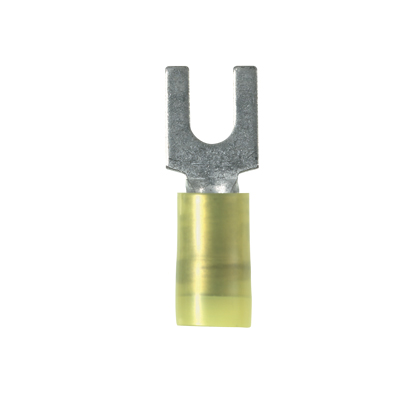

Pan-Term® PN10-10F-L Fork Terminal, Yellow, Nylon, 10-12 AWG, #10 Stud, PK50

FORK TERM #12-10 #8STUD

PANPN1010FL PN10-10F-L 74983803200
1.90 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Term® PN10-10F-L Fork Terminal, Yellow, Nylon, 10-12 AWG, #10 Stud, PK50-1
  • Barrel Length: 0.52 in, 13.2 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Max. Operating Temperature: 105 °C, 221 °F
  • Overall Length: 1.04 in, 26.4 mm
  • Tongue Length: 0.52 in, 13.2 mm
  • Tongue Thickness: 0.04 in, 1 mm
  • Tongue Width: 0.37 in, 9.4 mm
  • Type: Fork Terminal
  • Width: 0.37 in, 9.4 mm
The PN10-10F-L Pan-Term® Terminal is a nylon insulated, fork terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Barrel serrations assure good wire contact and maximum tensile strength.
QTY
  • Product Description
  • Features
  • Specifications
The PN10-10F-L Pan-Term® Terminal is a nylon insulated, fork terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Barrel serrations assure good wire contact and maximum tensile strength.
  • Standards and Certifications
    • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Seam Type : Butted
    • Barrel Length (mm) : 13.2
    • Wire Strip Length (mm) : 7.1
    • Sub Brand : Pan-Term®
    • Tongue Width (mm) : 9.4
    • Barrel Type : Grip Sleeve
    • Overall Length (mm) : 26.4
    • Overall Length (In.) : 1.04
    • Minimum Copper Conductor Size (AWG STR) : #12
    • Finish/Coating : Tin-Plated
    • Maximum Voltage (V) : 600
    • Fork Type : Standard
    • Maximum Voltage (kV) : 0.6
    • Overall Width (In.) : 0.37
    • Maximum Operating Temperature (°C) : 105
    • Maximum Wire Insulation Diameter (mm) : 5.7
    • Insulation Type : Nylon
    • Maximum Wire Size (AWG) : 10
    • Stud Size : #10
    • Packaging Type : Bottle
    • Stud Hole Size (In.) : #10
    • Maximum Copper Conductor Size (AWG STR) : #10
    • Tongue Length (In.) : 0.52
    • Tongue Thickness (mm) : 1
    • Maximum Metric Conductor Size (mm²) : 6
    • Tongue Width (In.) : 0.37
    • Flammability Rating : UL94-HB
    • Maximum Wire Insulation Diameter (In.) : 0.225
    • Tongue Thickness (In.) : 0.04
    • Overall Width (mm) : 9.4
    • Tongue Length (mm) : 13.2
    • Maximum Copper Conductor Size (AWG) : #10
    • Stud Hole Size (mm) : 5
    • Insulation Material : Nylon
    • For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
    • Minimum Wire Size (AWG) : #12
    • Minimum Copper Conductor Size (AWG) : #12
    • Maximum Operating Temperature (°F) : 221
    • Barrel Length (In.) : 0.52
    • Maximum Copper Conductor Size (AWG SOL) : #10
    • Minimum Metric Conductor Size (mm²) : 4
    • Minimum Copper Conductor Size (AWG SOL) : #12
    • Color Code : Yellow
    • Wire Strip Length (In.) : 9/32
    • Product Type : Fork Terminal
    • Base Material : Copper
  • Packaging Details
    • UPC : 07498380320
    • GTIN Package : 00074983803200
    • Standard Package Volume Ft3 : 0.0099
    • Standard Package Weight Pounds : 0.2800
    • Std Package Height In : 1.9
    • Std Package Height MM : 48.26
    • Std Package Length In : 4.35
    • Std Package Length MM : 110.49
    • Std Package Width In : 1.95
    • Std Package Width MM : 49.53
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 50
    • GTIN Carton : 50074983803205
    • Standard Carton Volume Ft3 : 0.0985
    • Standard Carton Weight Pounds : 2.8000
    • Std Carton Height In : 4.5
    • Std Carton Height MM : 114.3
    • Std Carton Length In : 10.1
    • Std Carton Length MM : 256.54
    • Std Carton Width In : 4.5
    • Std Carton Width MM : 114.3
    • Std Ctn Qty : 500
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983803200
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 50.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
