StrongHold™ EV10-8LFB-Q Fork Terminal

LOCK FORK TERM #12-10 #8STUD

PANEV108LFBQ EV10-8LFB-Q 74983280407
0.31 / EA
http://schema.org/OutOfStock

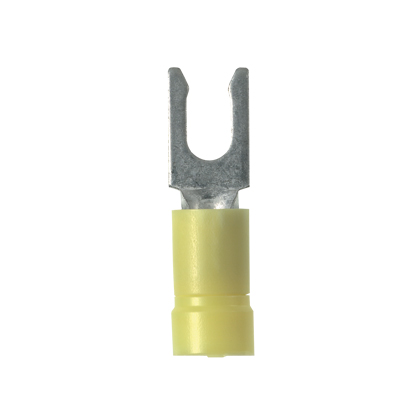

Mayer-DDS-StrongHold™ EV10-8LFB-Q Fork Terminal-1
  • Barrel Length: 0.53 in, 13.3 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Max. Operating Temperature: 105 °C, 221 °F
  • Min. Operating Temperature: 105 °C, 221 °F
  • Overall Length: 1.05 in, 26.7 mm
  • Tongue Length: 0.53 in, 13.3 mm
  • Tongue Thickness: 0.04 in, 1 mm
  • Tongue Width: 0.3 in, 7.6 mm
  • Type: Fork Terminal
  • Width: 0.3 in, 7.6 mm
StrongHold™ Locking Fork Terminal, vinyl insulated, 12 - 10 AWG, #8 Stud Size.
QTY
  • Product Description
  • Features
  • Specifications
StrongHold™ Locking Fork Terminal, vinyl insulated, 12 - 10 AWG, #8 Stud Size.
  • Standards and Certifications
    • Standards Met: UL Listed 587H E52164; CSA Certified LR31224
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Seam Type : Butted
    • Maximum Operating Temperature (°C) : 105
    • Overall Length (In.) : 1.05
    • Color Code : Yellow
    • Base Material : Copper
    • Barrel Length (In.) : 0.53
    • Tongue Thickness (mm) : 1
    • Overall Length (mm) : 26.7
    • Stud Size : #8
    • Tongue Width (In.) : 0.3
    • Barrel Type : Funnel Entry
    • Overall Width (In.) : 0.3
    • Minimum Operating Temperature (°C) : 105
    • Maximum Voltage (kV) : 0.6
    • Maximum Copper Conductor Size (AWG) : #10
    • Maximum Operating Temperature (°F) : 221
    • Minimum Copper Conductor Size (AWG) : #12
    • Minimum Copper Conductor Size (AWG SOL) : #12
    • Overall Width (mm) : 7.6
    • Tongue Width (mm) : 7.6
    • Packaging Type : Loose Piece
    • Tongue Length (mm) : 13.3
    • Maximum Copper Conductor Size (AWG STR) : #10
    • Tongue Thickness (In.) : 0.04
    • Stud Hole Size (In.) : 0.164
    • Product Type : Fork Terminal
    • Flammability Rating : UL587-H
    • Maximum Metric Conductor Size (mm²) : 6
    • Minimum Metric Conductor Size (mm²) : 4
    • Insulation Material : Vinyl
    • Tongue Length (In.) : 0.53
    • Maximum Wire Insulation Diameter (In.) : 0.23
    • For Use With : *CT-100A, CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH)
    • Minimum Voltage (kV) : 0.6
    • Minimum Wire Size (AWG) : #12
    • Wire Strip Length (mm) : 7.9
    • Insulation Diameter (mm) : 5.8
    • Sub Brand : StrongHold™
    • Maximum Wire Insulation Diameter (mm) : 5.8
    • Stud Hole Size (mm) : 4.2
    • Maximum Copper Conductor Size (AWG SOL) : #10
    • Fork Type : Locking Fork
    • Maximum Wire Size (AWG) : 10
    • Wire Strip Length (In.) : 0.31
    • Maximum Voltage (V) : 600
    • Finish/Coating : Tin-Plated
    • Barrel Length (mm) : 13.3
    • Insulation Diameter (In.) : 0.23
    • Minimum Operating Temperature (°F) : 221
    • Minimum Copper Conductor Size (AWG STR) : #12
    • Minimum Voltage (V) : 600
  • Packaging Details
    • UPC : 07498328040
    • GTIN Package : 00074983280407
    • Standard Package Volume Ft3 : 0.0100
    • Standard Package Weight Pounds : 0.1200
    • Std Package Height In : .65
    • Std Package Height MM : 16.51
    • Std Package Length In : 4.55
    • Std Package Length MM : 115.57
    • Std Package Width In : 3.15
    • Std Package Width MM : 80.01
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 25
    • GTIN Carton : 50074983280402
    • Standard Carton Volume Ft3 : 0.0996
    • Standard Carton Weight Pounds : 1.2000
    • Std Carton Height In : 4.45
    • Std Carton Height MM : 113.03
    • Std Carton Length In : 9.15
    • Std Carton Length MM : 232.41
    • Std Carton Width In : 4.4
    • Std Carton Width MM : 111.76
    • Std Ctn Qty : 250
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983280407
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 250.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
