3M

3M™ Highland™ Vinyl Insulated Block Fork Terminal BFV14-10Q, AWG 16-14, 25/bag, 10 Bags/Case

VINYL BLOCK FORK HIGHLAND BAG

MMMBFV1410Q BFV14-10Q 51128599907
11.26 / Bag
http://schema.org/OutOfStock

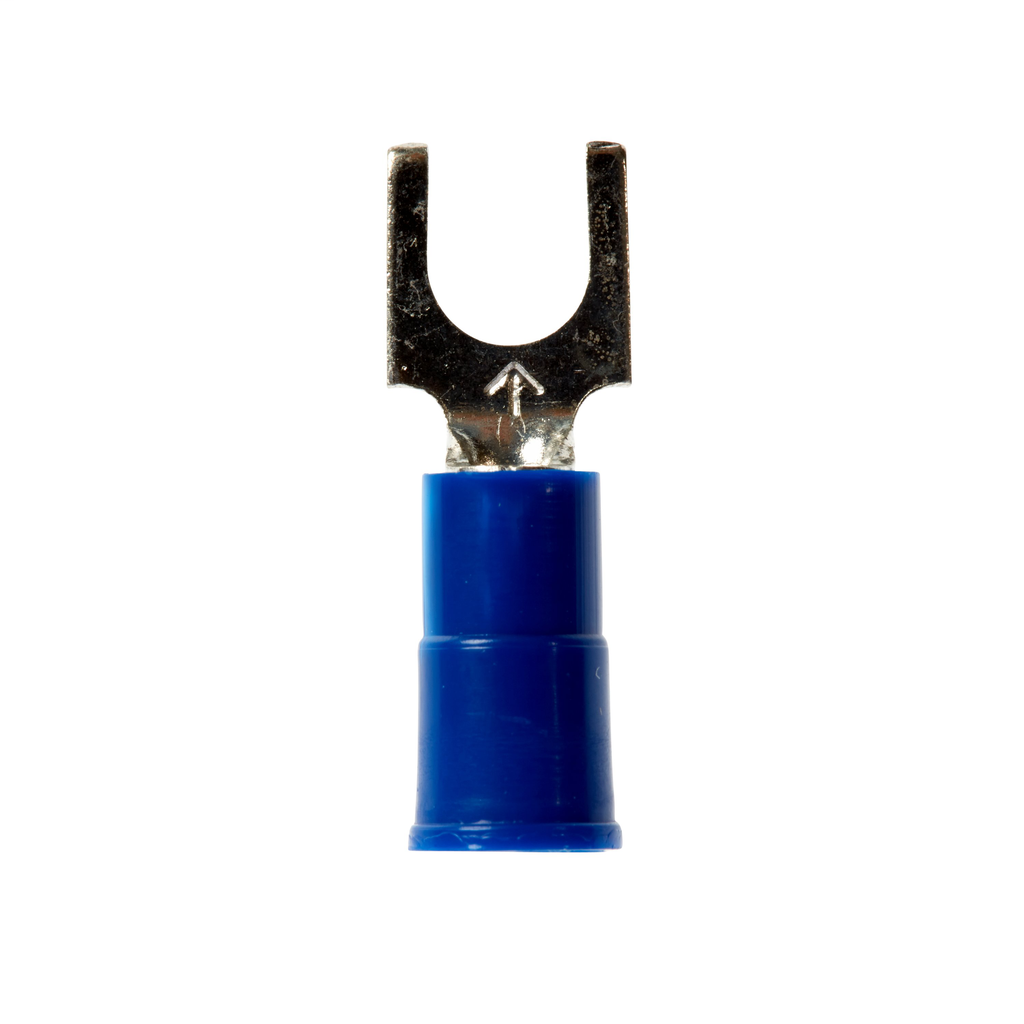

Mayer-DDS-3M™ Highland™ Vinyl Insulated Block Fork Terminal BFV14-10Q, AWG 16-14, 25/bag, 10 Bags/Case-1
  • Country of Origin: USA
  • Max. Operating Temperature: 105.0 °C
  • Overall Length: 0.85 in, 21.59 mm
  • Width: 0.3 in, 7.62 mm
When you demand high performance, look to the 3M Highland Color-Coded Block Fork. This fork terminal is both reliable and safe, and provides an ideal fit every time. It's made with electrolytic copper for good conductivity and a tin-plated finish for corrosion resistance. The butted-seam barrel is insulated with vinyl and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C).
QTY
  • Product Description
  • Features
  • Specifications
When you demand high performance, look to the 3M Highland Color-Coded Block Fork. This fork terminal is both reliable and safe, and provides an ideal fit every time. It's made with electrolytic copper for good conductivity and a tin-plated finish for corrosion resistance. The butted-seam barrel is insulated with vinyl and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C).
  • Features
    • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
    • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
    • Suitable for use in a terminal block
  • Specifications
    • Country of Origin : United States
    • RDS URL (Regulatory Data Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xm82enx_Gnv70k17zHvu9lxtD7xt1evSSSSSS-
    • AIS URL (Article Information Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xm82enx_Gnv70k17zHvu9lxtD7xtBevSSSSSS-
    • Insulation Material : Vinyl
    • Maximum Conductor Size (Imperial) : 14 AWG
    • Minimum Conductor Size (Imperial) : 16 AWG
    • Connection Width (Imperial) : 0.19 in
    • Connection Width (Metric) : 4.826 mm
    • Maximum Conductor Size (Metric) : 2.08 mm²
    • Maximum Operating Temperature (Celsius) : 105.0 Degree
    • Minimum Conductor Size (Metric) : 1.31 mm²
    • Overall Length (Imperial) : 0.85 in
    • Overall Length (Metric) : 21.59 mm
    • Overall Width (Imperial) : 0.3 in
    • Overall Width (Metric) : 7.62 mm
    • Terminal Style : Block
    • Terminal Type : Fork
