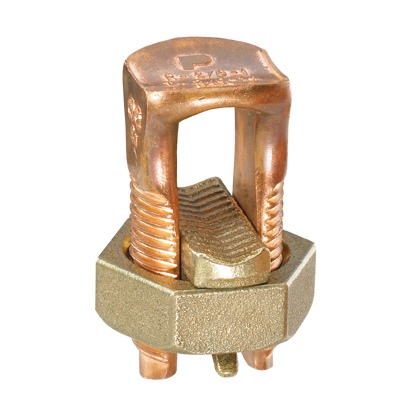

The SBC8-C Mechanical Lug Split Bolt Copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The internal pressure bar provides a secure connection on a full range of conductor combinations used with each Lug assuring premium wire pull-out strength.

• Specifications
• Product Segment : IEI
• Product Type : Mechanical Split Bolt Connector
• Connection Type : Copper to Copper
• Base Material : Copper
• Maximum Copper Conductor Size (AWG STR) : 8
• Minimum Copper Conductor Size (AWG SOL) : 10
• Standards Met : UL listed to 467 and 486 and CSA certified for use up to 600V & Temperature Rated to 90°C
• UL Temperature Rating (°C) : 90
• Maximum Voltage (V) : 600
• Overall Height (In.) : 0.86
• Overall Height (mm) : 21.84
• Sub Brand : Pan-Lug™
• Packaging Details
• UPC : 07498390402
• GTIN Package : 00074983904020
• Standard Package Volume Ft3 : 0.0326
• Standard Package Weight Pounds : 2.6500
• Std Package Height In : 3.45
• Std Package Height MM : 87.63
• Std Package Length In : 4.7
• Std Package Length MM : 119.38
• Std Package Width In : 3.35
• Std Package Width MM : 85.09
• Std. Pkg. UOM : Piece
• UOM EA PK : PK
• Std. Pkg. Qty. : 100
• Min. Order UOM : Piece
• Country of Origin 2Digit : BR
• RoHS Compliant : Compliant
• EAN : 00074983904020
• REACH Status : N
• ARRA Compliant : Y
• Mercury Content Indicator : N
• Hazardous Material Flag : N
• Min Order Qty : 1.0000
