BURNDY

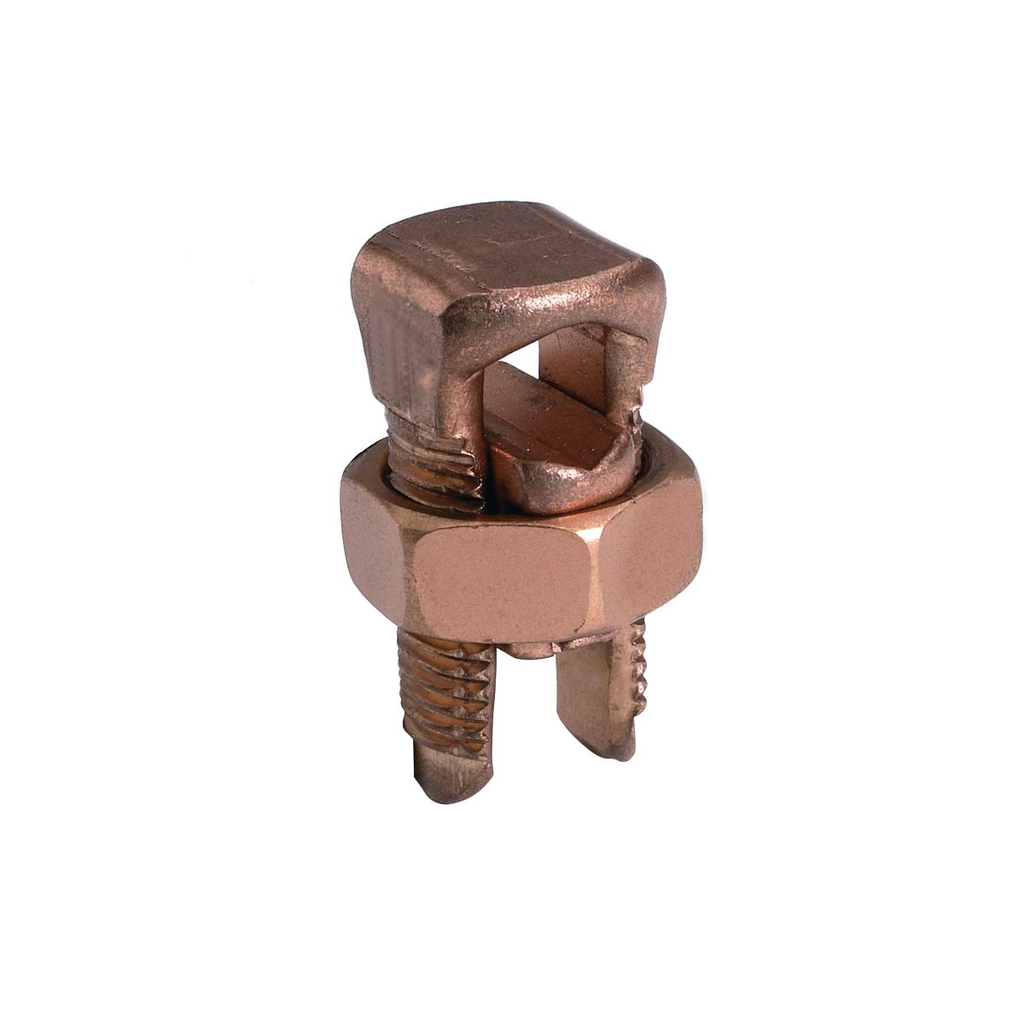

Copper Split Bolt, Cu: 12-10 AWG (Str) (Run & Tap)

SPLIT BOLT #12STR-#10STR CU

BURKS90 KS90 781810015254
10.25 / Each
http://schema.org/OutOfStock
Mayer-DDS-Copper Split Bolt, Cu: 12-10 AWG (Str) (Run & Tap)-1
  • Connection Type: Split Bolt
  • Country of Origin: USA
  • Material: Copper
  • Overall Length: 22 mm
  • Width: 0.38 in, 0.500 in, 10 mm
Copper Split Bolt, Cu: 12-10 AWG (Str) (Run & Tap).
QTY
  • Product Description
  • Features
  • Specifications
Copper Split Bolt, Cu: 12-10 AWG (Str) (Run & Tap).
  • Features
    • UL467 Listed for Direct Burial applications in earth or concrete
    • Compact, high-strength, copper alloy with free-running threads and easy to grip wrench flats
    • Highly resistant to cracking and corrosion
  • Specifications
    • Buy American Compliant : Yes
    • Standard : UL 486A;UL486B
    • ARRA Compliant : Yes
    • Description - Invoice : SERVIT 12 STR - 10 STR
    • Stock Indicator : S - Shelf Stock
    • Package Height : 4 in
    • Package Length : 4 in
    • Package Width : 4 in
    • Conductor - Copper Solid Run : 8 AWG
    • Conductor - Copper Solid Run Range : 10 AWG-12 AWG
    • Conductor - Copper Solid Tap : 8 AWG
    • Conductor - Copper Solid Tap Range : 16 AWG-10 AWG
    • Conductor - Copper Str Run : 12 AWG;10 AWG
    • Conductor - Copper Str Run Range : 12 STR. 10 STR.
    • Conductor - Copper Str Tap : 16 AWG;14 AWG;12 AWG;10 AWG
    • Conductor - Copper Str Tap Range : 16 STR.
    • Conductor - CopperWeld Solid Run : #10
    • Conductor - CopperWeld Solid Run Range : #10
    • Conductor - CopperWeld Solid Tap : #10
    • Conductor - CopperWeld Solid Tap Range : #10
    • Country of Origin : US
    • Dimension - B Length fraction : 9/20 in
    • Dimension - B Length inch : .45 in
    • Dimension - Cross Flats inch : .50 in
    • Dimension - L Length Overall mm : 22 mm
    • Dimension - Length Overall inch : 0.85
    • Dimension - Width fraction : 19/50 in
    • Dimension - Width inch : 0.38 in
    • Dimension - Width mm : 10 mm
    • Each - Width : 0.500 in
    • Industry Standard(s) : UL 486A;UL486B
    • Installation Torque Recommended in-lb : 80 in
    • Plated : N
    • Plating Type : Unplated
    • Product Type : Mechanical
    • Standards - Industry Standards Met : UL 486A;UL486B
    • Standards - RoHS Compliance Status : CM
    • Trade Name : SERVIT®
    • Sub Brand : SERVIT
    • Width : 0.38 in
    • Application : For Direct Burial Cables
    • Conductor Type : CU C Solid-Run;CU C Str-Run;CU Weld C Solid-Run;CU Weld C Str-Run;CU C Str-Tap;CU Weld C Solid-Tap;CU Weld C Str-Tap;CU C Solid-Tap
    • Connector Type : Split Bolt
    • Type : KS
    • Certification Agency : Proposition 65
    • Class Code : B30
    • Freight Class Code : 16027000
    • Harmonization Code : 8535909999
    • Image Actual Or Representative : A
    • Lead Time : 10 wk
    • MSDS Flag : No
    • Order Multiple : 1 EA
    • Sub Class Code : B30B30F
    • UL Listed : Yes
    • Material : Copper
    • Base Unit of Measure : EA
    • BOX SIZE : 4.500x4.200x4.300 (in)
    • Carton - Gross Weight per Pack : 2.600 lb.
    • Carton - Number of Sub Packs : 100
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 00781810015254
    • Carton - Total Units : 100
    • Case - SCC-14 Next Lower Level Sub Pack : 30781810015255
    • Each - Number of Sub Packs : 1
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
    • Package - Gross Weight per Pack : 2.6 lb.
    • Package - GTIN - Package : 30781810015255
    • Package - Number of Sub Packs : 100
    • Package - Pack Description : Package
    • Package - SCC-14 Next Lower Level Sub Pack : 00781810015254
    • Package - Total Units : 100 EA
    • Package Quantity : 100 EA
    • Package Weight : 0.000 lb.
    • Pallet - GTIN - Package : 70781810015253
    • Pallet Height : 45.000 in
    • Pallet Length : 48.000 in
    • Pallet Weight : 2574.000 lb.
    • Pallet Width : 48.000 in
    • Standard Package Quantity : 100
  • Certifications
    • CSA Approved : No
    • cULus : No
    • ETL : No
    • UL Listed Direct Burial : Yes
    • UL Recognized : No
    • EU RoHS Indicator : Yes
