3M™ Motor Lead Pigtail Splice 5302, 1 kV, 1-Hole Lug Connection, Feeder: 2-1/0 AWG , Motor Lead: 4-1/0 AWG , 1/Case

600V MOTOR KIT 3SPLICES/KIT

MMM5302 5302 54007122647
131.52 / Kit
http://schema.org/OutOfStock
Mayer-DDS-3M™ Motor Lead Pigtail Splice 5302, 1 kV, 1-Hole Lug Connection, Feeder: 2-1/0 AWG , Motor Lead: 4-1/0 AWG , 1/Case-2
  • Applications: Cross Linked Polyethylene Cable, Ethylene Propylene Rubber Cable, For Insulating And Sealing Motor Lead Connections For Copper Conductors, Polyethylene Cable
  • Country of Origin: USA
  • Splice Type: Pigtail Only
Looking for a product that can withstand extreme temperatures that also makes it easy to splice motor lead cables to incoming feeder cables? If so, the 3M Motor Lead Pigtail Splice Kit 5300 Series is just what you are looking for. This kit is ideally used with copper compression, 1-hole lugs, and accommodates pigtail connections at 1kV or less.
QTY
  • Product Description
  • Features
  • Specifications
Looking for a product that can withstand extreme temperatures that also makes it easy to splice motor lead cables to incoming feeder cables? If so, the 3M Motor Lead Pigtail Splice Kit 5300 Series is just what you are looking for. This kit is ideally used with copper compression, 1-hole lugs, and accommodates pigtail connections at 1kV or less.
  • Features
    • Splices motor lead cables to incoming feeder cables
    • Designed to use with copper compression, 1-hole lugs

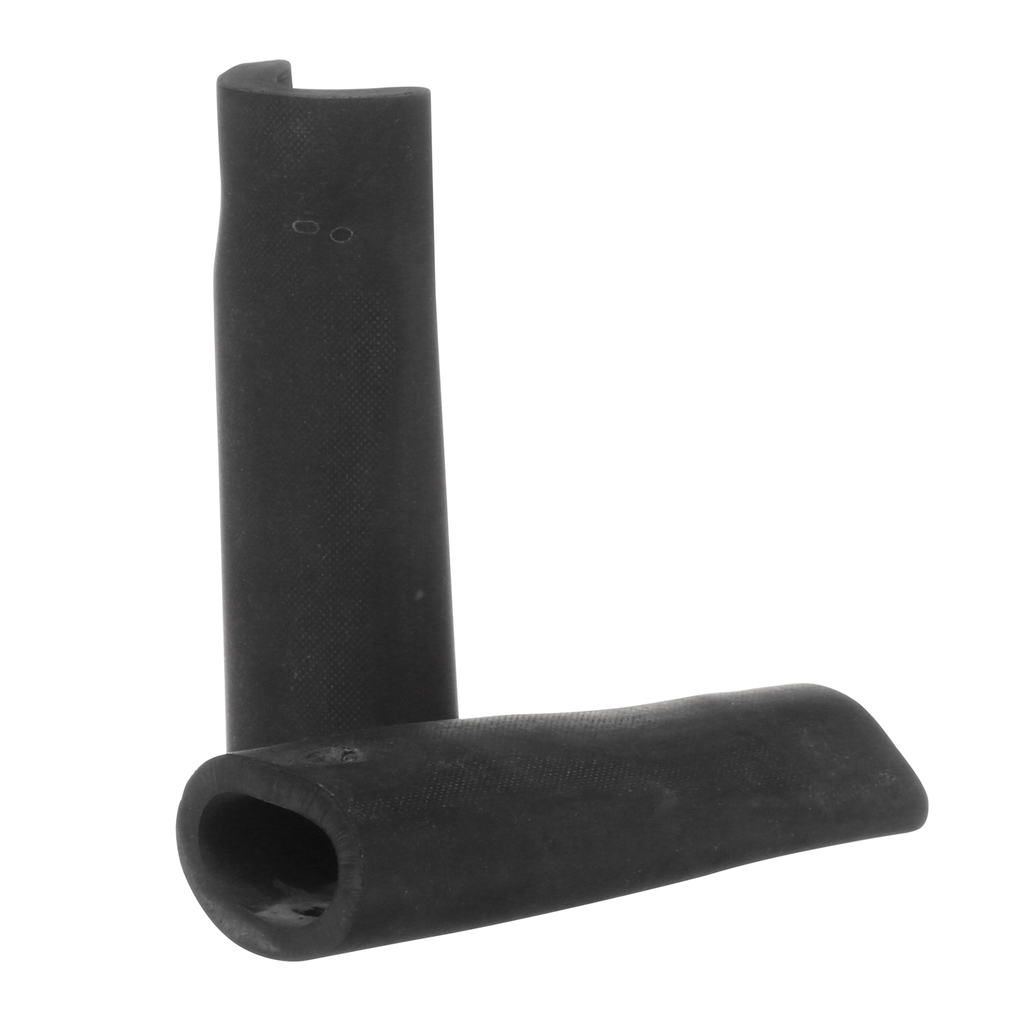

    • Slip-on lug cover is made of durable EPDM rubber
    • For pigtail (stub) connections at 1000V or less
    • Includes 3 each of pigtail lug covers, mastic sealing strips, and tubes of silicone grease, plus an instruction sheet
    • CSA Certified and RoHS 2011/65/EU Compliant
  • Specifications
    • Country of Origin : United States
    • ETIM Class 8.0 : EC000910
    • Maximum Feeder Lead Size : 1/0 AWG
    • Maximum Motor Lead Size : 1/0 AWG
    • Maximum Operating Voltage : 1 kV
    • Splice Type : Pigtail Only
    • Cable Shielding : Single Conductor Cable
    • Application : Cross Linked Polyethylene Cable, Ethylene Propylene Rubber Cable, For Insulating and Sealing Motor Lead Connections for Copper Conductors, Polyethylene Cable
    • Application/Industry : Commercial Construction
    • Family : 5300
    • Insulation Outside Diameter : 0.34-0.54 Inch
    • Insulation Outside Diameter Range : 0.34-0.54 in
    • Insulation Outside Diameter Range (Metric) : 8.6 - 13.7 mm
    • Kit Includes : (3) Pigtail Lug Covers
    • Lug Cover Inner Diameter : 0.95 in
    • Lug Cover Inner Diameter (Metric) : 24.1 mm
    • Lug Cover Length : 4.2 in
    • Lug Cover Length (Metric) : 106.7 mm
    • Manufacturing Origin : USA
    • Maximum Bolt Length : 3/4 in
    • Maximum Bolt Length (Metric) : 19.1 mm
    • Packaging : 1/Case
    • Product Color : Black
    • Range Feeder Cable (AWG & kcmil) : 2-1/0
    • RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
    • Units per Case : 1.0
