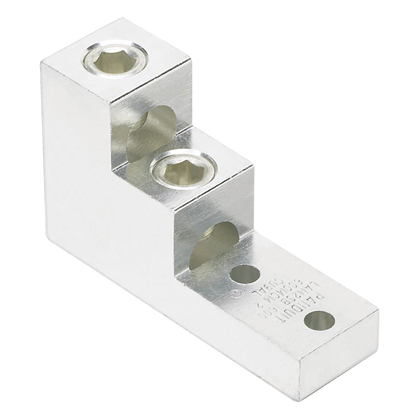

Pan-Lug™ LAM2SB600-38-1Y Mech Con-Lugs, Tin Plt Al, Two 3/8" Stud, PK1

MECH LUG 2BRL/2 3/8HOLE #2-600

PANLAM2SB600381Y LAM2SB600-38-1Y 74983592852
88.21 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ LAM2SB600-38-1Y Mech Con-Lugs, Tin Plt Al, Two 3/8" Stud, PK1-1
  • Country of Origin: USA
  • Height: 3 in, 76.2 mm
  • Material: Aluminum
  • Overall Length: 124.7 mm, 4.91 in
  • Tongue Length: 2.34 in, 59.4 mm
  • Tongue Thickness: 0.75 in, 19.1 mm
  • Tongue Type: Straight
  • Tongue Width: 1.5 in, 38.1 mm
  • Type: Mechanical Lug
Two-hole, aluminum, two barrel lug, dual barrel, type LAM2SB, #2 AWG - 600 kcmil, 3/8 (9.5mm) stud hole.
QTY
  • Product Description
  • Specifications
Two-hole, aluminum, two barrel lug, dual barrel, type LAM2SB, #2 AWG - 600 kcmil, 3/8 (9.5mm) stud hole.
  • Packaging Details
    • UPC : 07498359285
    • GTIN Package : 00074983592852
    • Standard Package Volume Ft3 : 0.0493
    • Standard Package Weight Pounds : 1.0650
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 5.75
    • Std Package Length MM : 146.05
    • Std Package Width In : 3.4
    • Std Package Width MM : 86.36
    • Std. Pkg. UOM : Piece
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : US
    • RoHS Compliant : Compliant
    • EAN : 00074983592852
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
  • Specifications
    • Product Segment : IEI
    • Product Type : Mechanical Lug
    • Base Material : Aluminum
    • Number of Stud Holes : 2
    • Barrel Type : Vertical 2-Barrel
    • Tongue Type : Straight Tongue
    • Tongue Angle : Straight
    • Finish/Coating : Tin-Plated
    • Stud Hole Size (In.) : 3/8
    • Stud Hole Size (mm) : 9.5
    • Stud Hole Spacing (In.) : 1.38
    • Stud Hole Spacing (mm) : 35.1
    • Screw Type : Hex
    • Maximum Aluminum Conductor Size (kcmil) : 600
    • Minimum Aluminum Conductor Size (AWG) : 2
    • Maximum Copper Conductor Size (kcmil) : 600
    • Minimum Copper Conductor Size (AWG STR) : 2
    • Tongue Length (In.) : 2.34
    • Tongue Length (mm) : 59.4
    • Tongue Width (mm) : 38.1
    • Tongue Width (In.) : 1.5
    • Tongue Thickness (mm) : 19.1
    • Tongue Thickness (In.) : 0.75
    • Overall Length (In.) : 4.91
    • Overall Length (mm) : 124.7
    • Overall Height (mm) : 76.2
    • Overall Height (In.) : 3
    • Standards Met : UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C
    • CSA Temperature Rating (°C) : 90
    • UL Temperature Rating (°C) : 90
    • Maximum Voltage (V) : 600
    • Note : Stranded Aluminum or Copper Code Conductor
    • Sub Brand : Pan-Lug™
    • Application : Stranded Aluminum or Copper Code Conductor
