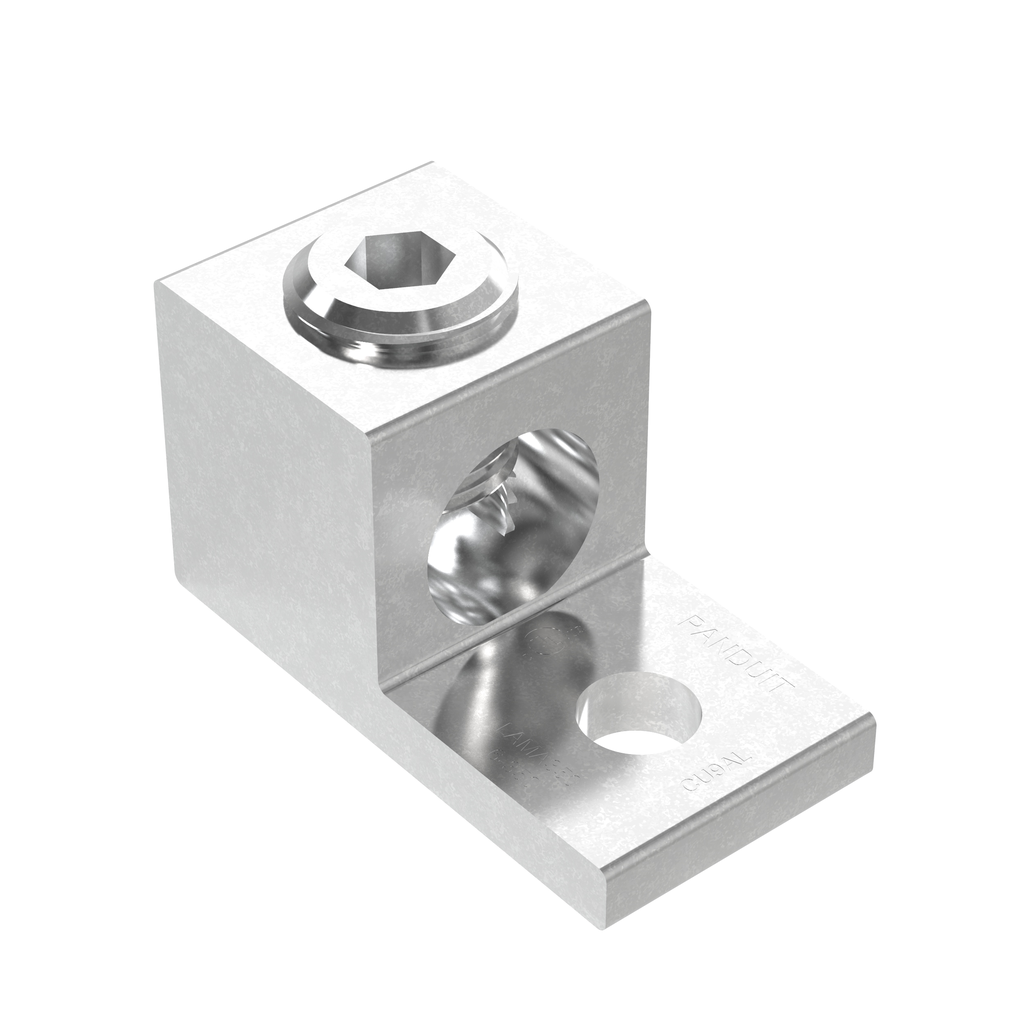

The LAMA350-38-QY Tin-Plated Aluminum Mechanical Lug, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and Lug. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.

• Specifications
• Product Segment : IEI
• Product Type : Mechanical Lug
• Base Material : Aluminum
• Number of Stud Holes : 1
• Barrel Type : Single Barrel
• Tongue Type : Straight Tongue
• Tongue Angle : Straight
• Finish/Coating : Tin-Plated
• Stud Hole Size (In.) : 3/8
• Stud Hole Size (mm) : 9.5
• Screw Type : Hex
• Maximum Aluminum Conductor Size (kcmil) : 350
• Minimum Aluminum Conductor Size (AWG) : 6
• Maximum Copper Conductor Size (kcmil) : 350
• Minimum Copper Conductor Size (AWG STR) : 6
• Tongue Length (In.) : 1.12
• Tongue Length (mm) : 28.4
• Tongue Width (mm) : 28.7
• Tongue Width (In.) : 1.13
• Tongue Thickness (In.) : 0.25
• Tongue Thickness (mm) : 6.3
• Overall Length (In.) : 2.25
• Overall Length (mm) : 57.1
• Overall Width (In.) : 1.13
• Overall Width (mm) : 28.7
• Overall Height (In.) : 1.25
• Overall Height (mm) : 31.7
• Standards Met : cULus and CSA certified for use up to 600V and temperature rated to 90C
• CSA Temperature Rating (°C) : 90
• UL Temperature Rating (°C) : 90
• Maximum Voltage (V) : 600
• Wire Strip Length (In.) : 1.13
• Wire Strip Length (mm) : 28.7
• Note : Stranded Aluminum or Copper Code Conductor
• Sub Brand : Pan-Lug™
• Application : Stranded Aluminum or Copper Code Conductor
• Packaging Details
• UPC : 07498359615
• GTIN Package : 00074983596157
• Standard Package Volume Ft3 : 0.0089
• Standard Package Weight Pounds : 3.5950
• Std Package Height In : 3.45
• Std Package Height MM : 87.63
• Std Package Length In : 8.15
• Std Package Length MM : 207.01
• Std Package Width In : 4.45
• Std Package Width MM : 113.03
• Std. Pkg. UOM : Piece
• UOM EA PK : PK
• Std. Pkg. Qty. : 25
• GTIN Carton : 50074983596152
• Standard Carton Volume Ft3 : 0.0890
• Standard Carton Weight Pounds : 35.9500
• Std Carton Height In : 5
• Std Carton Height MM : 127
• Std Carton Length In : 20.5
• Std Carton Length MM : 520.7
• Std Carton Width In : 10.5
• Std Carton Width MM : 266.7
• Std Ctn Qty : 250
• Min. Order UOM : Piece
• Country of Origin 2Digit : IN
• RoHS Compliant : Compliant
• EAN : 00074983596157
• REACH Status : N
• California Pro65 Cancer : No
• ARRA Compliant : Y
• Mercury Content Indicator : N
• Lead Content Indicator : N
• Restricted Use of Hazardous Substances : N
• Hazardous Material Flag : N
• Min Order Qty : 1.0000
