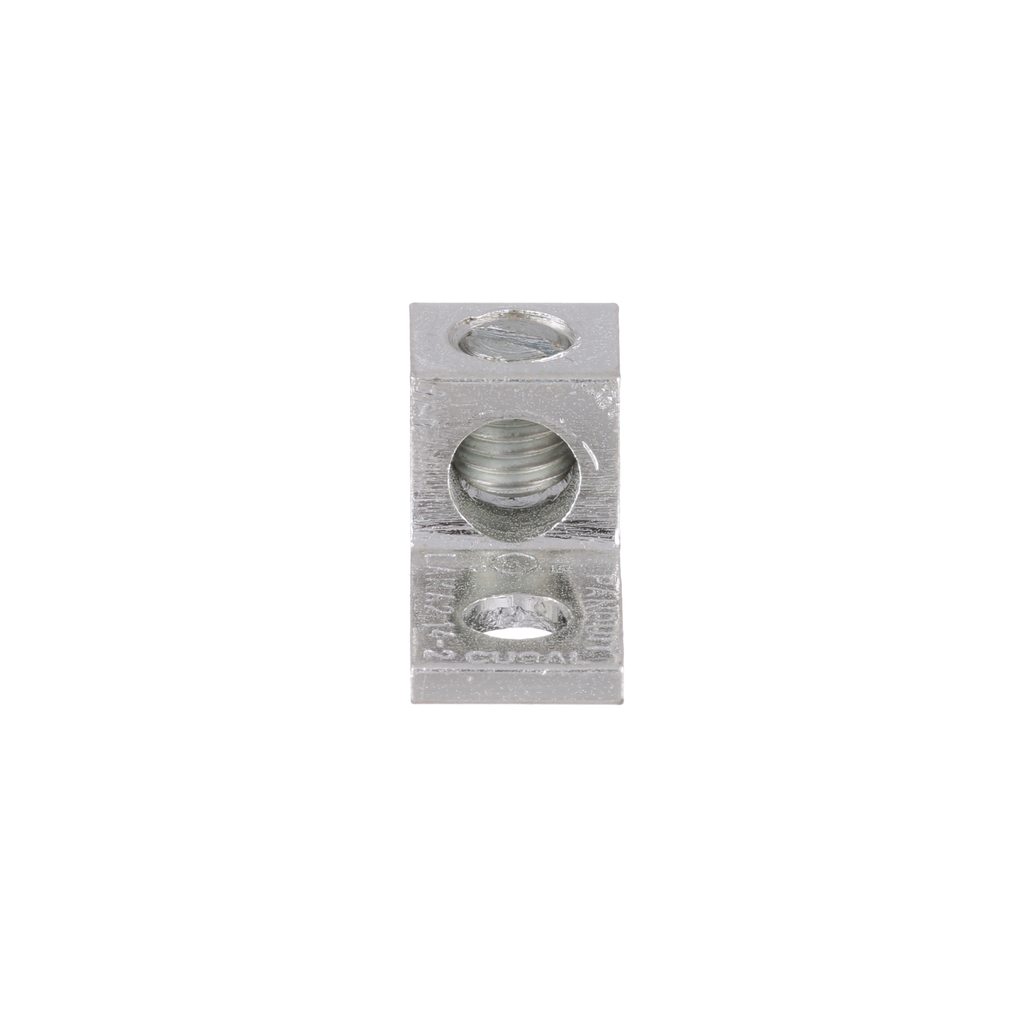

Pan-Lug™ LAMA2-14-QY Mech Con, One Hole Lug, 2, Tin Plt Al, Strt, One 1/4" Stud

MECH LUG 1 1/4HOLE #14-#2

PANLAMA214QY LAMA2-14-QY 74983596126
2.15 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ LAMA2-14-QY Mech Con, One Hole Lug, 2, Tin Plt Al, Strt, One 1/4" Stud-1
  • Country of Origin: China, USA
  • Height: 0.55 in, 13.9 mm
  • Material: Aluminum
  • Overall Length: 1.17 in, 29.7 mm
  • Tongue Length: 0.7 in, 17.7 mm
  • Tongue Thickness: 0.11 in, 2.7 mm
  • Tongue Type: Straight
  • Tongue Width: 0.5 in, 12.7 mm
  • Type: Mechanical Lug
  • Width: 0.5 in, 12.7 mm
The LAMA2-14-QY Tin-Plated Aluminum Mechanical Connector, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and connector. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.
QTY
  • Product Description
  • Specifications
The LAMA2-14-QY Tin-Plated Aluminum Mechanical Connector, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and connector. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.
  • Packaging Details
    • UPC : 07498359612
    • GTIN Package : 00074983596126
    • Standard Package Volume Ft3 : 0.0184
    • Standard Package Weight Pounds : 0.5700
    • Std Package Height In : 2.55
    • Std Package Height MM : 64.77
    • Std Package Length In : 4.3
    • Std Package Length MM : 109.22
    • Std Package Width In : 3.05
    • Std Package Width MM : 77.47
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 25
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : US,CN
    • RoHS Compliant : Compliant
    • EAN : 00074983596126
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : N
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
  • Specifications
    • Product Segment : IEI
    • Product Type : Mechanical Lug
    • Base Material : Aluminum
    • Number of Stud Holes : 1
    • Barrel Type : Single Barrel
    • Tongue Type : Straight Tongue
    • Tongue Angle : Straight
    • Finish/Coating : Tin-Plated
    • Stud Hole Size (In.) : 1/4
    • Stud Hole Size (mm) : 6.4
    • Screw Type : Slotted
    • Maximum Aluminum Conductor Size (AWG) : 2
    • Minimum Aluminum Conductor Size (AWG) : 14
    • Maximum Copper Conductor Size (AWG STR) : 2
    • Minimum Copper Conductor Size (AWG STR) : 14
    • Tongue Length (In.) : 0.7
    • Tongue Length (mm) : 17.7
    • Tongue Width (In.) : 0.5
    • Tongue Width (mm) : 12.7
    • Tongue Thickness (mm) : 2.7
    • Tongue Thickness (In.) : 0.11
    • Overall Length (mm) : 29.7
    • Overall Length (In.) : 1.17
    • Overall Width (mm) : 12.7
    • Overall Width (In.) : 0.5
    • Overall Height (mm) : 13.9
    • Overall Height (In.) : 0.55
    • Standards Met : cULus Listed for use up to 600V & Temperature Rated to 90°C
    • CSA Temperature Rating (°C) : 90
    • UL Temperature Rating (°C) : 90
    • Maximum Voltage (V) : 600
    • Wire Strip Length (In.) : 0.47
    • Wire Strip Length (mm) : 11.9
    • Note : Stranded Aluminum or Copper Code Conductor
    • Sub Brand : Pan-Lug™
    • Application : Stranded Aluminum or Copper Code Conductor
