Pan-Lug™ LAM2A600-12-6Y Mech Con-Lugs, 600, Tin Plt Al, Strt, One 1/2" Stud, PK6

MECH LUG 2BARREL #2-600

PANLAM2A600126Y LAM2A600-12-6Y 74983592708
32.81 / EA
http://schema.org/OutOfStock

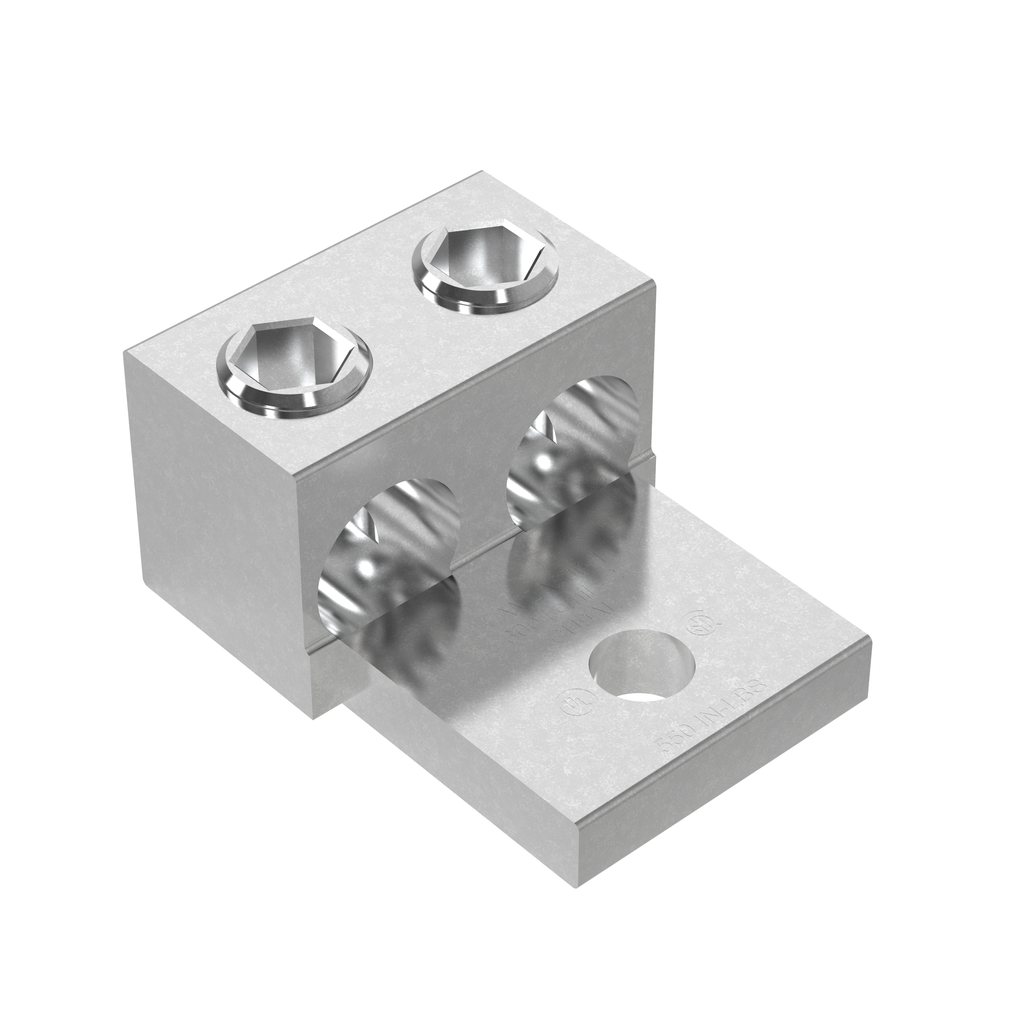

Mayer-DDS-Pan-Lug™ LAM2A600-12-6Y Mech Con-Lugs, 600, Tin Plt Al, Strt, One 1/2" Stud, PK6-1
  • Country of Origin: Mexico
  • Height: 1.56 in, 39.6 mm
  • Material: Aluminum
  • Overall Length: 3.19 in, 81 mm
  • Tongue Length: 1.81 in, 45.9 mm
  • Tongue Thickness: 0.44 in, 11.2 mm
  • Tongue Type: Straight
  • Tongue Width: 2 in, 50.8 mm
  • Type: Mechanical Lug
  • Width: 2.38 in, 60.4 mm
The LAM2A600-12-6Y Tin-Plated Aluminum Mechanical Lug, one-hole, two barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and Lug. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.
QTY
  • Product Description
  • Specifications
The LAM2A600-12-6Y Tin-Plated Aluminum Mechanical Lug, one-hole, two barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and Lug. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.
  • Packaging Details
    • UPC : 07498359270
    • GTIN Package : 00074983592708
    • Standard Package Volume Ft3 : 0.0893
    • Standard Package Weight Pounds : 3.0798
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 8.15
    • Std Package Length MM : 207.01
    • Std Package Width In : 4.45
    • Std Package Width MM : 113.03
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 6
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983592708
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
  • Specifications
    • Product Segment : IEI
    • Product Type : Mechanical Lug
    • Base Material : Aluminum
    • Number of Stud Holes : 1
    • Barrel Type : Two Barrel
    • Tongue Type : Straight Tongue
    • Tongue Angle : Straight
    • Finish/Coating : Tin-Plated
    • Stud Hole Size (mm) : 12.7
    • Stud Hole Size (In.) : 1/2
    • Screw Type : Hex
    • Maximum Aluminum Conductor Size (kcmil) : 600
    • Minimum Aluminum Conductor Size (AWG) : 2
    • Maximum Copper Conductor Size (kcmil) : 600
    • Minimum Copper Conductor Size (AWG STR) : 2
    • Tongue Length (mm) : 45.9
    • Tongue Length (In.) : 1.81
    • Tongue Width (mm) : 50.8
    • Tongue Width (In.) : 2
    • Tongue Thickness (In.) : 0.44
    • Tongue Thickness (mm) : 11.2
    • Overall Length (mm) : 81
    • Overall Length (In.) : 3.19
    • Overall Width (In.) : 2.38
    • Overall Width (mm) : 60.4
    • Overall Height (mm) : 39.6
    • Overall Height (In.) : 1.56
    • Standards Met : UL listed and CSA certified for use up to 600V and UL temperature rated to 90 degrees C
    • CSA Temperature Rating (°C) : 90
    • UL Temperature Rating (°C) : 90
    • Maximum Voltage (V) : 600
    • Wire Strip Length (In.) : 1.38
    • Wire Strip Length (mm) : 35
    • Note : Stranded Aluminum or Copper Code Conductor
    • Sub Brand : Pan-Lug™
    • Application : Stranded Aluminum or Copper Code Conductor
