StructuredGround™ LIAC4-22-C Lay-In Lug, 14-4 CU/AL AWG

LAY-IN LUG 1 #10HOLE #14-#4

PANLIAC422C LIAC4-22-C 74983390649
2.91 / EA
http://schema.org/OutOfStock

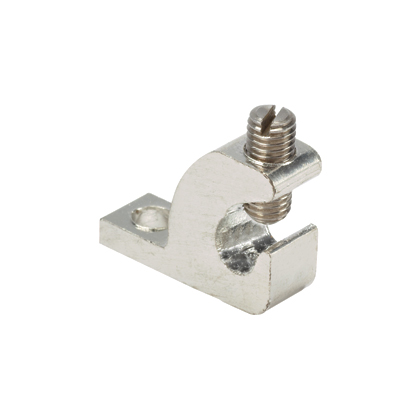

Mayer-DDS-StructuredGround™ LIAC4-22-C Lay-In Lug, 14-4 CU/AL AWG-1
  • Country of Origin: India
  • Height: 0.78 in, 19.8 mm
  • Material: Copper
  • Overall Length: 1.06 in, 26.9 mm
  • Type: Lay-In Lug
  • Width: 0.39 in, 9.9 mm
The LIAC4-22-C Tin-Plated Aluminum Lay-In-Lug, one-hole, is designed for quick installation of a continuous grounding conductors. The wide wire range-taking capability minimizes inventory requirements. UL Listed and temperature rated to 90°C.
QTY
  • Product Description
  • Specifications
The LIAC4-22-C Tin-Plated Aluminum Lay-In-Lug, one-hole, is designed for quick installation of a continuous grounding conductors. The wide wire range-taking capability minimizes inventory requirements. UL Listed and temperature rated to 90°C.
  • Specifications
    • Product Segment : IEI
    • Sub Brand : StructuredGround™
    • Material : Copper
    • Overall Length (In.) : 1.06
    • Overall Length (mm) : 26.9
    • Overall Width (In.) : 0.39
    • Overall Width (mm) : 9.9
    • Overall Height (In.) : 0.78
    • Overall Height (mm) : 19.8
    • Maximum Compatible Conductor Size (AWG STR) : 4
    • Minimum Compatible Conductor Size (AWG STR) : 14
    • Stud Hole Size (In.) : 0.22
    • Stud Hole Size (mm) : 5.6
    • Application : Utility/Ground Grid
    • Standards Met : cULus Listed 467, DB Rated
    • Product Type : Lay-In Lug
  • Packaging Details
    • UPC : 07498339064
    • GTIN Package : 00074983390649
    • Standard Package Volume Ft3 : 0.0036
    • Standard Package Weight Pounds : 1.9000
    • Std Package Height In : 3.5
    • Std Package Height MM : 88.9
    • Std Package Length In : 7.85
    • Std Package Length MM : 199.39
    • Std Package Width In : 3.5
    • Std Package Width MM : 88.9
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 100
    • GTIN Carton : 50074983390644
    • Standard Carton Volume Ft3 : 0.0365
    • Standard Carton Weight Pounds : 19.0000
    • Std Carton Height In : 3.25
    • Std Carton Height MM : 82.55
    • Std Carton Length In : 20.5
    • Std Carton Length MM : 520.7
    • Std Carton Width In : 10.5
    • Std Carton Width MM : 266.7
    • Std Ctn Qty : 1000
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : IN
    • RoHS Compliant : Compliant
    • EAN : 00074983390649
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
