AlMechLug,#4AWG-600kcmil,3/8StudPKG6Y

Name: AlMechLug,#4AWG-600kcmil,3/8StudPKG6Y
Brand: PANDUIT
SKU: PANLAMA600386Y
Price: 18.86 USD
Availability: OutOfStock

MECH LUG 1 3/8HOLE #2-600

PANLAMA600386Y LAMA600-38-6Y 74983596171

18.86 / EA

http://schema.org/OutOfStock

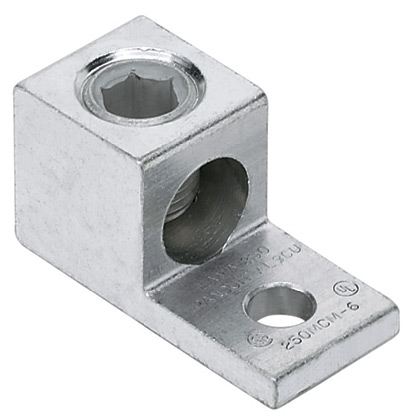

One-hole, aluminum, single barrel lug, type LAMA, #2 AWG - 600 kcmil, 3/8 (9.5mm) stud hole.

QTY

One-hole, aluminum, single barrel lug, type LAMA, #2 AWG - 600 kcmil, 3/8 (9.5mm) stud hole.

Product Segment : IEI
Product Type : Mechanical Lug
Base Material : Aluminum
Number of Stud Holes : 1
Barrel Type : Single Barrel
Tongue Type : Straight Tongue
Tongue Angle : Straight
Finish/Coating : Tin-Plated
Stud Hole Size (In.) : 3/8
Stud Hole Size (mm) : 9.5
Screw Type : Hex
Maximum Aluminum Conductor Size (kcmil) : 600
Minimum Aluminum Conductor Size (AWG) : 2
Maximum Copper Conductor Size (kcmil) : 600
Minimum Copper Conductor Size (AWG STR) : 2
Tongue Length (mm) : 45.7
Tongue Length (In.) : 1.81
Tongue Width (In.) : 1.6
Tongue Width (mm) : 40.6
Tongue Thickness (mm) : 11.1
Tongue Thickness (In.) : 0.44
Overall Length (mm) : 80.9
Overall Length (In.) : 3.18
Overall Width (In.) : 1.6
Overall Width (mm) : 40.6
Overall Height (In.) : 1.6
Overall Height (mm) : 39.8
Standards Met : cULus and CSA certified for use up to 600V and temperature rated to 90C
CSA Temperature Rating (°C) : 90
UL Temperature Rating (°C) : 90
Maximum Voltage (V) : 600
Wire Strip Length (In.) : 1.38
Wire Strip Length (mm) : 36
Note : Stranded Aluminum or Copper Code Conductor
Sub Brand : Pan-Lug™
