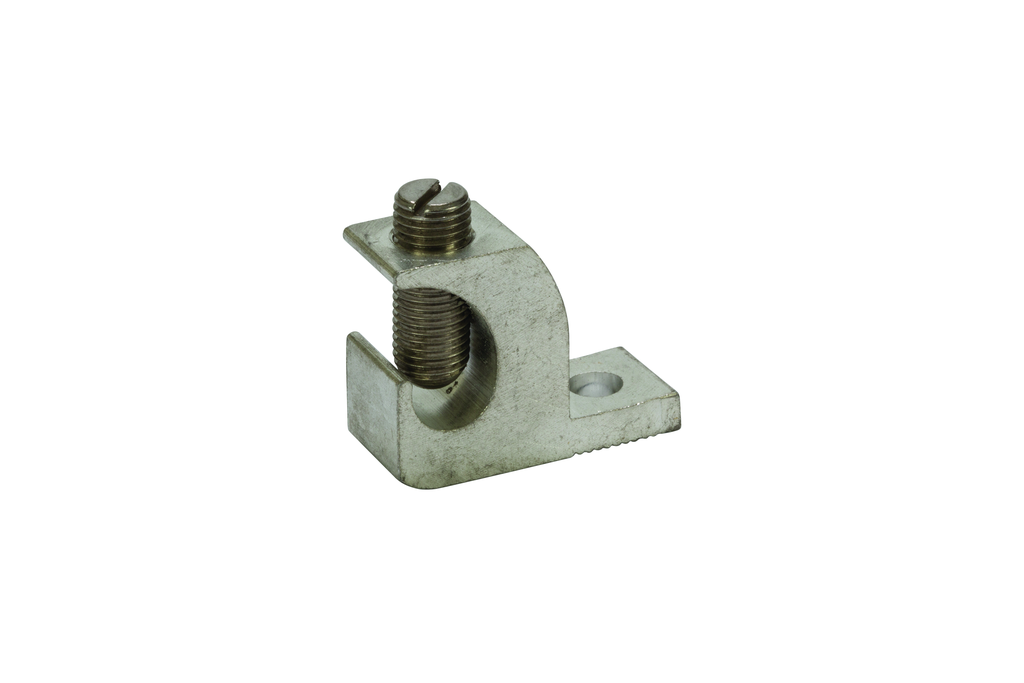

AL Lay In Connector 1/0-8

LAY IN CONNECTOR

NSIGLA0 GLA-0 662381001917
4.42 / Each
http://schema.org/OutOfStock
Mayer-DDS-AL Lay In Connector 1/0-8-1
  • Country of Origin: India
  • Finish: Tin-Plated
  • Height: 1.1 in
  • Length: 1.5 in
  • Material: 6061T-6 Aluminum Alloy
  • Max. Temperature: 90 °C
  • Voltage: 600 V
  • Warranty Length: 1 yr
  • Width: 0.6 in
Lay In Connector 1/0 - 8 AWG Lay-in connectors offer the ultimate in flexibility. Excellent for grounding and continuous loop applications. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.
QTY
  • Product Description
  • Features
  • Specifications
Lay In Connector 1/0 - 8 AWG Lay-in connectors offer the ultimate in flexibility. Excellent for grounding and continuous loop applications. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.
  • Features
    • Lay-in connectors offer the ultimate in flexibility
    • Excellent for grounding and continuous loop applications
    • Made of 6061T-6 aluminum alloy
    • Electro-tin plated for low contact resistance and stainless steel screw
    • For use with copper or aluminum conductors
  • Certifications and Standards
    • cULus
    • UL Listed
    • UL 486B
  • Specifications
    • Country of Origin : India
    • Length : 1.5 in
    • Width : 0.6 in
    • Height : 1.1 in
    • Collection Folder : GLA-0
    • NPD Date Electrical : 04/01/2010 00:00:00
    • MATERIAL : 6061T-6 Aluminum Alloy
    • INNER HEIGHT : 3.05
    • WARRANTY : 1 Year
    • Division : Electrical H1
    • Field Application : Terminate
    • INNER WEIGHT : 3.115
    • INNER WIDTH : 6.1
    • FINISH : Tin Plated
    • INNER LENGTH : 8.75
    • Max Temperature : 90 C
    • Sub-Division : Electrical-E H2
    • VOLTAGE RATING : 600 V
    • PRODUCT FAMILY : Connectivity
    • Product Assortment : Aluminum Mechanical Terminations
    • Product Series : GLA
    • Future Plan : Rebrand as Polaris
    • Tang Thickness : 0.22 IN
    • Conductor Type : Copper, Aluminum
    • Wire Range : 1/0 AWG - 8 AWG
    • Mounting Hole Position : 0.3 IN
    • Screw Material : Steel
