LOCKTITE CU 1HOLE LUG 300-500

MECH LUG 1H 1/2IN 300-500 MCM

TNB31015 31015 786210310152
329.99 / CASE
http://schema.org/OutOfStock
Mayer-DDS-LOCKTITE CU 1HOLE LUG 300-500-1

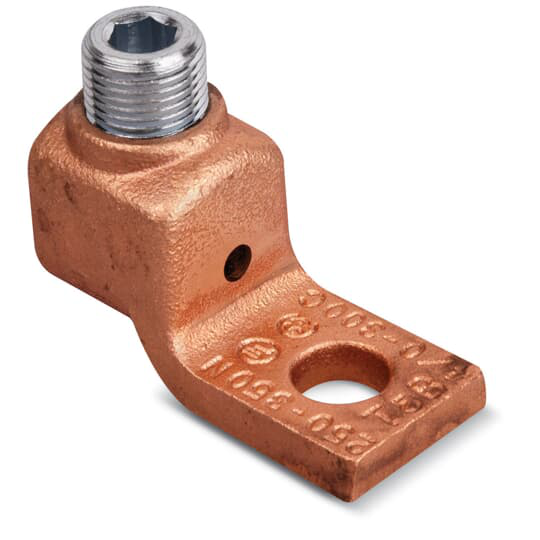

Locktite Copper One-Hole Lug for Conductor Range 300 - 500 kcmil or 400 - 500 NAVY. Length 3-1/16 inch, Width 1-3/8 inch, Pad Thickness 11/32 inch. Pad Length 1-11/16 inch. Bolt Size 1/2 inch, Height 1-13/16 inch.
QTY
  • Product Description
  • Specifications
Locktite Copper One-Hole Lug for Conductor Range 300 - 500 kcmil or 400 - 500 NAVY. Length 3-1/16 inch, Width 1-3/8 inch, Pad Thickness 11/32 inch. Pad Length 1-11/16 inch. Bolt Size 1/2 inch, Height 1-13/16 inch.
  • Additional Information
    • Brand / Label : Blackburn
    • Effective Date : 19680403
    • Material : Copper
    • Product Name : ELECTRICAL TERMINAL
    • Product Type : Locktite Connectors
    • Special Functions : Easily installed with key wrench. Convenient peephole permits easy inspection.
    • Standards : UL E9809
  • Classifications
    • WEEE Category : Product Not in WEEE Scope
    • IDEA Granular Category Code (IGCC) : 4541 >> Mechanical connectors
  • Ordering
    • Country of Origin : Mexico (MX)
    • Selling Unit of Measure : each
