Pan-Lug™ LCDN2-14A-Q Comp. Lug, Narrow, Tin Plt Copper, Two 0.25" Stud, PK25

COMP LUG NARROW 2 1/4HOLE #2

PANLCDN214AQ LCDN2-14A-Q 074983444595
10.01 / EA
http://schema.org/OutOfStock

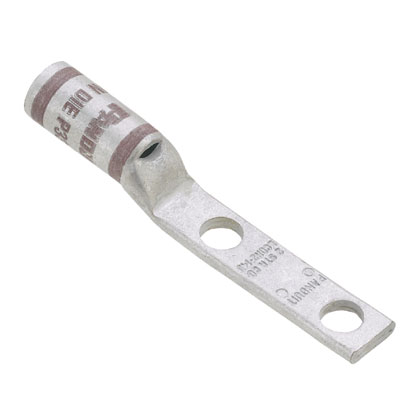

Mayer-DDS-Pan-Lug™ LCDN2-14A-Q Comp. Lug, Narrow, Tin Plt Copper, Two 0.25" Stud, PK25-1
  • Barrel Length: 0.88 in, 22.4 mm
  • Material: Copper
  • Overall Length: 2.4 in, 61 mm
  • Tongue Thickness: 0.12 in, 3 mm
  • Tongue Type: Narrow
  • Tongue Width: 0.42 in, 10.7 mm
  • Type: Compression Lug
Two-hole, standard barrel with window, narrow tongue lug, #2 AWG wire, 1/4 stud hole, .63 hole spacing.
QTY
  • Product Description
  • Features
  • Specifications
Two-hole, standard barrel with window, narrow tongue lug, #2 AWG wire, 1/4 stud hole, .63 hole spacing.
  • Standards and Certifications
    • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164
  • Prop 65
    • No
  • Packaging Details
    • UPC : 07498344459
    • GTIN Package : 00074983444595
    • Standard Package Volume Ft3 : 0.0328
    • Standard Package Weight Pounds : 0.9725
    • Std Package Height In : 3.45
    • Std Package Height MM : 87.63
    • Std Package Length In : 4.65
    • Std Package Length MM : 118.11
    • Std Package Width In : 3.35
    • Std Package Width MM : 85.09
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 25
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • EAN : 00074983444595
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
  • Specifications
    • Country of Origin : Mexico
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Maximum Voltage (kV) : 35
    • Stud Hole Size (In.) : 1/4
    • Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
    • Tongue Width (mm) : 10.7
    • UL Temperature Rating (°C) : 90
    • Product Type : Compression Lug
    • Tongue Thickness (mm) : 3
    • Base Material : Copper
    • Color Code : Brown
    • Barrel Length (In.) : 0.88
    • Stud Hole Spacing (In.) : 0.63
    • Tongue Angle : Straight
    • CSA Temperature Rating (°C) : 90
    • Wire Strip Length (In.) : 15/16
    • Panduit Die Index Number : P33
    • Wire Strip Length (mm) : 23.8
    • Barrel Length (mm) : 22.4
    • T & B Die Index Number : 33
    • Sub Brand : Pan-Lug™
    • Tongue Width (In.) : 0.42
    • Stud Hole Size (mm) : 6.4
    • Copper Code Conductor Size (AWG) : 2
    • Tongue Thickness (In.) : 0.12
    • Burndy Die Index Number : 10
    • Overall Length (In.) : 2.4
    • Stud Hole Spacing (mm) : 16
    • Barrel Type : Standard
    • Tongue Type : Narrow
    • Overall Length (mm) : 61
    • Finish/Coating : Tin-Plated
    • Inspection Window : Yes
    • Number of Stud Holes : 2
    • Barrel Entry : Beveled
