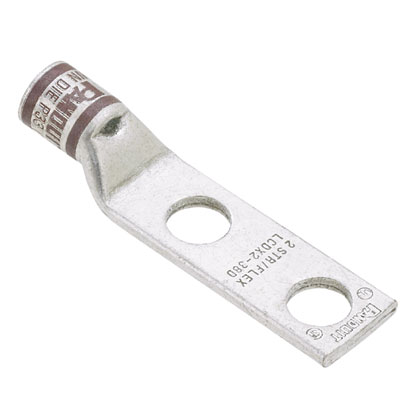

Pan-Lug™ LCDX1/0-38D-X Comp. Lug, 1/0, Tin Plt Copper, Two 0.37" Stud, PK10

COMP LUG FLEX 2 3/8HOLE #1/0

PANLCDX1038DX LCDX1/0-38D-X 74983423798
10.18 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ LCDX1/0-38D-X Comp. Lug, 1/0, Tin Plt Copper, Two 0.37" Stud, PK10-1
  • Barrel Length: 0.72 in, 18.3 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Overall Length: 2.89 in, 73.4 mm
  • Tongue Thickness: 0.13 in, 3.3 mm
  • Tongue Type: Standard
  • Tongue Width: 0.85 in, 21.6 mm
  • Type: Compression Lug
Two-hole, flex lug, 1/0 AWG wire, 3/8 stud hole, 1 hole spacing.
QTY
  • Product Description
  • Features
  • Specifications
Two-hole, flex lug, 1/0 AWG wire, 3/8 stud hole, 1 hole spacing.
  • Prop 65
    • No
  • Standards and Certifications
    • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Base Material : Copper
    • Class M Copper Flex Conductor Size (AWG) : 1/0
    • Class H Copper Flex Conductor Size (AWG) : 1/0
    • Overall Length (mm) : 73.4
    • CSA Temperature Rating (°C) : 90
    • Overall Length (In.) : 2.89
    • Stud Hole Size (mm) : 9.5
    • Stud Hole Size (In.) : 3/8
    • Tongue Thickness (In.) : 0.13
    • Barrel Length (In.) : 0.72
    • Tongue Width (mm) : 21.6
    • Tongue Angle : Straight
    • Class G Copper Flex Conductor Size (AWG) : 1/0
    • DLO Copper Flex Conductor Size (AWG) : 1/0
    • Color Code : Pink
    • Stud Hole Spacing (In.) : 1
    • Burndy Die Index Number : 12
    • Finish/Coating : Tin-Plated
    • Barrel Type : Standard
    • Tongue Type : Standard
    • Product Type : Compression Lug
    • Maximum Voltage (kV) : 35
    • Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
    • Class K Copper Flex Conductor Size (AWG) : 1/0
    • Tongue Width (In.) : 0.85
    • Stud Hole Spacing (mm) : 25.4
    • Class I Copper Flex Conductor Size (AWG) : 1/0
    • Copper Code Conductor Size (AWG) : 1/0
    • Tongue Thickness (mm) : 3.3
    • UL Temperature Rating (°C) : 90
    • Sub Brand : Pan-Lug™
    • T & B Die Index Number : 42
    • Barrel Length (mm) : 18.3
    • Wire Strip Length (In.) : 3/4
    • Panduit Die Index Number : P42
    • Wire Strip Length (mm) : 19.1
    • Barrel Entry : Beveled
    • Number of Stud Holes : 2
    • Inspection Window : Yes
  • Packaging Details
    • UPC : 07498342379
    • GTIN Package : 00074983423798
    • Standard Package Volume Ft3 : 0.0328
    • Standard Package Weight Pounds : 1.0580
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 4.65
    • Std Package Length MM : 118.11
    • Std Package Width In : 3.45
    • Std Package Width MM : 87.63
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983423798
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
