Pan-Lug™ LCAN4/0-38-X Comp. Lug, 4/0, Narrow, Tin Plt Copper, One 3/8" Stud

COMP LUG NARROW 1 3/8HOLE #4/0

PANLCAN4038X LCAN4/0-38-X 074983603404
0.00 / EA
http://schema.org/OutOfStock

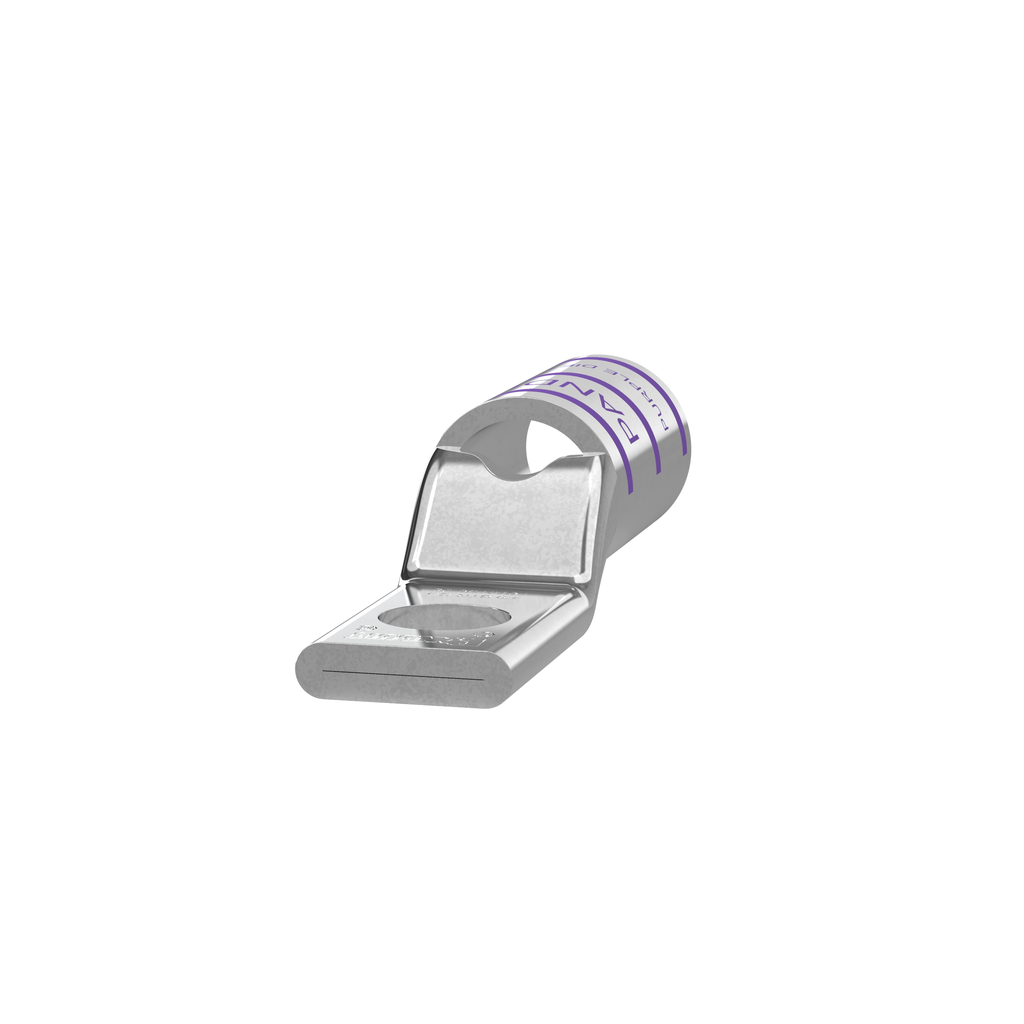

Mayer-DDS-Pan-Lug™ LCAN4/0-38-X Comp. Lug, 4/0, Narrow, Tin Plt Copper, One 3/8" Stud-1
  • Barrel Length: 1.19 in, 30.2 mm
  • Material: Copper
  • Overall Length: 2.45 in, 62.2 mm
  • Tongue Thickness: 0.15 in, 3.8 mm
  • Tongue Type: Narrow
  • Tongue Width: 0.71 in, 18 mm
  • Type: Compression Lug
The LCAN4/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, narrow-tongue, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
QTY
  • Product Description
  • Features
  • Specifications
The LCAN4/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, narrow-tongue, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
  • Prop 65
    • No
  • Standards and Certifications
    • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164
  • Specifications
    • Country of Origin : Mexico
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Burndy Die Index Number : 15
    • Product Type : Compression Lug
    • Stud Hole Size (mm) : 9.5
    • Color Code : Purple
    • Overall Length (In.) : 2.45
    • Base Material : Copper
    • CSA Temperature Rating (°C) : 90
    • Tongue Type : Narrow
    • Tongue Angle : Straight
    • Wire Strip Length (mm) : 31.8
    • Tongue Width (In.) : 0.71
    • Barrel Type : Standard
    • Maximum Voltage (kV) : 35
    • Sub Brand : Pan-Lug™
    • Finish/Coating : Tin-Plated
    • Panduit Die Index Number : P54
    • Barrel Length (In.) : 1.19
    • UL Temperature Rating (°C) : 90
    • Tongue Width (mm) : 18
    • Overall Length (mm) : 62.2
    • Barrel Length (mm) : 30.2
    • Stud Hole Size (In.) : 3/8
    • Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
    • T & B Die Index Number : 54
    • Stud Hole Spacing (mm) : 0
    • Wire Strip Length (In.) : 1-1/4
    • Tongue Thickness (In.) : 0.15
    • Tongue Thickness (mm) : 3.8
    • Copper Code Conductor Size (AWG) : 4/0
    • Number of Stud Holes : 1
    • Inspection Window : Yes
    • Barrel Entry : Beveled
  • Packaging Details
    • UPC : 07498360340
    • GTIN Package : 00074983603404
    • Standard Package Volume Ft3 : 0.0328
    • Standard Package Weight Pounds : 1.2500
    • Std Package Height In : 3.45
    • Std Package Height MM : 87.63
    • Std Package Length In : 4.7
    • Std Package Length MM : 119.38
    • Std Package Width In : 3.4
    • Std Package Width MM : 86.36
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • EAN : 00074983603404
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 15,120
    • Pallet Volume : 0.000000
    • Pallet Weight : 1,890.0000
    • RoHS Compliant : Compliant
