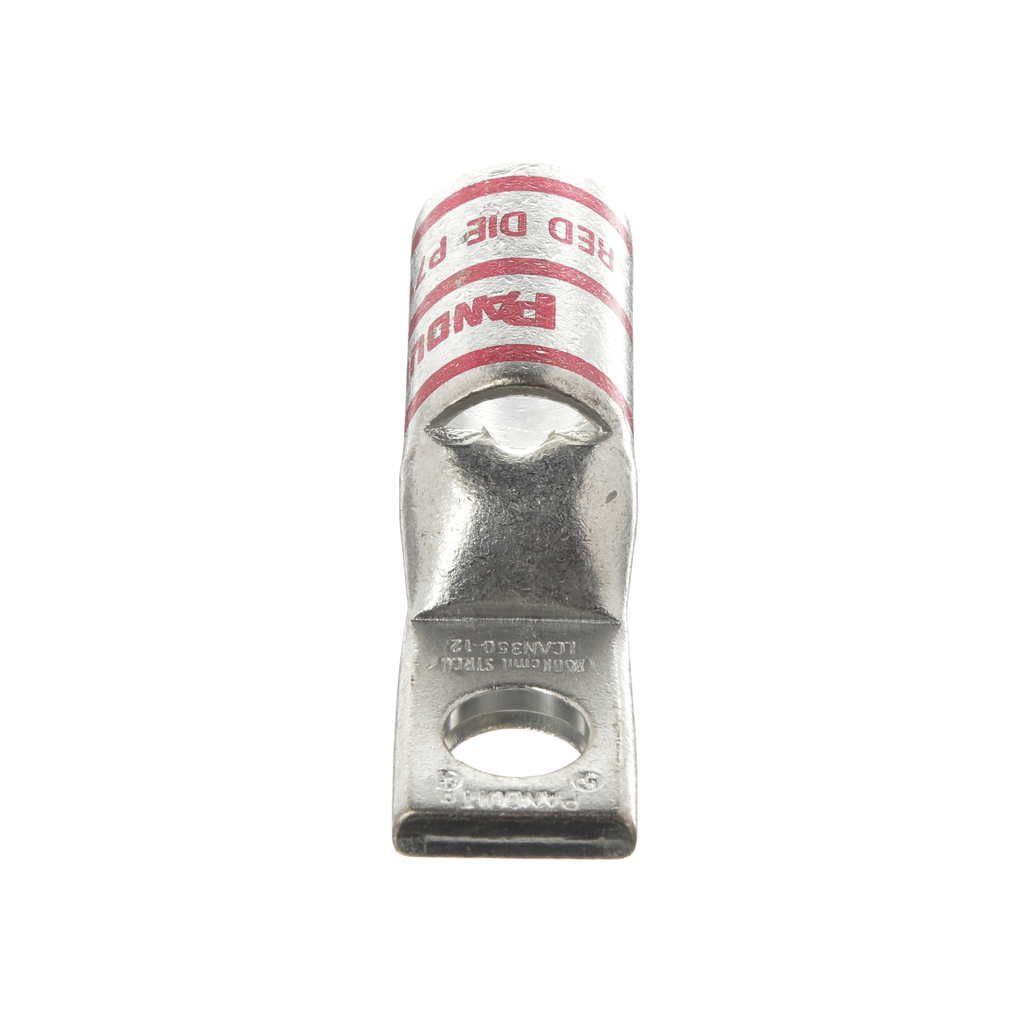

Pan-Lug™ LCAN350-12-X Comp. Lug, 350, Narrow, Tin Plt Copper, Strt, 1/2" Stud

CULUG 350KCMIL NARROW 1/2STUDP

PANLCAN35012X LCAN350-12-X 074983603466
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ LCAN350-12-X Comp. Lug, 350, Narrow, Tin Plt Copper, Strt, 1/2" Stud-1
  • Barrel Length: 1.44 in, 36.6 mm
  • Material: Copper
  • Overall Length: 3.12 in, 79.3 mm
  • Tongue Thickness: 0.21 in, 4.3 mm
  • Tongue Type: Narrow
  • Tongue Width: 0.88 in, 22.4 mm
  • Type: Compression Lug
The LCAN350-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, narrow-tongue, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
QTY
  • Product Description
  • Features
  • Specifications
The LCAN350-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, narrow-tongue, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
  • Standards and Certifications
    • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164
  • Prop 65
    • No
  • Specifications
    • Country of Origin : Mexico
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Tongue Type : Narrow
    • Overall Length (In.) : 3.12
    • Base Material : Copper
    • Stud Hole Size (In.) : 1/2
    • Sub Brand : Pan-Lug™
    • Barrel Type : Standard
    • Finish/Coating : Tin-Plated
    • T & B Die Index Number : 71
    • Tongue Thickness (In.) : 0.21
    • Color Code : Red
    • Barrel Length (In.) : 1.44
    • Wire Strip Length (mm) : 38.1
    • Wire Strip Length (In.) : 1-1/2
    • Tongue Thickness (mm) : 4.3
    • Product Type : Compression Lug
    • UL Temperature Rating (°C) : 90
    • Maximum Voltage (kV) : 35
    • Tongue Width (mm) : 22.4
    • Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
    • Tongue Angle : Straight
    • CSA Temperature Rating (°C) : 90
    • Barrel Length (mm) : 36.6
    • Burndy Die Index Number : 18
    • Copper Code Conductor Size (kcmil) : 350
    • Overall Length (mm) : 79.3
    • Tongue Width (In.) : 0.88
    • Stud Hole Spacing (mm) : 0
    • Panduit Die Index Number : P71
    • Stud Hole Size (mm) : 12.7
    • Number of Stud Holes : 1
    • Barrel Entry : Beveled
    • Inspection Window : Yes
  • Packaging Details
    • UPC : 07498360346
    • GTIN Package : 00074983603466
    • Standard Package Volume Ft3 : 0.0359
    • Standard Package Weight Pounds : 1.9000
    • Std Package Height In : 3.3
    • Std Package Height MM : 83.82
    • Std Package Length In : 5.85
    • Std Package Length MM : 148.59
    • Std Package Width In : 3.45
    • Std Package Width MM : 87.63
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • EAN : 00074983603466
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
