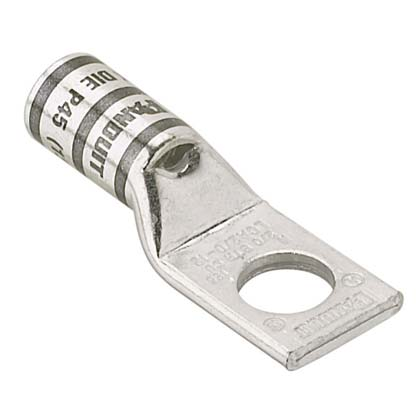

Pan-Lug™ LCA4/0-56-X Comp. Lug, 4/0, Tin Plt Copper, Strt, One 0.31" Stud, PK10

COMP LUG WIDE 1 5/16HOLE #4/0

PANLCA4056X LCA4/0-56-X 074983901203
10.11 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ LCA4/0-56-X Comp. Lug, 4/0, Tin Plt Copper, Strt, One 0.31" Stud, PK10-1
  • Barrel Length: 1.19 in, 30.2 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Overall Length: 2.38 in, 60.5 mm
  • Tongue Thickness: 0.14 in, 3.6 mm
  • Tongue Type: Standard
  • Tongue Width: 1.06 in, 26.9 mm
  • Type: Compression Lug
One-hole, standard barrel with window lug, 4/0 AWG wire, 5/16 stud hole.
QTY
  • Product Description
  • Specifications
One-hole, standard barrel with window lug, 4/0 AWG wire, 5/16 stud hole.
  • Packaging Details
    • UPC : 07498390120
    • GTIN Package : 00074983901203
    • Standard Package Volume Ft3 : 0.0328
    • Standard Package Weight Pounds : 1.1150
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 4.6
    • Std Package Length MM : 116.84
    • Std Package Width In : 3.35
    • Std Package Width MM : 85.09
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983901203
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
  • Specifications
    • Product Segment : IEI
    • Product Type : Compression Lug
    • Base Material : Copper
    • Number of Stud Holes : 1
    • Barrel Type : Standard
    • Barrel Entry : Beveled
    • Tongue Type : Standard
    • Tongue Angle : Straight
    • Inspection Window : Yes
    • Finish/Coating : Tin-Plated
    • Stud Hole Size (mm) : 7.9
    • Stud Hole Size (In.) : 5/16
    • Stud Hole Spacing (mm) : 0
    • Copper Code Conductor Size (AWG) : 4/0
    • Barrel Length (mm) : 30.2
    • Barrel Length (In.) : 1.19
    • Tongue Width (In.) : 1.06
    • Tongue Width (mm) : 26.9
    • Tongue Thickness (In.) : 0.14
    • Tongue Thickness (mm) : 3.6
    • Overall Length (mm) : 60.5
    • Overall Length (In.) : 2.38
    • Standards Met : UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
    • CSA Temperature Rating (°C) : 90
    • UL Temperature Rating (°C) : 90
    • Maximum Voltage (kV) : 35
    • Color Code : Purple
    • Panduit Die Index Number : P54
    • Burndy Die Index Number : 15
    • T & B Die Index Number : 54
    • Wire Strip Length (In.) : 1-1/4
    • Wire Strip Length (mm) : 31.8
    • Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
    • Sub Brand : Pan-Lug™
