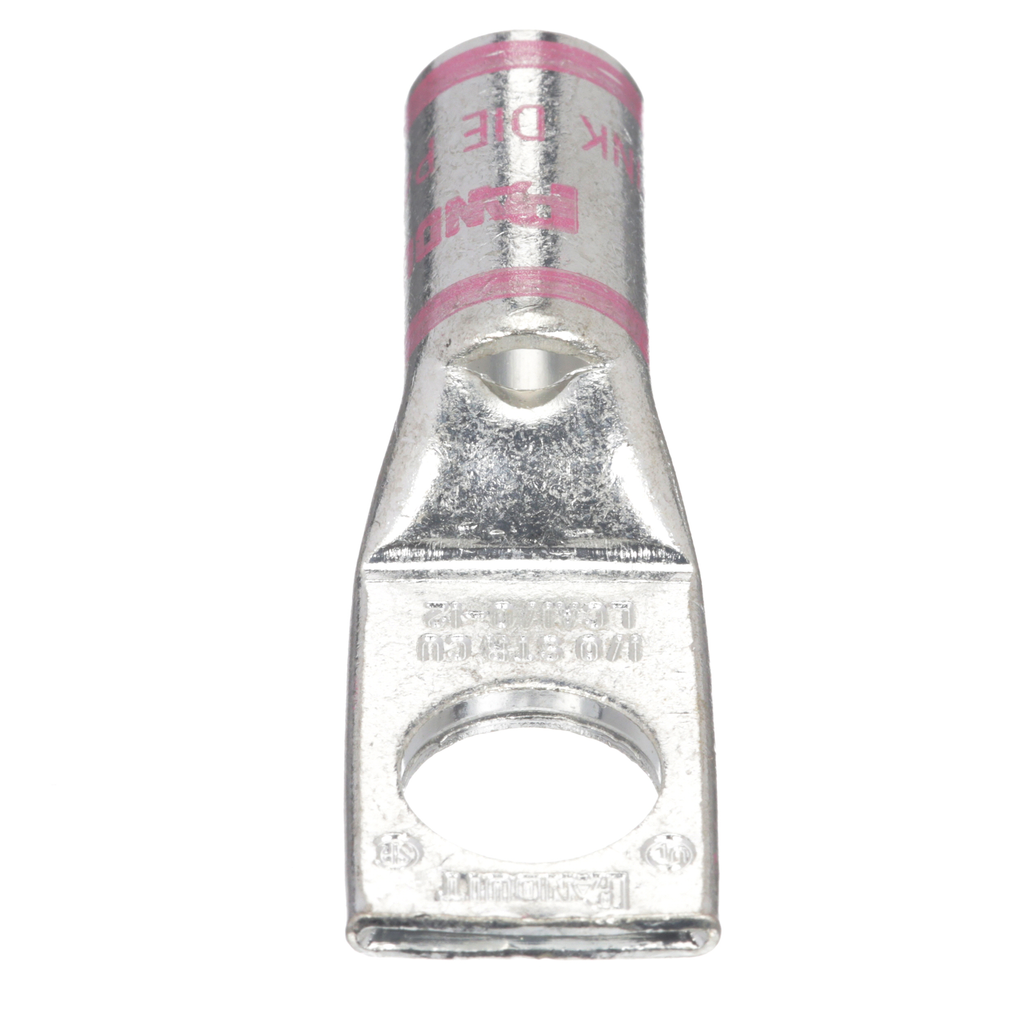

Pan-Lug™ LCA1/0-12-X Comp. Lug, 1/0, Tin Plt Copper, Strt, One 0.5" Stud, PK10

COMP LUG WIDE 1 1/2HOLE #1/0

PANLCA1012X LCA1/0-12-X 74983900275
6.44 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ LCA1/0-12-X Comp. Lug, 1/0, Tin Plt Copper, Strt, One 0.5" Stud, PK10-1
  • Barrel Length: 0.94 in, 23.9 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Overall Length: 2.31 in, 58.7 mm
  • Tongue Thickness: 0.12 in, 3 mm
  • Tongue Type: Standard
  • Tongue Width: 0.8 in, 20.3 mm
  • Type: Compression Lug
One-hole, standard barrel with window lug, 1/0 AWG wire, 1/2 stud hole, standard package.
QTY
  • Product Description
  • Specifications
One-hole, standard barrel with window lug, 1/0 AWG wire, 1/2 stud hole, standard package.
  • Specifications
    • Product Segment : IEI
    • Product Type : Compression Lug
    • Base Material : Copper
    • Number of Stud Holes : 1
    • Barrel Type : Standard
    • Barrel Entry : Beveled
    • Tongue Type : Standard
    • Tongue Angle : Straight
    • Inspection Window : Yes
    • Finish/Coating : Tin-Plated
    • Stud Hole Size (In.) : 1/2
    • Stud Hole Size (mm) : 12.7
    • Stud Hole Spacing (mm) : 0
    • Copper Code Conductor Size (AWG) : 1/0
    • Barrel Length (mm) : 23.9
    • Barrel Length (In.) : 0.94
    • Tongue Width (In.) : 0.8
    • Tongue Width (mm) : 20.3
    • Tongue Thickness (mm) : 3
    • Tongue Thickness (In.) : 0.12
    • Overall Length (In.) : 2.31
    • Overall Length (mm) : 58.7
    • Standards Met : UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
    • CSA Temperature Rating (°C) : 90
    • UL Temperature Rating (°C) : 90
    • Maximum Voltage (kV) : 35
    • Color Code : Pink
    • Panduit Die Index Number : P42
    • Burndy Die Index Number : 12
    • T & B Die Index Number : 42
    • Wire Strip Length (mm) : 25.4
    • Wire Strip Length (In.) : 1
    • Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
    • Sub Brand : Pan-Lug™
  • Packaging Details
    • UPC : 07498390027
    • GTIN Package : 00074983900275
    • Standard Package Volume Ft3 : 0.0321
    • Standard Package Weight Pounds : 0.7300
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 4.7
    • Std Package Length MM : 119.38
    • Std Package Width In : 3.3
    • Std Package Width MM : 83.82
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983900275
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
