Pan-Lug™ LCAF4-14-L Copper Compression Connectors - Lugs

COMP LUG FLARED 1 1/4HOLE #4

PANLCAF414L LCAF4-14-L 74983557424
3.94 / EA
http://schema.org/OutOfStock

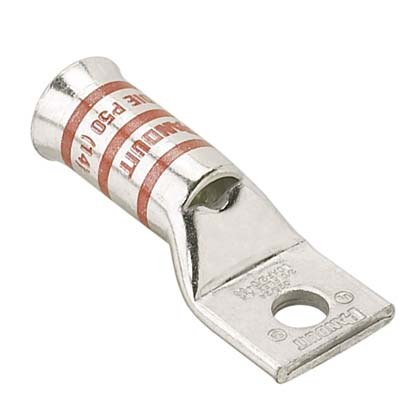

Mayer-DDS-Pan-Lug™ LCAF4-14-L Copper Compression Connectors - Lugs-1
  • Barrel Length: 0.81 in, 20.6 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Overall Length: 1.63 in, 41.4 mm
  • Tongue Thickness: 0.09 in, 2.3 mm
  • Tongue Type: Standard
  • Tongue Width: 0.55 in, 14 mm
  • Type: Compression Lug
One-hole, flared barrel, #4 AWG wire, 1/4 stud hole.
QTY
  • Product Description
  • Features
  • Specifications
One-hole, flared barrel, #4 AWG wire, 1/4 stud hole.
  • Standards and Certifications
    • Standards Met: UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13, NEBS Level 3, ABS
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Tongue Angle : Straight
    • Barrel Length (In.) : 0.81
    • Stud Hole Spacing (mm) : 0
    • Sub Brand : Pan-Lug™
    • CSA Temperature Rating (°C) : 90
    • Tongue Thickness (mm) : 2.3
    • Overall Length (mm) : 41.4
    • DLO Copper Flex Conductor Size (AWG) : 4
    • Overall Length (In.) : 1.63
    • Maximum Voltage (kV) : 35
    • Stud Hole Size (In.) : 1/4
    • Finish/Coating : Tin-Plated
    • Class M Copper Flex Conductor Size (AWG) : 4
    • Wire Strip Length (In.) : 7/8
    • Tongue Width (mm) : 14
    • Base Material : Copper
    • Panduit Die Index Number : P29
    • Wire Strip Length (mm) : 22.2
    • Stud Hole Size (mm) : 6.4
    • Barrel Type : Standard
    • Tongue Thickness (In.) : 0.09
    • Tongue Width (In.) : 0.55
    • Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
    • Color Code : Gray
    • Class K Copper Flex Conductor Size (AWG) : 4
    • UL Temperature Rating (°C) : 90
    • Product Type : Compression Lug
    • Tongue Type : Standard
    • Barrel Length (mm) : 20.6
    • Number of Stud Holes : 1
    • Inspection Window : Yes
    • Barrel Entry : Flared
  • Packaging Details
    • UPC : 07498355742
    • GTIN Package : 00074983557424
    • Standard Package Volume Ft3 : 0.0328
    • Standard Package Weight Pounds : 1.3650
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 4.75
    • Std Package Length MM : 120.65
    • Std Package Width In : 3.35
    • Std Package Width MM : 85.09
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 50
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983557424
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
