Pan-Lug™ LCAN2/0-10-X Copper Compression Connectors - Lugs

Name: Pan-Lug™ LCAN2/0-10-X Copper Compression Connectors - Lugs
Brand: PANDUIT
SKU: PANLCAN2010X
Availability: OutOfStock

CULUG,2/0AWG,NARROW,#10STUDPKG

PANLCAN2010X LCAN2/0-10-X 074983444779

0.00 / EA

http://schema.org/OutOfStock

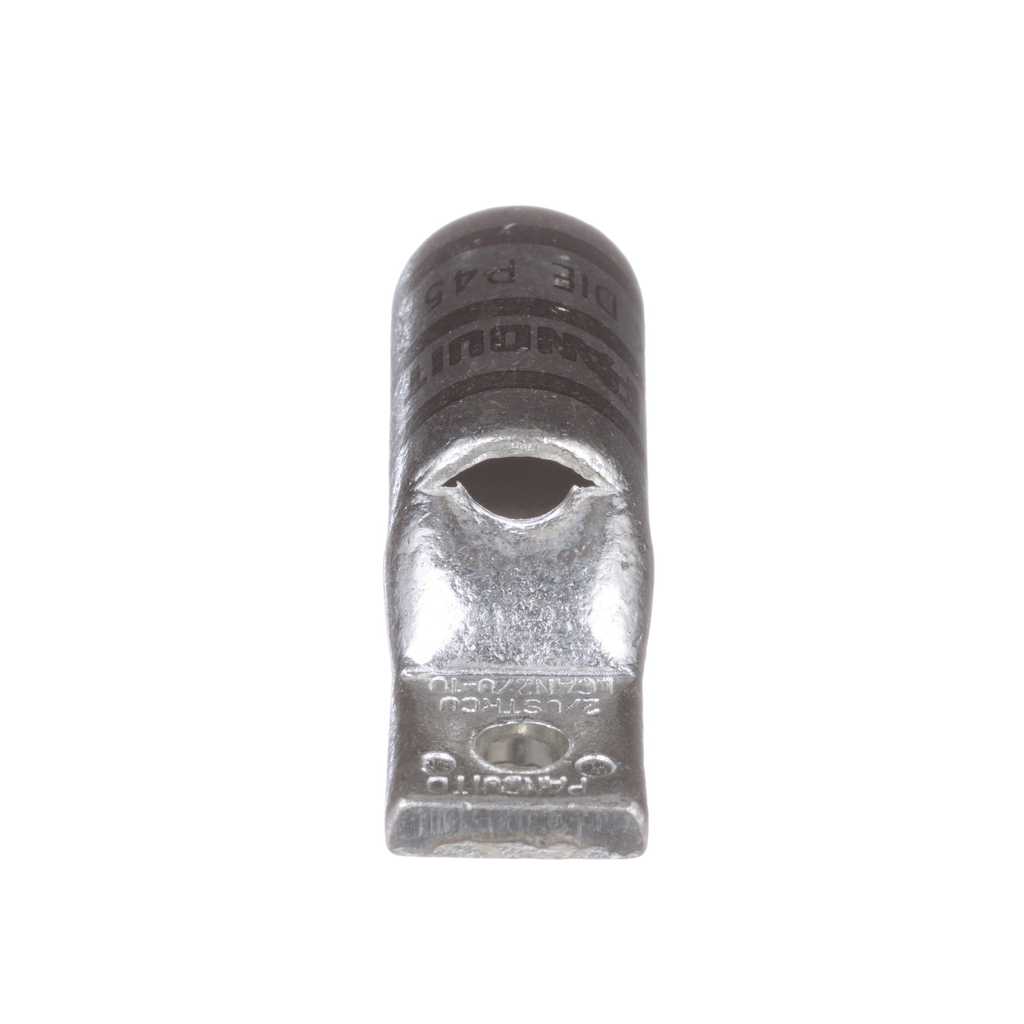

One-hole, standard barrel with window, narrow tongue lug, 2/0 AWG wire, #10 stud hole.

QTY

One-hole, standard barrel with window, narrow tongue lug, 2/0 AWG wire, #10 stud hole.

Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164

Country of Origin : Mexico
Any Reason Not to Sell : N
Product Segment : IEI
Wire Strip Length (mm) : 26.9
UL Temperature Rating (°C) : 90
Copper Code Conductor Size (AWG) : 2/0
Tongue Type : Narrow
Stud Hole Size (mm) : 4.8
Stud Hole Size (In.) : #10
Panduit Die Index Number : P45
Barrel Type : Standard
Wire Strip Length (In.) : 1-1/16
Base Material : Copper
Maximum Voltage (kV) : 35
Burndy Die Index Number : 13
CSA Temperature Rating (°C) : 90
Tongue Width (mm) : 14.7
Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
T & B Die Index Number : 45
Stud Hole Spacing (mm) : 0
Tongue Thickness (In.) : 0.15
Finish/Coating : Tin-Plated
Tongue Thickness (mm) : 3.3
Product Type : Compression Lug
Tongue Width (In.) : 0.58
Barrel Length (In.) : 0.98
Overall Length (In.) : 1.86
Barrel Length (mm) : 24.9
Tongue Angle : Straight
Color Code : Black
Overall Length (mm) : 46.7
Sub Brand : Pan-Lug™
Number of Stud Holes : 1
Barrel Entry : Beveled
Inspection Window : Yes
