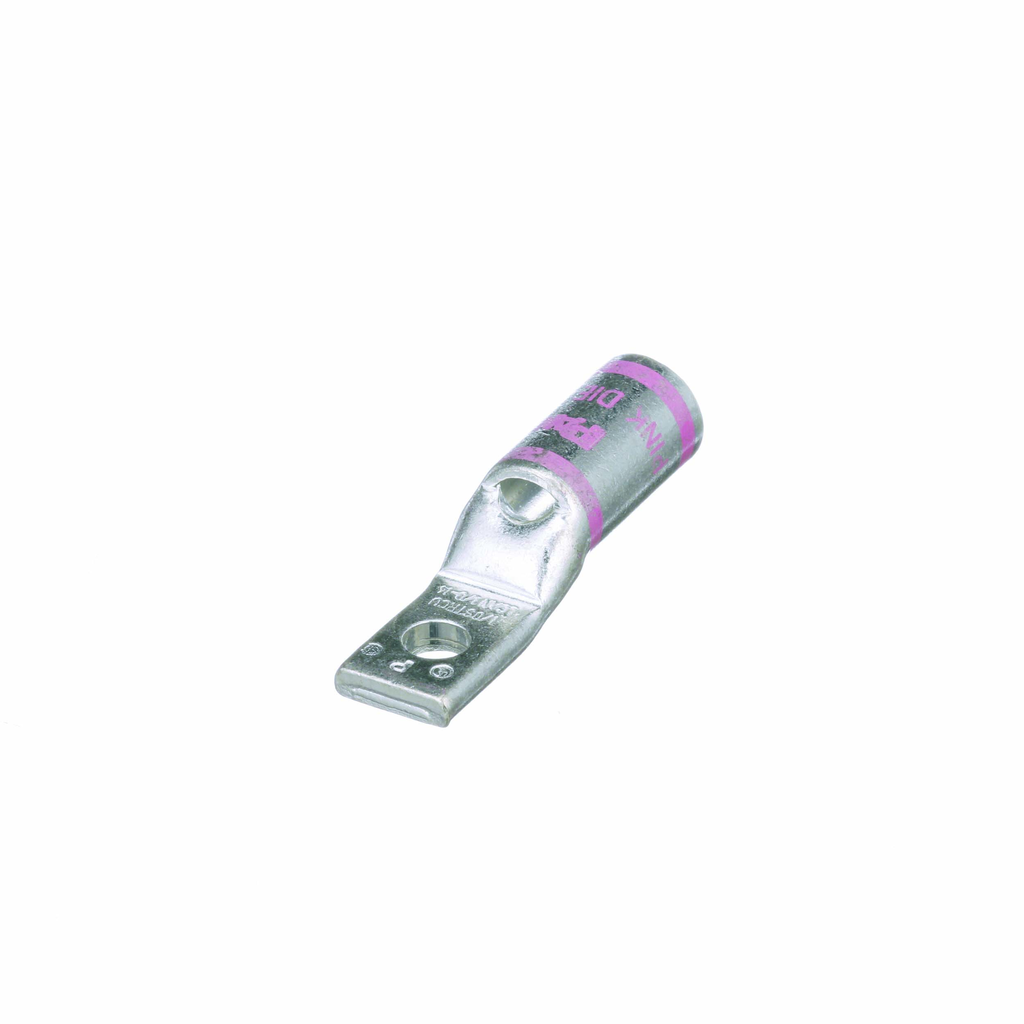

Pan-Lug™ LCAN1/0-14-X Copper Compression Connectors - Lugs

COMP LUG N 1H 1/4IN 1/0AWG

PANLCAN1014X LCAN1/0-14-X 074983603336
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ LCAN1/0-14-X Copper Compression Connectors - Lugs-1
  • Barrel Length: 0.94 in, 23.9 mm
  • Material: Copper
  • Overall Length: 2 in, 49.5 mm
  • Tongue Thickness: 0.15 in, 3.3 mm
  • Tongue Type: Narrow
  • Tongue Width: 0.52 in, 13.2 mm
  • Type: Compression Lug
One-hole, standard barrel with window, narrow tongue lug, 1/0 AWG wire, 1/4 stud hole.
QTY
  • Product Description
  • Features
  • Specifications
One-hole, standard barrel with window, narrow tongue lug, 1/0 AWG wire, 1/4 stud hole.
  • Standards and Certifications
    • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164
  • Prop 65
    • No
  • Packaging Details
    • UPC : 07498360333
    • GTIN Package : 00074983603336
    • Standard Package Volume Ft3 : 0.0184
    • Standard Package Weight Pounds : 0.7400
    • Std Package Height In : 3.35
    • Std Package Height MM : 85.09
    • Std Package Length In : 4.7
    • Std Package Length MM : 119.38
    • Std Package Width In : 3.4
    • Std Package Width MM : 86.36
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • EAN : 00074983603336
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
  • Specifications
    • Country of Origin : Mexico
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Maximum Voltage (kV) : 35
    • UL Temperature Rating (°C) : 90
    • CSA Temperature Rating (°C) : 90
    • Color Code : Pink
    • Tongue Thickness (mm) : 3.3
    • Overall Length (In.) : 2
    • T & B Die Index Number : 42
    • Barrel Length (In.) : 0.94
    • Stud Hole Spacing (mm) : 0
    • Finish/Coating : Tin-Plated
    • Barrel Length (mm) : 23.9
    • Copper Code Conductor Size (AWG) : 1/0
    • Sub Brand : Pan-Lug™
    • Tongue Width (mm) : 13.2
    • Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
    • Wire Strip Length (mm) : 25.4
    • Product Type : Compression Lug
    • Stud Hole Size (mm) : 6.4
    • Wire Strip Length (In.) : 1
    • Barrel Type : Standard
    • Tongue Thickness (In.) : 0.15
    • Overall Length (mm) : 49.5
    • Tongue Angle : Straight
    • Stud Hole Size (In.) : 1/4
    • Panduit Die Index Number : P42
    • Base Material : Copper
    • Tongue Type : Narrow
    • Burndy Die Index Number : 12
    • Tongue Width (In.) : 0.52
    • Barrel Entry : Beveled
    • Number of Stud Holes : 1
    • Inspection Window : Yes
