Non-insulated; Tin Plated YAV6CLTC38FX90

BURNDY 38F-L COPPER COMPRES

BURYAV6CLTC38FX90 YAV6CLTC38FX90 BURYAV6CLTC38FX90
3.83 / EA
http://schema.org/OutOfStock
  • Color Coding: Blue
  • Conductor Material: Copper
  • Conductor Size: 16 mm
  • Connection Type: Terminal
  • CSA: Yes
  • Height: 0.87 in
  • Hole Size: 10 mm
  • Length: 1.06 in, 27 mm
  • Material: Copper
  • Max. Voltage: 35000 V
  • Plated (Y/N): Yes
  • Plating Type: Tin - Electro Plated

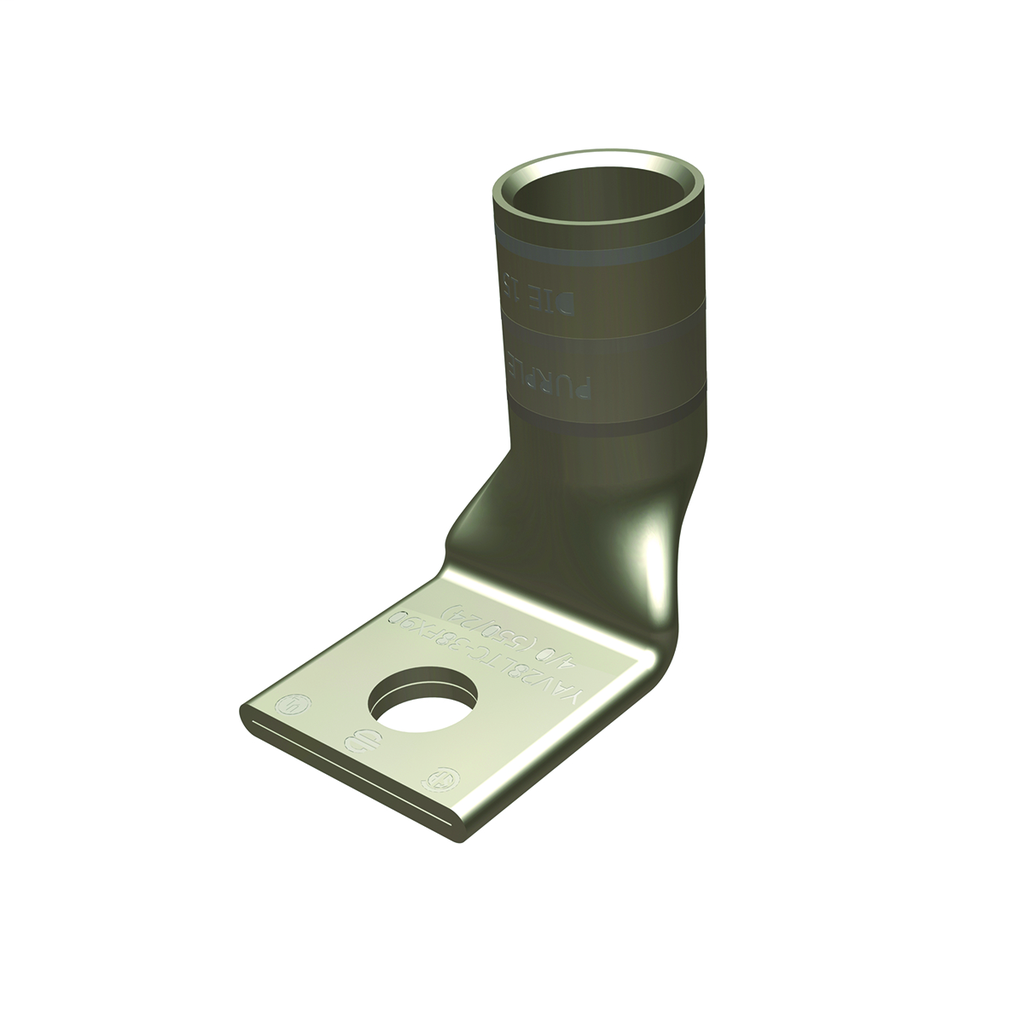

Copper Compression Lug, 1 Hole w/ Inspection Window, #6 AWG FLEX CLASS G-M, DLO (61/24), 16 mm2 FLEX, #6 AWG Code CLASS B,C, 30 Navy, 90 Deg Bent, Blue, 7 or 374 Index, 3/8 IN Bolt Size
QTY
  • Product Description
  • Features
  • Specifications
Copper Compression Lug, 1 Hole w/ Inspection Window, #6 AWG FLEX CLASS G-M, DLO (61/24), 16 mm2 FLEX, #6 AWG Code CLASS B,C, 30 Navy, 90 Deg Bent, Blue, 7 or 374 Index, 3/8 IN Bolt Size
  • Feature - Barrel Style
    • Chamfered
    • Skived
  • Dimensions
    • Dimension - B Length fraction : 1/2 in
    • Dimension - B Length inch : 0.50 in
    • Dimension - Bolt Hole Size inch : 0.40 in
    • Dimension - Height inch : 0.87 in
    • Dimension - Hole Size inch : 0.40 in
    • Dimension - Hole Size mm : 10 mm
    • Dimension - L Length Overall mm : 27 mm
    • Dimension - Length Overall inch : 1.06 in
    • Dimension - N inch : 0.41 in
    • Dimension - Outside Diameter inch : 0.31 in
    • Dimension - Pad Width inch : 0.58 in
    • Dimension - Strip Length inch : 1/2 in
    • Dimension - Z inch : 0.42 in
    • Physical Attribute - Tongue Angle : 90 Degree
  • Certifications and Compliance
    • Certification - CSA Approved : Yes
    • Certification - ETL : No
    • Certification - UL Recognized : No
    • Certification - cULus : No
    • Standards - RoHS Compliance Status : CM
    • UL Listed : Yes
  • Conductor Related
    • Conductor - Copper DLO Size : 6 (61/24) DLO
    • Conductor - Copper DLO Size Range : 6 (61/24) DLO
    • Conductor - Copper Flex G Size : 6 AWG
    • Conductor - Copper Flex G Size Range : 6 AWG
    • Conductor - Copper Flex H Size : 6 AWG
    • Conductor - Copper Flex H Size Range : 6 AWG
    • Conductor - Copper Flex I Size : 6 AWG
    • Conductor - Copper Flex I Size Range : 6 AWG
    • Conductor - Copper Flex K Size : 6 AWG
    • Conductor - Copper Flex K Size Range : 6 AWG
    • Conductor - Copper Flex M Size : 6 AWG
    • Conductor - Copper Flex M Size Range : 6 AWG
    • Conductor - Copper Solid Size : 6 AWG
    • Conductor - Copper Solid Size Range : 6 AWG
    • Conductor - Copper Str Navy Size : 30 Navy
    • Conductor - Copper Str Navy Size Range : 30 Navy
    • Conductor - Copper Str Size : 16 mm²
    • Conductor - Copper Str Size Range : 16 mm²
    • Conductor - Material : Copper
  • General
    • Color Code : Blue
    • Connector Type : Terminal
    • Die Index : 7;374
    • Feature - Barrel Type : Standard
    • Material : Copper
    • Physical Attribute - Number of Holes : 1
    • Physical Attribute - Tongue Type : Standard
    • Plated : Y
    • Plating Type : Tin - Electro Plated
    • Trade Name : HYLUG™
    • Type : Standard Barrel, Tin Plated
    • UPC : 781810080498
    • UPC 12 Digit : 7818100804988
  • Electrical Ratings
    • Rating - KVA : 35 kV
    • Rating - Minimum Voltage : 600
    • Voltage - Maximum : 35000
  • Logistics
    • Minimum Pack Quantity : 50
