Pan-Lug™ PCSB4-2S-12Y Multi-Tap Mech Con, Single Sided, 4, Tin Plt Al, PK12

MULTI-TAP 1S 2PT #4-14STR

PANPCSB42S12Y PCSB4-2S-12Y 74983597550
12.59 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ PCSB4-2S-12Y Multi-Tap Mech Con, Single Sided, 4, Tin Plt Al, PK12-1
  • Country of Origin: USA
  • Height: 1.25 in, 31.7 mm
  • Material: Aluminum
  • Overall Length: 1.23 in, 31.2 mm
  • Type: Single-Sided Multi-Tap Connector
  • Width: 1.25 in, 31.8 mm

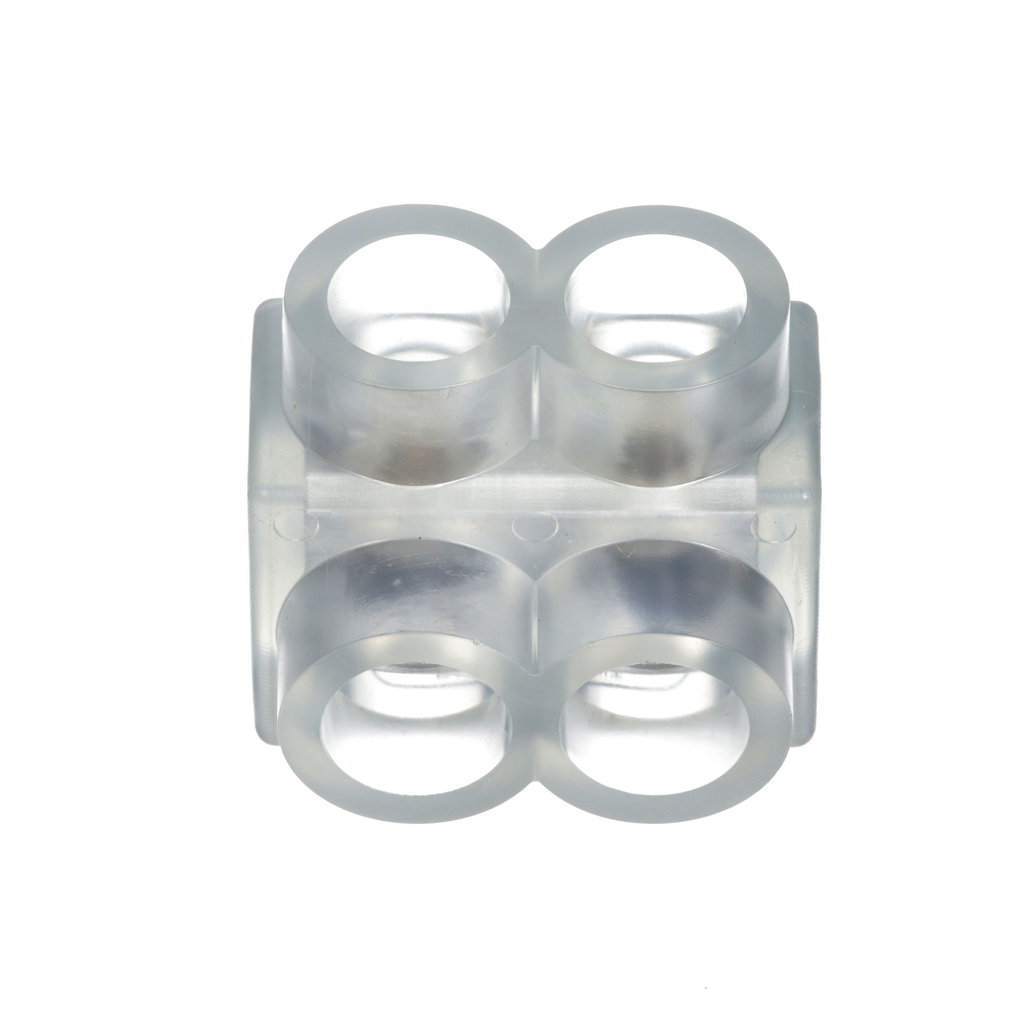

The PCSB4-2S-12Y Multi-Tap Mechanical Connector has a flexible design that can be used as a tap, splice, or dead-end connector. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
QTY
  • Product Description
  • Features
  • Specifications
The PCSB4-2S-12Y Multi-Tap Mechanical Connector has a flexible design that can be used as a tap, splice, or dead-end connector. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
  • Standards and Certifications
    • Standards Met: UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C
  • Prop 65
    • No
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Overall Height (mm) : 31.7
    • Overall Width (mm) : 31.8
    • Product Type : Single-Sided Multi-Tap Connector
    • Note : For Use with Aluminum or Copper Code Conductors
    • Application : Aluminum or Copper Code Conductors
    • CSA Temperature Rating (°C) : 90
    • Overall Height (In.) : 1.25
    • Sub Brand : Pan-Lug™
    • Overall Length (In.) : 1.23
    • Number of Ports : 2
    • Maximum Copper Conductor Size (AWG STR) : 4
    • Maximum Voltage (V) : 600
    • Insulation Material : Clear PVC
    • Base Material : Aluminum
    • Overall Width (In.) : 1.25
    • Minimum Copper Conductor Size (AWG SOL) : 14
    • Overall Length (mm) : 31.2
    • Maximum Aluminum Conductor Size (AWG) : 4
    • Minimum Aluminum Conductor Size (AWG) : 14
    • UL Temperature Rating (°C) : 90
    • Screw Type : Hex
  • Packaging Details
    • UPC : 07498359755
    • GTIN Package : 00074983597550
    • Standard Package Volume Ft3 : 0.0674
    • Standard Package Weight Pounds : 2.3820
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 4.7
    • Std Package Length MM : 119.38
    • Std Package Width In : 3.35
    • Std Package Width MM : 85.09
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 12
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : US
    • EAN : 00074983597550
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : Y
    • Restricted Use of Hazardous Substances : Y
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
