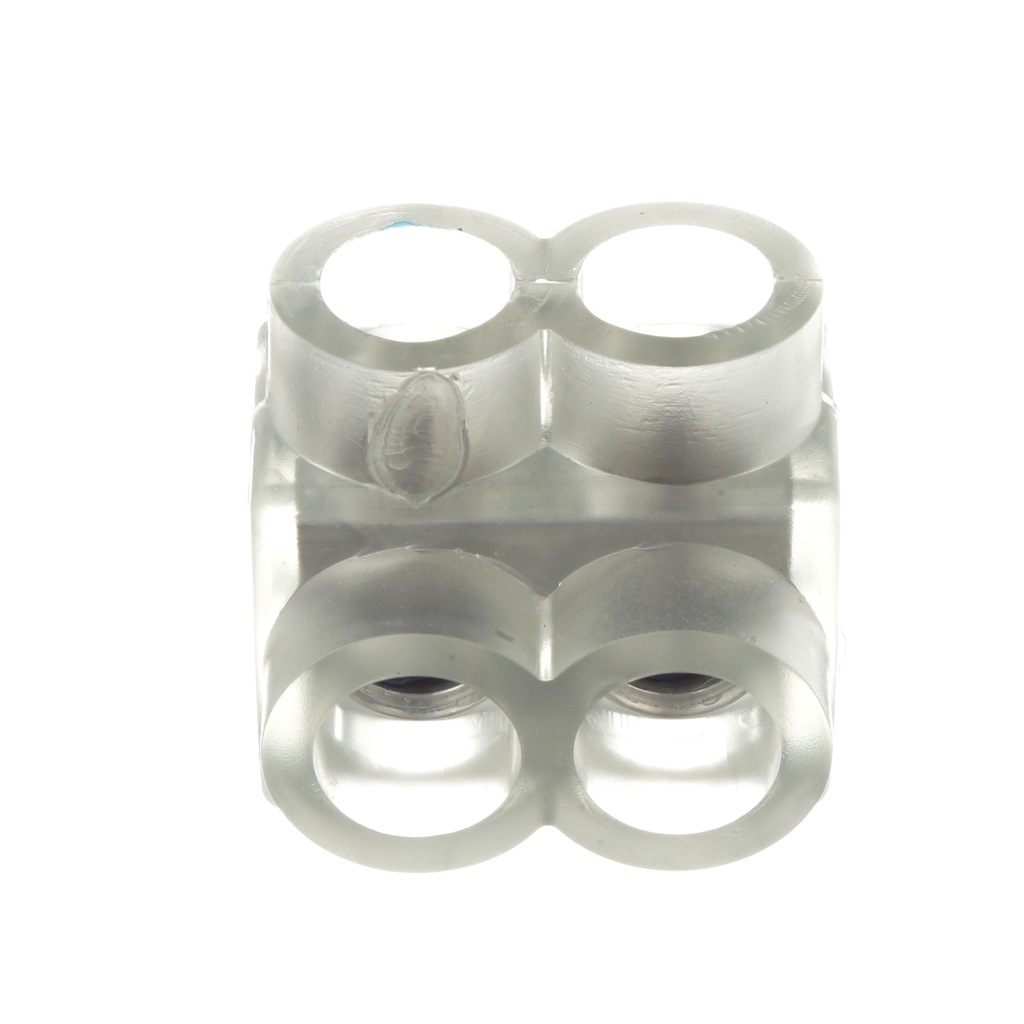

Pan-Lug™ PCSB2/0-2-12 Multi-Tap Mech Con, Double Sided, 2/0, Tin Plt Al, PK12

MULTI-TAP 1S 2PT 2/0-#14STR

PANPCSB20212 PCSB2/0-2-12 74983774487
25.96 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ PCSB2/0-2-12 Multi-Tap Mech Con, Double Sided, 2/0, Tin Plt Al, PK12-1
  • Country of Origin: USA
  • Height: 1.38 in, 35.1 mm
  • Material: Aluminum
  • Overall Length: 1.52 in, 38.6 mm
  • Type: Double-Sided Multi-Tap Connector
  • Width: 1.56 in, 39.6 mm
The PCSB2/0-2-12 Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
QTY
  • Product Description
  • Features
  • Specifications
The PCSB2/0-2-12 Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
  • Prop 65
    • No
  • Standards and Certifications
    • Standards Met: UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Base Material : Aluminum
    • Overall Length (mm) : 38.6
    • CSA Temperature Rating (°C) : 90
    • Sub Brand : Pan-Lug™
    • Number of Ports : 2
    • Overall Width (In.) : 1.56
    • Application : Aluminum or Copper Code Conductors
    • Product Type : Double-Sided Multi-Tap Connector
    • UL Temperature Rating (°C) : 90
    • Overall Width (mm) : 39.6
    • Maximum Voltage (V) : 600
    • Maximum Copper Conductor Size (AWG STR) : 2/0
    • Overall Height (mm) : 35.1
    • Insulation Material : Clear PVC
    • Note : For Use with Aluminum or Copper Code Conductors
    • Overall Height (In.) : 1.38
    • Overall Length (In.) : 1.52
    • Maximum Aluminum Conductor Size (AWG) : 2/0
    • Minimum Aluminum Conductor Size (AWG) : 14
    • Minimum Copper Conductor Size (AWG SOL) : 14
    • Screw Type : Hex
  • Packaging Details
    • UPC : 07498377448
    • GTIN Package : 00074983774487
    • Standard Package Volume Ft3 : 0.0365
    • Standard Package Weight Pounds : 2.0676
    • Std Package Height In : 4.4
    • Std Package Height MM : 111.76
    • Std Package Length In : 9.15
    • Std Package Length MM : 232.41
    • Std Package Width In : 4.35
    • Std Package Width MM : 110.49
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 12
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : US
    • EAN : 00074983774487
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : Y
    • Restricted Use of Hazardous Substances : Y
    • Hazardous Material Flag : N
    • Min Order Qty : 12.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
