6-Port Clear Multi-Tap Pre-Insulated Connector, 500 MCM - 4 AWG

POLARIS VISION TAP 500 6 PORT

NSIIPLD5006C IPLD500-6C 662381996688
175.87 / EA
http://schema.org/OutOfStock

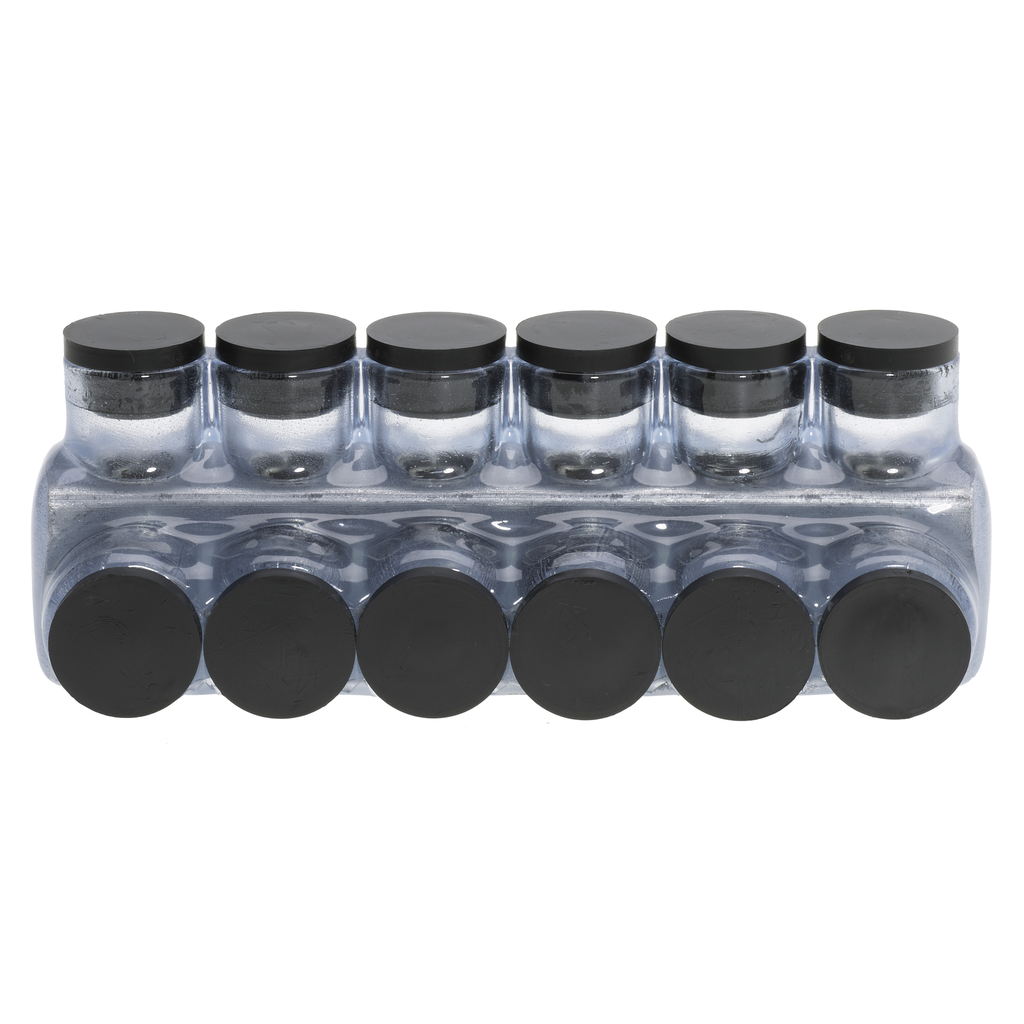

Mayer-DDS-6-Port Clear Multi-Tap Pre-Insulated Connector, 500 MCM - 4 AWG-1
  • Country of Origin: USA
  • Finish: Plastisol Insulated
  • Height: 2.95 in
  • Length: 7.48 in
  • Material: Aluminum
  • Voltage: 600 V
  • Warranty Length: 1 yr
  • Weight: 2.85 lb
  • Width: 2.83 in
The Polaris IPLD500-6C Multi-Tap Dual-Sided Entry Vision Tap Connector features 6 ports sized for 500 MCM - 4 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
QTY
  • Product Description
  • Features
  • Specifications
The Polaris IPLD500-6C Multi-Tap Dual-Sided Entry Vision Tap Connector features 6 ports sized for 500 MCM - 4 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
  • Certifications and Standards
    • cULus
    • Meets NEC 230.46 Suitable for Line Side of Service
    • UL 486A/B
  • Additional Notes
    • Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded or flexible cables, Parallel Rated to provide safety and NEC complaince when installing parallel runs.
  • Specifications
    • Country of Origin : United States
    • Length : 7.48 in
    • Width : 2.83 in
    • Height : 2.95 in
    • Weight : 2.85 lbs
    • Clear Exterior : Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
    • Ergonomic Design : Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
    • Removable Plugs : Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
    • Pre-filled Oxide Inhibitor : All 6 dual-sided entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
    • Parallel Rated : This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects
    • Collection Folder : IPLD500-6C
    • NPD Date Electrical : 03/08/2019 00:00:00
    • MATERIAL : Aluminum
    • INNER HEIGHT : 3.65
    • WARRANTY : 1 Year
    • Division : Electrical H1
    • Field Application : Splice, Tap
    • UL File # : E186991
    • INNER WEIGHT : 3.39
    • COLOR : Clear
    • INNER WIDTH : 6.25
    • FINISH : Plastisol Insulated
    • INNER LENGTH : 9
    • Sub-Division : Electrical-E H2
    • VOLTAGE RATING : 600 V
    • PRODUCT FAMILY : Connectivity
    • Product Assortment : Clear Coated Pre-Insulated Connectors
    • Product Series : IPLD Series
    • Type : Dual-Side Entry
    • Conductor - AL Size Range : 500 MCM-4 AWG
    • Wire/Cable Class : Class B, Class C
    • Aluminum Conductor Max AMP : 946
    • Number of Conductors/Circuits/Terminals : 6
    • Max Torque Value : 450 IN/LBS
    • Temperature Rating : 90C, AL9CU
    • Environmental Temperature : Cold Temperature rated to -45C
    • Conductor Type : Copper, Aluminum
    • Conductor - CU Size Range : 500 MCM-4 AWG
    • Copper Conductor Max AMP : 1209
    • Hex Wrench Size : 16-May IN
