BURNDY

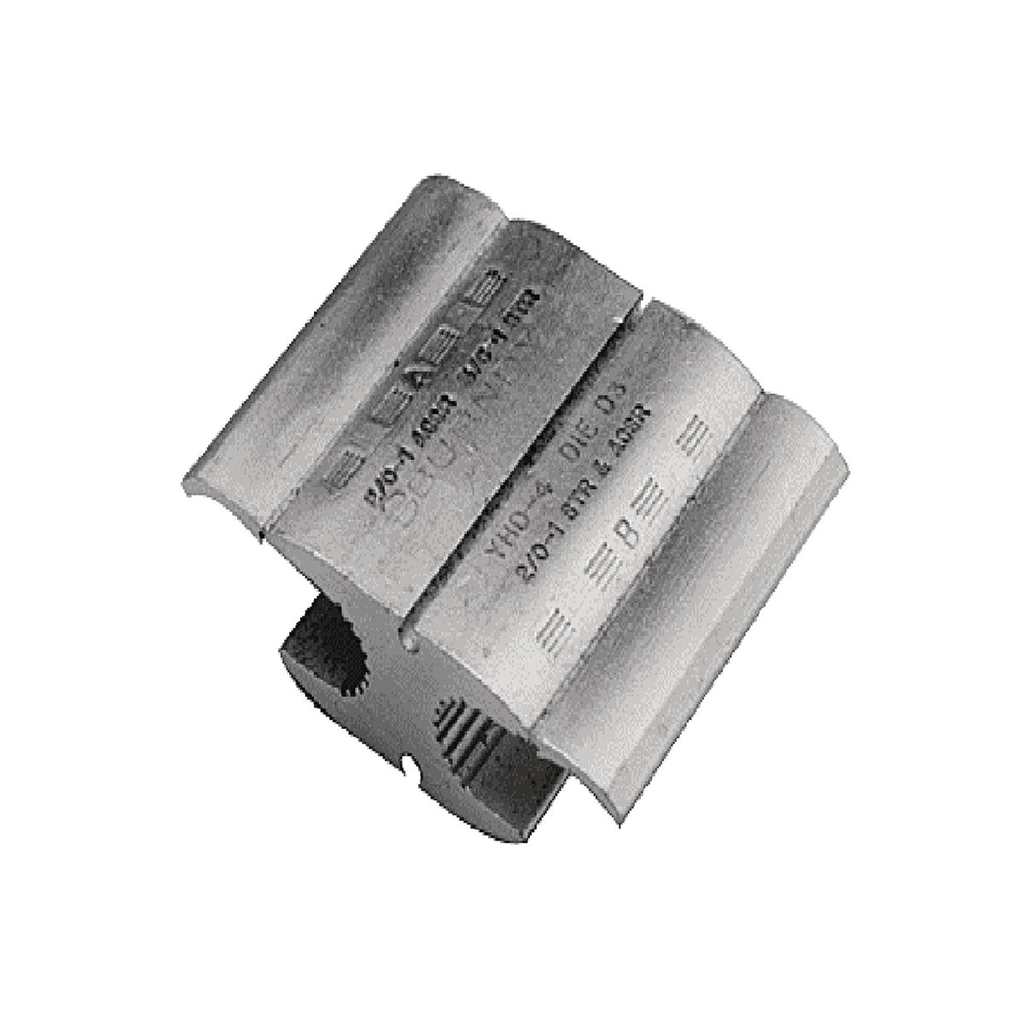

Compression Line Tap Connector for Alumminum to Copper and Aluminum to Aluminum applications, 1.47 H, 1.88 L, .87 W

H-TAP 3/0-4/0R 6-2T ALUM

BURYHD5 YHD5 781810139080
4.03 / Each
http://schema.org/OutOfStock
Mayer-DDS-Compression Line Tap Connector for Alumminum to Copper and Aluminum to Aluminum applications, 1.47 H, 1.88 L, .87 W-1
  • Height: 1.47 in
  • Material: Aluminum
  • Overall Length: 1.88 in, 48 mm
  • Width: 0.87 in, 22 mm
Compression Line Tap Connector for Alumminum to Copper and Aluminum to Aluminum applications,1.47 H,1.88 L,.87 W.
QTY
  • Product Description
  • Features
  • Specifications
Compression Line Tap Connector for Alumminum to Copper and Aluminum to Aluminum applications,1.47 H,1.88 L,.87 W.
  • Features
    • LOKTAP™ compression connectors are high quality, range-taking devices accommodating many combinations of conductor
    • LOKTAP™ connectors feature a C groove on both sides of the connector for use in street lighting applications
  • Specifications
    • Country of Origin : Mexico
    • Conductor - ACSR Cmpt Run : 4/0 AWG;266
    • Conductor - ACSR Cmpt Run Range : 4/0 AWG-266
    • Conductor - ACSR Cmpt Tap : 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG
    • Conductor - ACSR Cmpt Tap Range : 6 AWG-1 AWG
    • Conductor - ACSR Str Run : 3/0 (6/1) Pigeon AWG;4/0 (6/1) Penquin AWG
    • Conductor - ACSR Str Run Range : 3/0 (6/1) Pigeon AWG-4/0 (6/1) Penquin AWG
    • Conductor - ACSR Str Tap : 6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG;3 (6/1) Swallow AWG;2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG
    • Conductor - ACSR Str Tap Range : 6 (6/1) Turkey AWG-2 (7/1) Sparate AWG
    • Conductor - AL Str Run : 4/0 AWG
    • Conductor - AL Str Run Range : 4/0 AWG
    • Conductor - AL Str Tap : 6 AWG;4 AWG;3 AWG;2 AWG
    • Conductor - AL Str Tap Range : 6 AWG-2 AWG
    • Conductor - Copper Solid Run : 250 kmcil;300 kcmil
    • Conductor - Copper Solid Run Range : 250 kmcil-300 kcmil
    • Conductor - Copper Solid Tap : #6;5 AWG;4 AWG;3 AWG;2 AWG;1/0
    • Conductor - Copper Solid Tap Range : #6-1/0
    • Conductor - Copper Str Run : 4/0 AWG
    • Conductor - Copper Str Run Range : 4/0 AWG
    • Conductor - Copper Str Tap : 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
    • Conductor - Copper Str Tap Range : 6 AWG-2 AWG
    • Dimension - Height fraction : 1-47/100 in
    • Dimension - Height inch : 1.47 in
    • Dimension - L Length Overall mm : 48 mm
    • Dimension - Length Overall inch : 1.88 in
    • Dimension - Width fraction : 87/100 in
    • Dimension - Width inch : 0.87 in
    • Dimension - Width mm : 22 mm
    • Width : 0.87 in
    • Plated : N
    • Plating Type : Unplated
    • Prefilled Oxide Inhibitor : Y
    • Product Type : Compression
    • Standards - RoHS Compliance Status : CM
    • Trade Name : LOKTAP™
    • Application : For Accommodate Combinations Of Aluminum To Copper, And Aluminum To Aluminum Conductors
    • Sub Brand : LOKTAP
    • Type : YHD
    • ARRA Compliant : No
    • Class Code : B30
    • Description - Invoice : 3/0-4/0R 6-2T AL H TAP
    • Freight Class Code : 16027000
    • Harmonization Code : 8535908040
    • Image Actual Or Representative : A
    • Lead Time : 10 wk
    • MSDS Flag : No
    • Order Multiple : 25 EA
    • Stock Indicator : S - Shelf Stock
    • Sub Class Code : B30B3SF
    • Die Index : D3
    • UL Listed : No
    • Material : Aluminum
    • Base Unit of Measure : EA
    • BOX SIZE : 12.100x13.250x11.500 (in)
    • Carton - Gross Weight per Pack : 0.000 lb.
    • Carton - Number of Sub Packs : 250
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 00781810139080
    • Carton - Total Units : 250 EA
    • Case - Number of Sub Packs : 10
    • Case - Pack Description : Case (ISO code = 'CA' for HEP)
    • Case - SCC-14 Next Lower Level Sub Pack : 30781810139081
    • Case - Total Units : 250 EA
    • Each - Number of Sub Packs : 1
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
    • Package - Gross Weight per Pack : 3.5 lb.
    • Package - GTIN - Package : 30781810139081
    • Package - Number of Sub Packs : 25
    • Package - Pack Description : Package
    • Package - SCC-14 Next Lower Level Sub Pack : 00781810139080
    • Package - Total Units : 25 EA
    • Package Height : 2.750 in
    • Package Length : 11.100 in
    • Package Quantity : 25 EA
    • Package Weight : 3.680 lb.
    • Package Width : 4.800 in
    • Pallet - GTIN - Package : 70781810139089
    • Pallet Height : 28.700 in
    • Pallet Length : 48.000 in
    • Pallet Weight : 650.120 lb.
    • Pallet Width : 28.000 in
    • Standard Package Quantity : 25
  • Certifications
    • Buy American Compliant : No
    • CSA Approved : No
    • cULus : No
    • ETL : No
    • UL Recognized : No
    • EU RoHS Indicator : Yes
