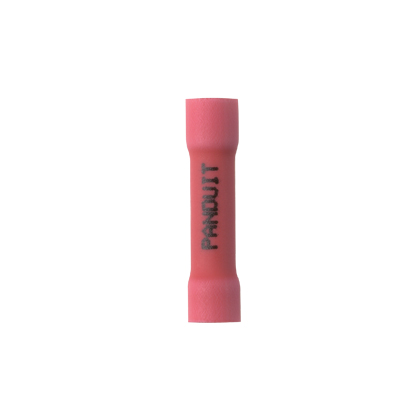

Pan-Term® BSV18X-MY Butt Splice, Red, Vinyl, 18-22 AWG, PK1000

BUTT SPLICE #22-18

PANBSV18XMY BSV18X-MY 074983407965
0.39 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Term® BSV18X-MY Butt Splice, Red, Vinyl, 18-22 AWG, PK1000-1
  • Country of Origin: Mexico
  • Material: Copper
  • Overall Length: 1.03 in, 26.16 mm
  • Type: Butt Splice
Panduit BSV18X-MY Vinyl Insulated Butt Splice
QTY
  • Product Description
  • Specifications
Panduit BSV18X-MY Vinyl Insulated Butt Splice
  • Packaging Details
    • UPC : 07498340796
    • GTIN Package : 00074983407965
    • Standard Package Volume Ft3 : 0.1031
    • Standard Package Weight Pounds : 3.4000
    • Std Package Height In : 4.4
    • Std Package Height MM : 111.76
    • Std Package Length In : 9.1
    • Std Package Length MM : 231.14
    • Std Package Width In : 4.4
    • Std Package Width MM : 111.76
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 1000
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983407965
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1,000
    • Pallet Quantity : 390,000
    • Pallet Weight : 1,326.0000
  • Specifications
    • Product Segment : IEI
    • Product Type : Butt Splice
    • Maximum Copper Conductor Size (AWG STR) : #18
    • Maximum Copper Conductor Size (AWG SOL) : #18
    • Minimum Copper Conductor Size (AWG SOL) : #22
    • Minimum Copper Conductor Size (AWG STR) : #22
    • Minimum Metric Conductor Size (mm²) : 0.5
    • Sub Brand : Pan-Term®
    • Maximum Metric Conductor Size (mm²) : 1
    • Copper Conductor Size (AWG) : #22 - #18
    • Barrel Type : Funnel Entry
    • Maximum Voltage (kV) : 0.6
    • Maximum Voltage (V) : 600
    • Base Material : Copper
    • Insulation Material : Vinyl
    • Standards Met : BSV18X-MY
    • Finish/Coating : Tin-Plated
    • Color Code : Red
    • Overall Length (mm) : 26.16
    • Overall Length (In.) : 1.03
    • Wire Strip Length (In.) : 5/16
    • Wire Strip Length (mm) : 7.9
    • UL Temperature Rating (°C) : 105
    • UL Temperature Rating (°F) : 221
    • CSA Temperature Rating (°C) : 105
    • CSA Temperature Rating (°F) : 221
