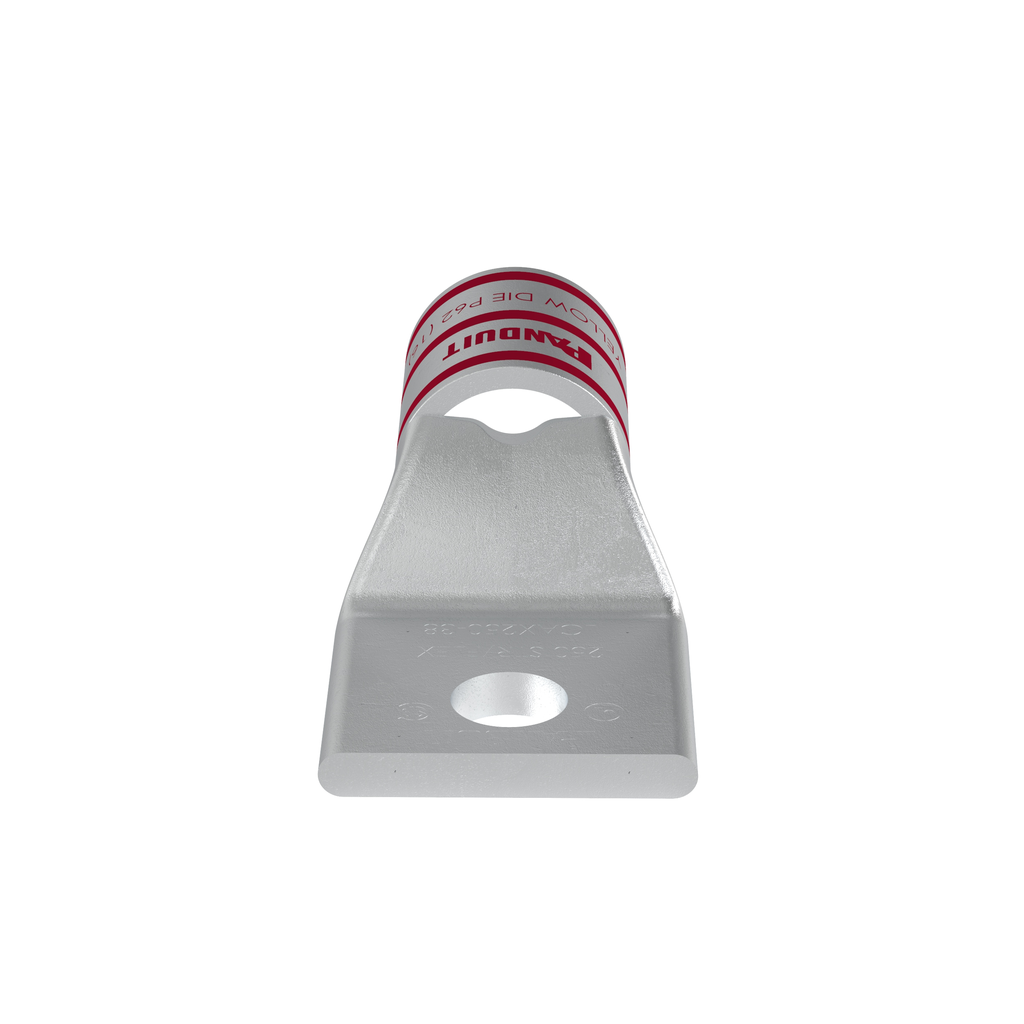

Pan-Lug™ LCAX250-38-X Comp. Lug, 250, Flex, Tin Plt Copper, One 3/8" Stud, PK10

COMP LUG FLEX 1 3/8HOLE 250

PANLCAX25038X LCAX250-38-X 74983435708
14.33 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ LCAX250-38-X Comp. Lug, 250, Flex, Tin Plt Copper, One 3/8" Stud, PK10-1
  • Barrel Length: 1.03 in, 26.2 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Overall Length: 2.57 in, 65.3 mm
  • Tongue Thickness: 0.17 in, 4.3 mm
  • Tongue Type: Standard
  • Tongue Width: 1.28 in, 32.5 mm
  • Type: Compression Lug
The LCAX250-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
QTY
  • Product Description
  • Specifications
The LCAX250-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
  • Packaging Details
    • UPC : 07498343570
    • GTIN Package : 00074983435708
    • Standard Package Volume Ft3 : 0.0395
    • Standard Package Weight Pounds : 1.8820
    • Std Package Height In : 3.35
    • Std Package Height MM : 85.09
    • Std Package Length In : 5.85
    • Std Package Length MM : 148.59
    • Std Package Width In : 3.4
    • Std Package Width MM : 86.36
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983435708
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
  • Specifications
    • Product Segment : IEI
    • Product Type : Compression Lug
    • Base Material : Copper
    • Number of Stud Holes : 1
    • Barrel Type : Standard
    • Barrel Entry : Beveled
    • Tongue Type : Standard
    • Tongue Angle : Straight
    • Inspection Window : Yes
    • Finish/Coating : Tin-Plated
    • Stud Hole Size (mm) : 9.5
    • Stud Hole Size (In.) : 3/8
    • Stud Hole Spacing (mm) : 0
    • Class G Copper Flex Conductor Size (kcmil) : 250
    • Class H Copper Flex Conductor Size (kcmil) : 250
    • Class I Copper Flex Conductor Size (kcmil) : 250
    • Class K Copper Flex Conductor Size (kcmil) : 250
    • Class M Copper Flex Conductor Size (kcmil) : 250
    • DLO Copper Flex Conductor Size (kcmil) : 262.6
    • Barrel Length (mm) : 26.2
    • Barrel Length (In.) : 1.03
    • Tongue Width (In.) : 1.28
    • Tongue Width (mm) : 32.5
    • Tongue Thickness (In.) : 0.17
    • Tongue Thickness (mm) : 4.3
    • Overall Length (In.) : 2.57
    • Overall Length (mm) : 65.3
    • Standards Met : C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
    • CSA Temperature Rating (°C) : 90
    • UL Temperature Rating (°C) : 90
    • Maximum Voltage (kV) : 35
    • Color Code : Yellow
    • Panduit Die Index Number : P62
    • Burndy Die Index Number : 16
    • T & B Die Index Number : 62
    • Wire Strip Length (In.) : 1-1/16
    • Wire Strip Length (mm) : 26.9
    • Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
    • Sub Brand : Pan-Lug™
