Pan-Lug™ LCAX2/0-56-X Comp. Lug, 2/0, Flex, Tin Plt Copper, One 0.31" Stud, PK10

PANDUIT LCAX2/0-56-X COPPER CO

PANLCAX2056X LCAX2/0-56-X 74983435364
8.31 / EA
http://schema.org/OutOfStock

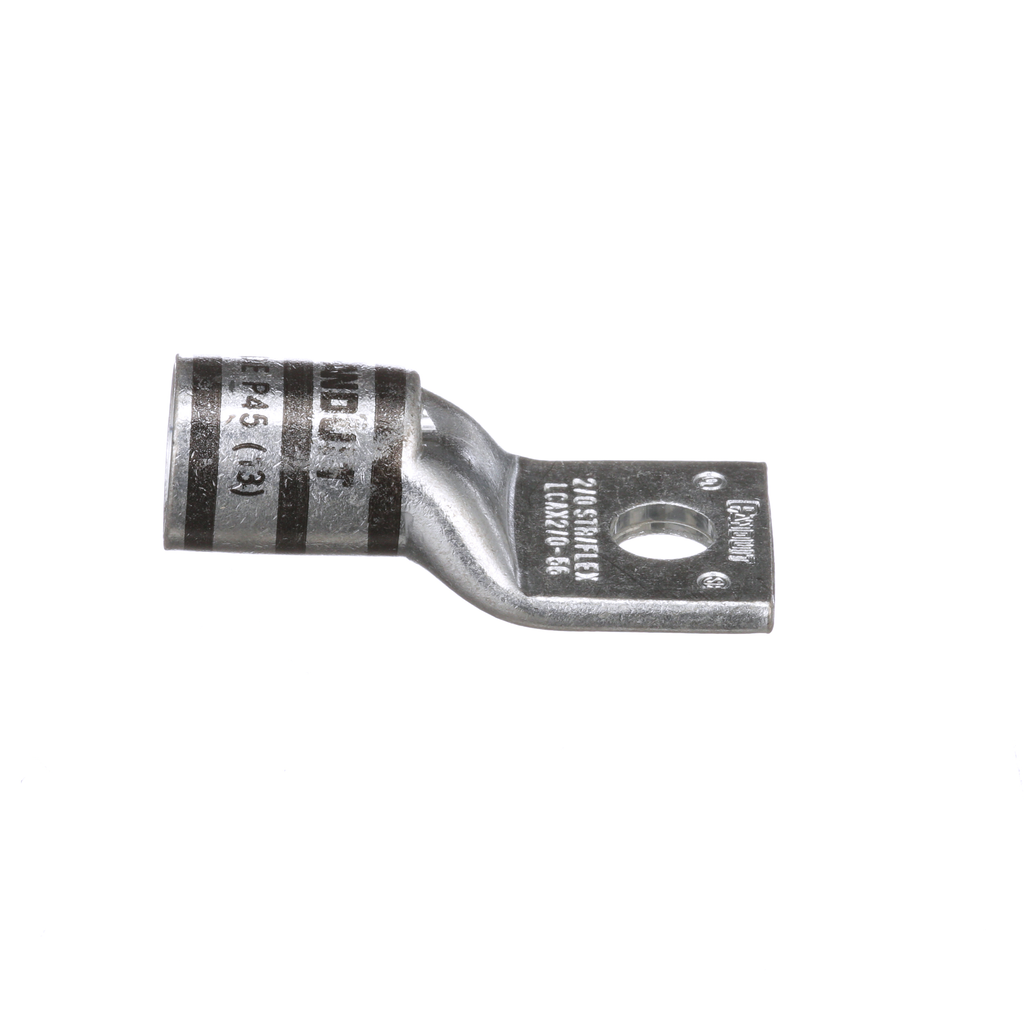

Mayer-DDS-Pan-Lug™ LCAX2/0-56-X Comp. Lug, 2/0, Flex, Tin Plt Copper, One 0.31" Stud, PK10-2
  • Barrel Length: 0.83 in, 21.1 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Overall Length: 1.97 in, 50 mm
  • Tongue Thickness: 0.13 in, 3.3 mm
  • Tongue Type: Standard
  • Tongue Width: 0.96 in, 24.4 mm
  • Type: Compression Lug
The LCAX2/0-56-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
QTY
  • Product Description
  • Specifications
The LCAX2/0-56-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
  • Specifications
    • Product Segment : IEI
    • Product Type : Compression Lug
    • Base Material : Copper
    • Number of Stud Holes : 1
    • Barrel Type : Standard
    • Barrel Entry : Beveled
    • Tongue Type : Standard
    • Tongue Angle : Straight
    • Inspection Window : Yes
    • Finish/Coating : Tin-Plated
    • Stud Hole Size (mm) : 7.9
    • Stud Hole Size (In.) : 5/16
    • Stud Hole Spacing (mm) : 0
    • Copper Code Conductor Size (AWG) : 2/0
    • Class G Copper Flex Conductor Size (AWG) : 2/0
    • Class H Copper Flex Conductor Size (AWG) : 2/0
    • Class I Copper Flex Conductor Size (AWG) : 2/0
    • Class K Copper Flex Conductor Size (AWG) : 2/0
    • Class M Copper Flex Conductor Size (AWG) : 2/0
    • DLO Copper Flex Conductor Size (AWG) : 2/0
    • Barrel Length (mm) : 21.1
    • Barrel Length (In.) : 0.83
    • Tongue Width (In.) : 0.96
    • Tongue Width (mm) : 24.4
    • Tongue Thickness (In.) : 0.13
    • Tongue Thickness (mm) : 3.3
    • Overall Length (mm) : 50
    • Overall Length (In.) : 1.97
    • Standards Met : C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
    • CSA Temperature Rating (°C) : 90
    • UL Temperature Rating (°C) : 90
    • Maximum Voltage (kV) : 35
    • Color Code : Black
    • Panduit Die Index Number : P45
    • Burndy Die Index Number : 13
    • T & B Die Index Number : 45
    • Wire Strip Length (In.) : 7/8
    • Wire Strip Length (mm) : 22.2
    • Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
    • Sub Brand : Pan-Lug™
  • Packaging Details
    • UPC : 07498343536
    • GTIN Package : 00074983435364
    • Standard Package Volume Ft3 : 0.0328
    • Standard Package Weight Pounds : 0.8110
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 4.7
    • Std Package Length MM : 119.38
    • Std Package Width In : 3.35
    • Std Package Width MM : 85.09
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983435364
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
