Pan-Lug™ SCL8-L Compression Connectors - Splices

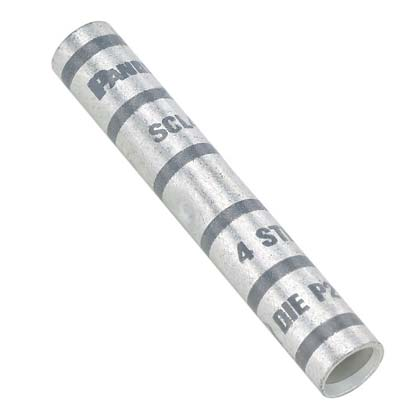

BUTT SPLICE LONG #8

PANSCL8L SCL8-L 074983904266
2.82 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ SCL8-L Compression Connectors - Splices-1
  • Country of Origin: Mexico
  • Material: Copper
  • Overall Length: 2.25 in, 57.2 mm
  • Type: Compression Splice
Copper butt splice, long barrel, #8 AWG wire.
QTY
  • Product Description
  • Specifications
Copper butt splice, long barrel, #8 AWG wire.
  • Packaging Details
    • UPC : 07498390426
    • GTIN Package : 00074983904266
    • Standard Package Volume Ft3 : 0.0328
    • Standard Package Weight Pounds : 1.2400
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 4.65
    • Std Package Length MM : 118.11
    • Std Package Width In : 3.35
    • Std Package Width MM : 85.09
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 50
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983904266
    • REACH Status : False
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 1
  • Specifications
    • Product Segment : IEI
    • Product Type : Compression Splice
    • Sub Brand : Pan-Lug™
    • Copper Code Conductor Size (AWG) : #8
    • Barrel Type : Long
    • Maximum Voltage (kV) : 35
    • Base Material : Copper
    • Standards Met : UL Listed for Power and Grounding Applications in the U.S. and Canada; Meets UL467 Requirements for Grounding
    • Finish/Coating : Tin-Plated
    • Color Code : Red
    • Burndy Die Index Number : 49
    • Panduit Die Index Number : P21
    • Overall Length (mm) : 57.2
    • Overall Length (In.) : 2.25
    • Wire Strip Length (mm) : 27
    • Wire Strip Length (In.) : 1 1/16
    • UL Temperature Rating (°C) : 90
    • CSA Temperature Rating (°C) : 90
